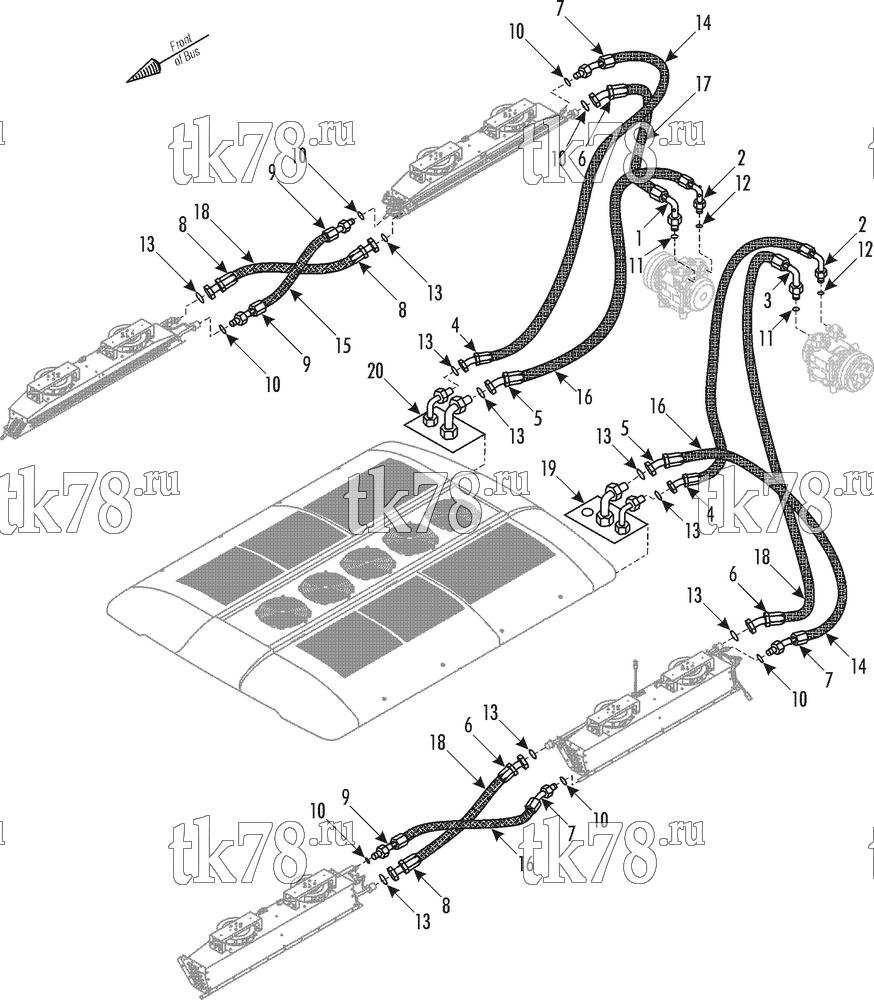

Установкa Thermo King HRT-II W Split R134a схема INSTALLATION COMPONENTS – 175C6
Обновление от: 5/1/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9779 | FITTING - suction (#16, 45 deg) | 1 | |
| 2 | 55-9782 | FITTING - discharge (#12, 90 deg) | 2 | |
| 3 | 55-9780 | FITTING - suction (#16, 90 deg) | 1 | |
| 4 | 55-9807 | FITTING - liquid (#10, 45 deg) | 2 | |
| 5 | 55-9777 | FITTING - discharge (#12, 45 deg) | 2 | |
| 6 | 55-9772 | FITTING - suction (#16, 45 deg) | 3 | |
| 7 | 55-9805 | FITTING - discharge (#10, 45 deg) | 3 | |
| 8 | 55-9769 | FITTING - suction (#16, straight) | 3 | |
| 9 | 55-9783 | FITTING - discharge (#10, straight) | 3 | |
| 10 | 33-2846 | O-RING - evaporator | 7 | |
| 11 | 33-2847 | O-RING - compressor | 3 | |
| 12 | 33-2848 | O-RING - compressor | 3 | |
| 13 | 33-566 | O-RING - evaporator | 9 | |
| 14 | 61-1087 | HOSE - liquid (9 m) | A/R | |
| 15 | 61-1646 | HOSE - discharge (2 m) | A/R | |
| 16 | 61-1647 | HOSE - discharge (9 m) | A/R | |
| 17 | 61-1648 | HOSE - suction (10 m) | A/R | |
| 18 | 61-1084 | HOSE - suction (9 m) | A/R | |
| 19 | 61-1649 | TUBE - assembly (roadside) | 1 | |
| 20 | 61-1650 | TUBE - assembly (curbside) | 1 |
