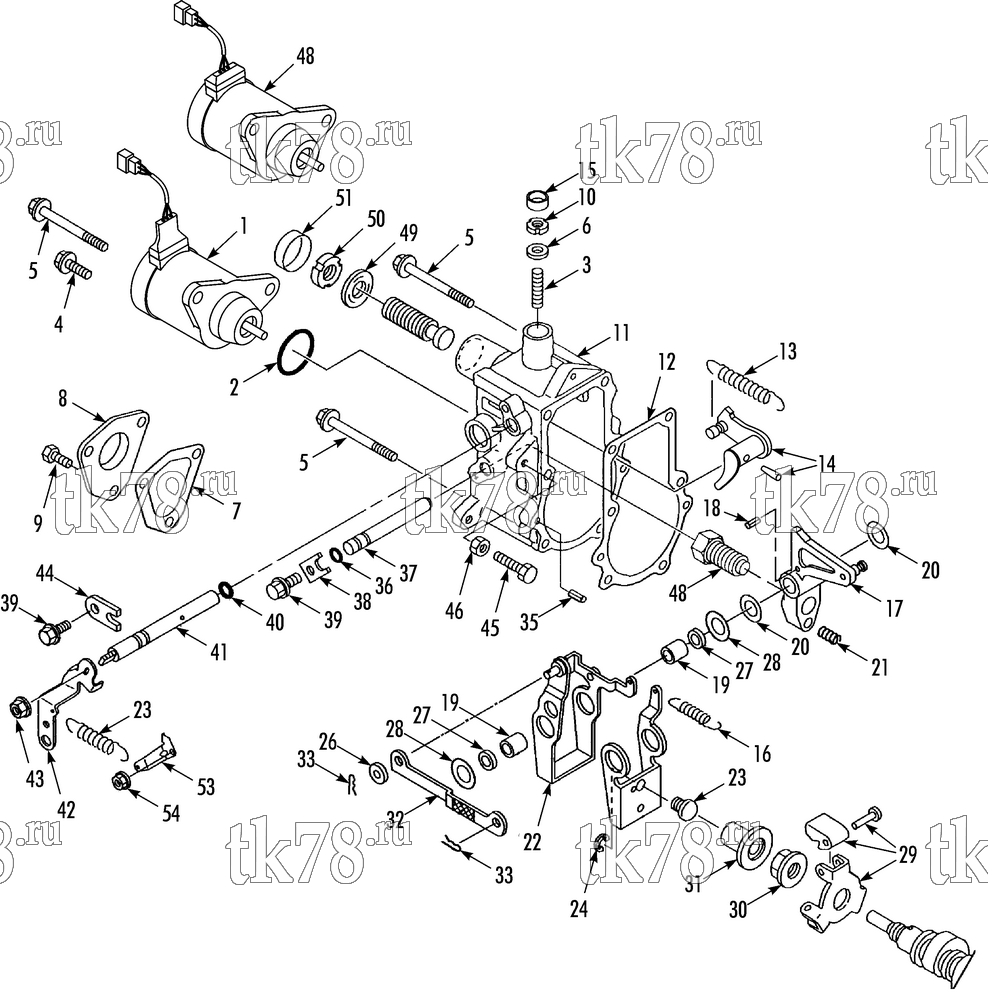

Установкa Thermo King HK-III 30, HK-III HO & Fresh King w/2.49 Engine схема GOVERNOR – 132F9
Обновление от: 8/16/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-100 | SOLENOID - fuel stop | 1 | |
|
10-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 8 670 ₽ |
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 2 000 ₽ |
|
| 2 | 33-2230 | O-RING - solenoid | 1 | |
|
10-33-2230 | Уплотнительное кольцо соленоида отсечки топлива | 490 ₽ |
|
| 3 | 55-5843 | SCREW - adjust | 1 | |
| 4 | 55-8623 | SCREW - solenoid | 1 | |
| 5 | 55-5836 | SCREW - housing (70 mm lg) | 5 | |
| 55-7155 | SCREW - housing (95 mm lg) | 1 | ||
| 6 | 55-5845 | WASHER - seal | 1 | |
| 7 | 33-1751 | GASKET - cover | 1 | |
| 8 | 11-6116 | COVER - housing | 1 | |
| 9 | 55-5837 | SCREW - cover | 3 | |
| 10 | 55-8619 | NUT - adjust (high idle) | 1 | |
| 11 | 11-8762 | HOUSING - governor | 1 | |
| 12 | 33-1750 | GASKET - housing | 1 | |
| 13 | 11-6128 | SPRING - regulator | 1 | |
| 14 | 11-7520 | SHAFT - regulator (incl 41) | 1 | |
| 15 | 55-8624 | PLUG (14 mm) | 1 | |
| 16 | 11-8763 | SPRING | 1 | |
| 17 | 11-8895 | LEVER - governor (incl 18 thru 26) | 1 | |
| 18 | 55-6540 | PIN | 1 | |
| 19 | NSS | BEARING | 1 | |
| 20 | 11-5139 | SHIM SET - plunger | 2 | |
| 21 | 11-6167 | SPRING - starting | 1 | |
| 22 | NSS | LEVER - governor | 1 | |
| 23 | 11-8764 | SHIFTER | 1 | |
| 24 | 55-6273 | CIRCLIP | 1 | |
| 25 | NSS | PIN | 1 | |
| 26 | 55-6538 | WASHER | 1 | |
| 27 | 55-5838 | SPACER | 2 | |
| 28 | 11-6121 | SHIM PACK - lever | 1 | |
| 29 | 11-6117 | WEIGHT - governor | 1 | |
| 30 | 55-5833 | NUT - governor support | 1 | |
| 31 | 11-6118 | SLEEVE | 1 | |
| 32 | 11-7518 | LINK - governor (no color) | 1 | |
| 11-8760 | LINK - governor (white) | 1 | ||
| 11-8761 | LINK - governor (red) | 1 | ||
| 33 | 55-5835 | PIN - clip | 1 | |
| 34 | 55-5832 | PIN - clip | 1 | |
| 35 | 55-5834 | PIN - dowel | 2 | |
| 36 | 33-1753 | O-RING - shaft | 1 | |
| 37 | 11-6122 | SHAFT - governor | 1 | |
| 38 | 11-6125 | RETAINER | 1 | |
| 39 | 55-5822 | SCREW - retainer | 2 | |
| 40 | 33-1752 | O-RING | 1 | |
| 41 | NSS | REGULATOR (part of item 14) | 1 | |
| 42 | 91-8510 | LINK - throttle | 1 | |
| 43 | 55-5791 | NUT - handle | 1 | |
| 44 | 11-6124 | RETAINER | 1 | |
| 45 | 55-6199 | SCREW | 1 | |
| 46 | 55-5846 | NUT | 1 | |
| 47 | 11-8807 | LIMITER - fuel | 1 | |
| 48 | 42-388 | SOLENOID - fuel stop (w/o protection) | 1 | |
| 49 | 55-8620 | WASHER - sealing | 1 | |
| 50 | 55-8618 | NUT - adjust | 1 | |
| 51 | 55-8625 | PLUG (22 mm) | 1 | |
| 52 | 11-6497 | SPRING | 1 | |
| 53 | 11-6498 | BRACKET - return spring | 1 | |
| 54 | 55-5791 | LOCKNUT | 1 | |
| 30-237 | GASKET SET - engine overhaul | 1 | ||
|
10-30-237 | Набор прокладок, Yanmar 249 | 27 490 ₽ |
|
