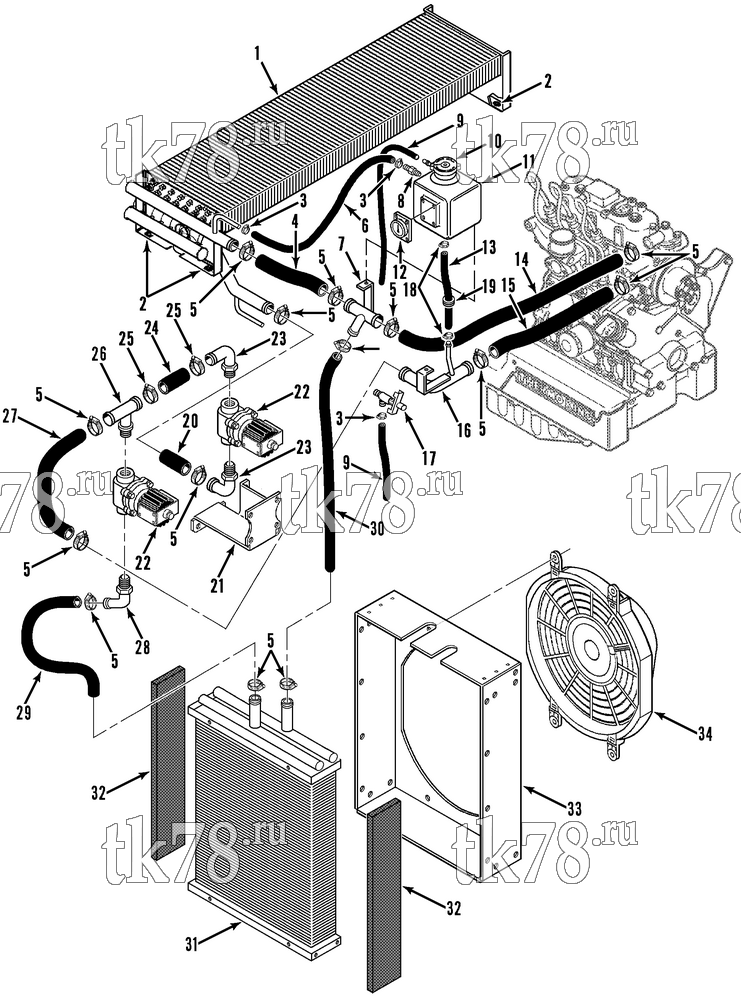

Установкa Thermo King HK-III 30, HK-III HO & Fresh King w/2.49 Engine схема ENGINE COOLING SYSTEM (FRESH KING) – 124B1
Обновление от: 12/17/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-897 | RADIATOR - coil | 1 | |
| 2 | 55-3059 | NUT - captive | 4 | |
| 55-1587 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 55-6726 | CLAMP - hose (EPDM) | 4 | |
| 55-5074 | CLAMP - hose (silicone) | 4 | ||
| 4 | 11-8463 | HOSE - radiator (EPDM) | 1 | |
| 11-8464 | HOSE - radiator (silicone) | 1 | ||
| 5 | 55-2818 | CLAMP - hose (EPDM) | 10 | |
| 55-5400 | CLAMP - hose (silicone) | 10 | ||
| 6 | 11-8041 | HOSE - radiator to tank (EPDM) | A/R | |
| 12-538 | HOSE - radiator to tank (silicone) | A/R | ||
| 7 | 11-8465 | TUBE - hose support | 1 | |
| 8 | 55-5963 | FITTING - barb | 1 | |
| 9 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 10 | 11-9242 | CAP - overflow tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 11 | 12-489 | TANK - overflow | 1 | |
| 55-1587 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 12 | 11-6170 | GAUGE - liquid level | 1 | |
| 33-1433 | GASKET - gauge | 1 | ||
| 11-6171 | DIAL - gauge | 1 | ||
| 55-7523 | SCREW - gauge | 4 | ||
| 13 | 12-383 | HOSE - overflow to tube (0.50 id, 25 ft) | A/R | |
| 14 | 11-8068 | HOSE - engine out (EPDM) | 1 | |
| 11-8466 | HOSE - engine out (silicone) | 1 | ||
| 15 | 11-8070 | HOSE - engine inlet (EPDM) | 1 | |
| 11-8467 | HOSE - engine inlet (silicone) | 1 | ||
| 16 | 11-8071 | TUBE - tee (radiator to engine) | 1 | |
| 55-1587 | SCREW - tube | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 1 | ||
| 17 | 55-4957 | DRAIN COCK | 1 | |
| 18 | 55-5074 | CLAMP - tube | 3 | |
| 19 | 33-1809 | GROMMET (1/2 id) | 1 | |
| 20 | 11-8468 | HOSE - radiator (EPDM) | 1 | |
| 11-3945 | HOSE - radiator (silicone) | 1 | ||
| 21 | 91-6477 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-7767 | INSERT | 3 | ||
| 22 | 41-7598 | VALVE - solenoid (12V, see 147A1) | 2 | |
| 55-2977 | SCREW - valve | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 23 | 11-7990 | FITTING - hose | 2 | |
| 24 | 11-7988 | HOSE | A/R | |
| 25 | 55-5400 | CLAMP - hose | 2 | |
| 26 | 11-7991 | FITTING - tee | 1 | |
| 27 | 11-8469 | HOSE - tee to radiator (EPDM) | 1 | |
| 11-8470 | HOSE - tee to radiator (silicone) | 1 | ||
| 28 | 11-8471 | FITTING - hose | 1 | |
| 29 | 11-8472 | HOSE - valve to tank (EPDM) | 1 | |
| 11-8473 | HOSE - valve to tank (silicone) | 1 | ||
| 30 | 11-8469 | HOSE - radiator (EPDM) | 1 | |
| 12-383 | HOSE - radiator (silicone) | 1 | ||
| 31 | 12-694 | RADIATOR - auxiliary | 1 | |
| 32 | 91-6478 | INSULATION | 2 | |
| 33 | 98-4728 | PLENUM - radiator | 1 | |
| 55-3018 | SCREW - plenum | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 34 | 45-1622 | FAN - radiator | 1 | |
| 55-2977 | SCREW - fan | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-2957 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-7767 | INSERT | 3 |
