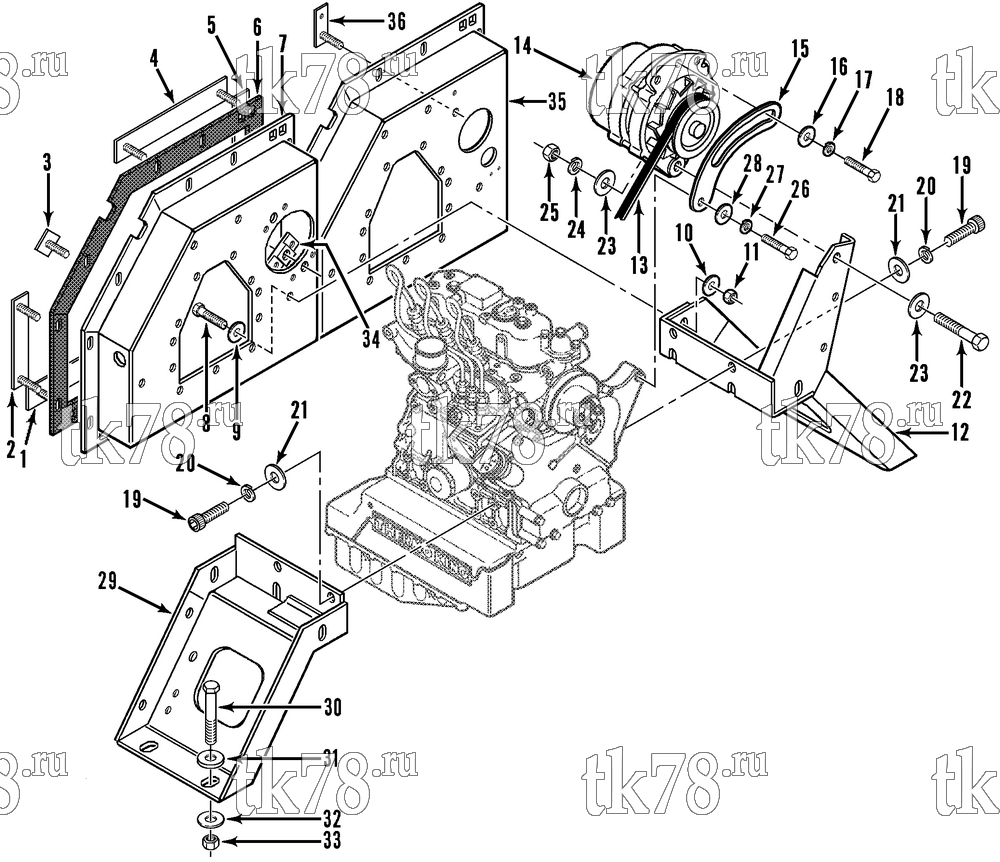

Установкa Thermo King HK-III 30, HK-III HO & Fresh King w/2.49 Engine схема ENGINE & ALTERNATOR MOUNTING – 120D5
Обновление от: 12/8/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5833 | BOLTSTRIP (lower) | 1 | |
| 2 | 91-5830 | BOLTSTRIP (vertical) | 1 | |
| 3 | 91-5829 | BOLTSTRIP | 1 | |
| 4 | 91-5831 | BOLTSTRIP (top) | 1 | |
| 5 | 91-5832 | BOLTSTRIP (vertical) | 1 | |
| 6 | 33-2527 | GASKET - flywheel housing (side & bottom) | 1 | |
| 33-2528 | GASKET - flywheel housing (side & top) | 1 | ||
| 7 | N/A | HOUSING - flywheel (use item 35) | 1 | |
| 8 | 55-3641 | SCREW - bracket | 1 | |
| 9 | 55-402 | FLATWASHER | 2 | |
| 10 | 55-4931 | WASHER - spacer | 1 | |
| 11 | 55-5078 | NUT | 1 | |
| 12 | 91-8406 | BRACKET - engine (roadside) | 1 | |
| 13 | 78-1103 | BELT - alternator | 1 | |
| 14 | 41-2195 | ALTERNATOR (37 amp, see 144c4) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 15 | 99-9768 | BRACKET - alternator adjusting arm | 1 | |
| 16 | 55-371 | FLATWASHER | 1 | |
| 17 | 55-790 | LOCKWASHER | 1 | |
| 18 | 55-2969 | SCREW - alternator adjusting | 1 | |
| 19 | 55-6216 | SCREW - bracket to engine (M10 x 1.5-2.0) | 6 | |
| 55-5957 | SCREW - bracket to engine (M10 x 1.5-2.5) | 2 | ||
| 20 | 55-5620 | LOCKWASHER | 8 | |
| 21 | 55-7122 | FLATWASHER | 8 | |
| 22 | 55-5410 | SCREW - alternator | 1 | |
| 23 | 55-2038 | FLATWASHER | 4 | |
| 24 | 55-365 | LOCKWASHER | 1 | |
| 25 | 55-287 | NUT | 1 | |
| 26 | 55-7022 | SCREW - alternator | 1 | |
| 27 | 55-790 | LOCKWASHER | 1 | |
| 28 | 55-371 | FLATWASHER | 1 | |
| 29 | 91-8407 | BRACKET - engine (curbside) | 1 | |
| 30 | 55-2976 | SCREW - power tray | 4 | |
| 31 | 55-7769 | WASHER - special | 8 | |
| 32 | 55-2173 | FLATWASHER | 4 | |
| 33 | 55-4952 | NUT | 4 | |
| 34 | 99-8032 | NUTSTRIP - starter | 2 | |
| 35 | 11-8689 | HOUSING - flywheel | 1 | |
| 36 | 91-7015 | BOLTSTRIP - starter | 1 | |
| 55-5751 | FLATWASHER | 1 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 55-2640 | NUT | 1 | ||
| 55-3136 | RIVET - blind | 1 |
