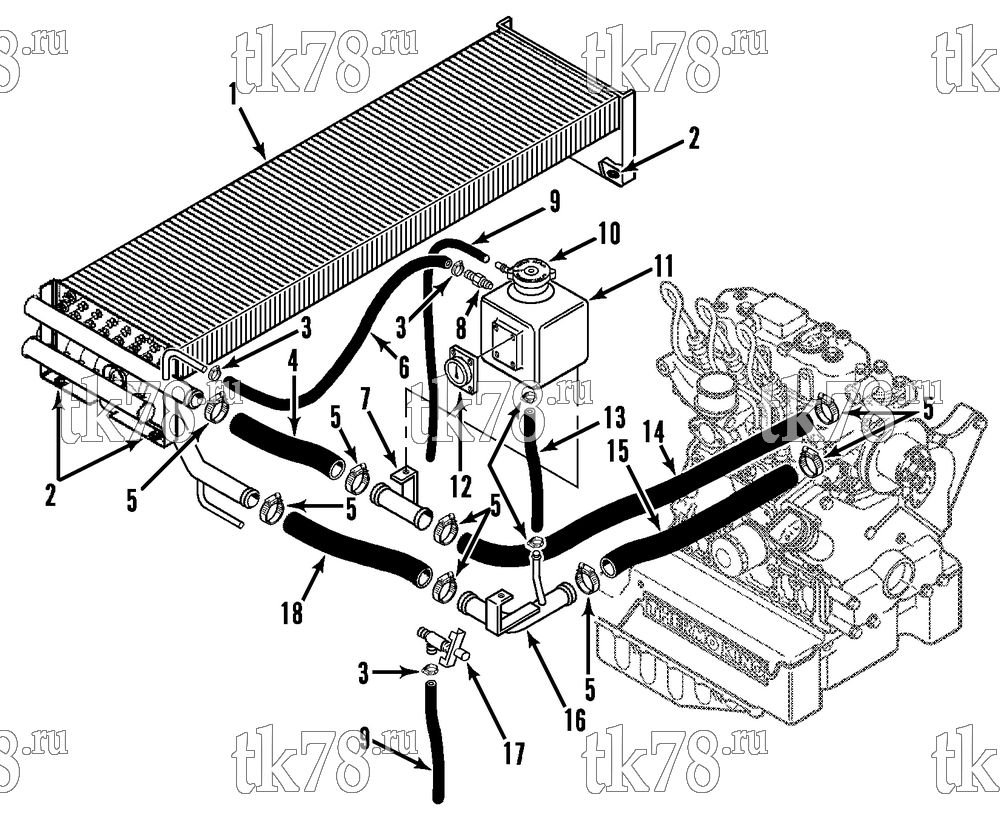

Установкa Thermo King HK-III 30, HK-III HO & Fresh King w/2.49 Engine схема ENGINE COOLING SYSTEM (HK-III 30) – 120D4
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-897 | COIL - radiator | 1 | |
| 2 | 55-3059 | NUT - captive | 4 | |
| 55-2957 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 55-2069 | CLAMP - hose | 4 | |
| 4 | 11-8463 | HOSE - radiator (EPDM) | 1 | |
| 11-8464 | HOSE - radiator (silicone) | 1 | ||
| 5 | 55-2818 | CLAMP - hose (EPDM) | 1 | |
| 55-5400 | CLAMP - hose (silicone) | 1 | ||
| 6 | 11-8041 | HOSE - radiator to tank (EPDM) | 1 | |
| 12-538 | HOSE - radiator to tank (silicone) | 1 | ||
| 7 | 11-8064 | TUBE - hose support | 1 | |
| 8 | 55-5963 | FITTING - barb | 1 | |
| 9 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 10 | 11-9242 | CAP - overflow tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 11 | 12-489 | TANK - overflow | 1 | |
| 55-1587 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 12 | 11-6170 | GAUGE - liquid level | 1 | |
| 33-1433 | GASKET - gauge | 1 | ||
| 11-6171 | DIAL - gauge | 1 | ||
| 55-7523 | SCREW - gauge | 4 | ||
| 13 | 98-2527 | HOSE - overflow to tube (0.75 id x 25ft) | A/R | |
| 14 | 11-8068 | HOSE - engine out (EPDM) | 1 | |
| 11-8466 | HOSE - engine out (silicone) | 1 | ||
| 15 | 11-8070 | HOSE - engine inlet (EPDM) | 1 | |
| 11-8467 | HOSE - engine inlet (silicone) | 1 | ||
| 16 | 11-8071 | TUBE - tee (radiator to engine) | 1 | |
| 55-1587 | SCREW - tube | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1801 | NUT | 1 | ||
| 17 | 55-4957 | DRAIN COCK | 1 | |
| 18 | 11-8069 | HOSE - radiator to tube (EPDM) | 1 | |
| 11-8828 | HOSE - radiator to tee (silicone) | 1 |
