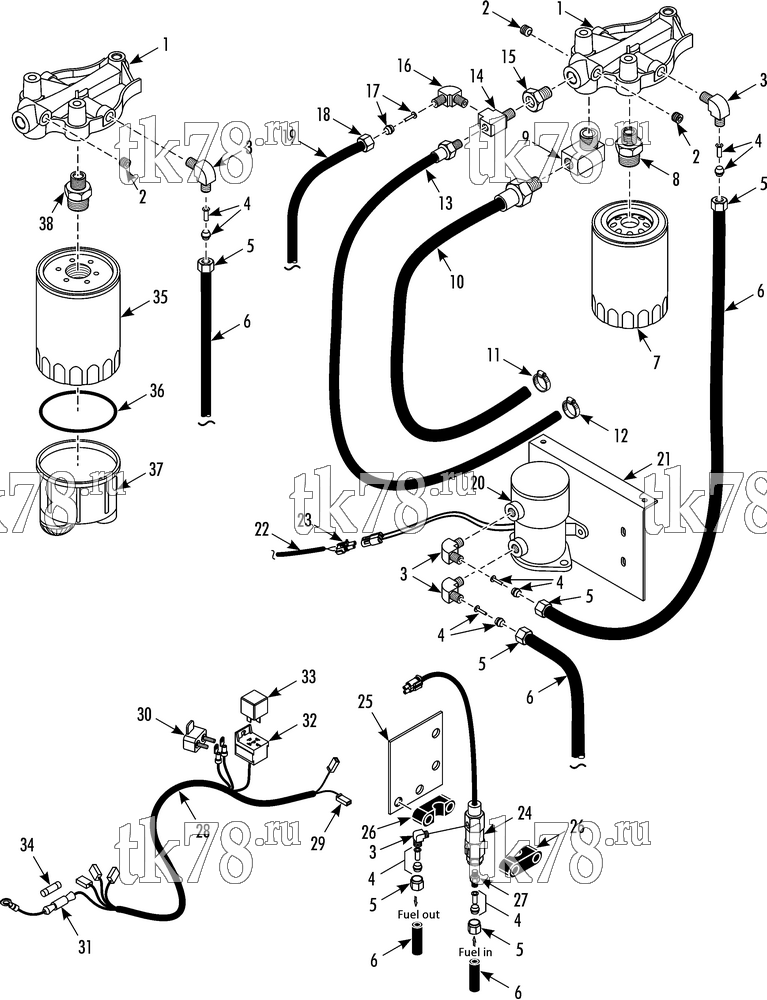

Установкa Thermo King HK-III 30, HK-III HO & Fresh King w/2.49 Engine схема FUEL FILTER, HOSES & PUMP – 120D1
Обновление от: 11/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6529 | BRACKET - filter | 1 | |
| 55-2962 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 2 | 55-433 | PLUG - pipe | 2 | |
| 3 | 11-4380 | ELBOW (3/8) | 3 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 4 | 10-242 | KIT - sleeve & eyelet (3/8) | 3 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 5 | 11-4941 | NUT - hose (3/8) | 3 | |
| 6 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 7 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 8 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 9 | 55-4244 | ELBOW | 1 | |
| 10 | 11-7013 | HOSE | 1 | |
| 11 | 55-2069 | CLAMP - hose | 1 | |
| 12 | 55-2796 | CLAMP - hose | 1 | |
| 13 | 11-5270 | HOSE | 1 | |
| 14 | 55-665 | TEE | 1 | |
| 15 | 55-4799 | BUSHING | 1 | |
| 16 | 11-5320 | ELBOW (1/4) | 1 | |
| 17 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 18 | 11-4841 | NUT - hose (1/4) | 1 | |
| 19 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 20 | 41-2640 | PUMP - fuel | 1 | |
| 10-273 | KIT - filter (replacement) | 1 | ||
| 21 | 92-5656 | BRACKET - fuel pump | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 22 | 41-857 | HARNESS - fuel pump | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 23 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 24 | 40-1016 | HEATER - fuel (optional) | 1 | |
| 25 | 92-7631 | PLATE - heater | 1 | |
| 26 | 92-315 | CLAMP - heater | 2 | |
| 55-5677 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 27 | 55-4515 | CONNECTOR (3/8) | 1 | |
| 28 | 41-1654 | HARNESS - fuel heater | 1 | |
| 29 | 44-6381 | CONNECTOR - electric (1-pin, female) | 1 | |
| 30 | 44-6145 | BREAKER - circuit (20 amp) | 1 | |
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 55-2965 | NUT - breaker | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 31 | 41-1276 | HOLDER - fuse | 1 | |
| 32 | 44-5537 | SOCKET - relay | 1 | |
| 55-3623 | SCREW - socket & breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 33 | 41-895 | RELAY - mini | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 34 | 44-2590 | FUSE (10 amp) | 1 | |
| 35 | 11-5948 | FILTER - fuel (primary, optional) | 1 | |
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 11-5947 | ELEMENT - fuel filter | 1 | ||
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 36 | 33-1687 | O-RING - bowl | 1 | |
| 37 | 11-8827 | BOWL - fuel filter | 1 | |
| 38 | 55-3403 | ADAPTER - fuel pickup | 1 |
