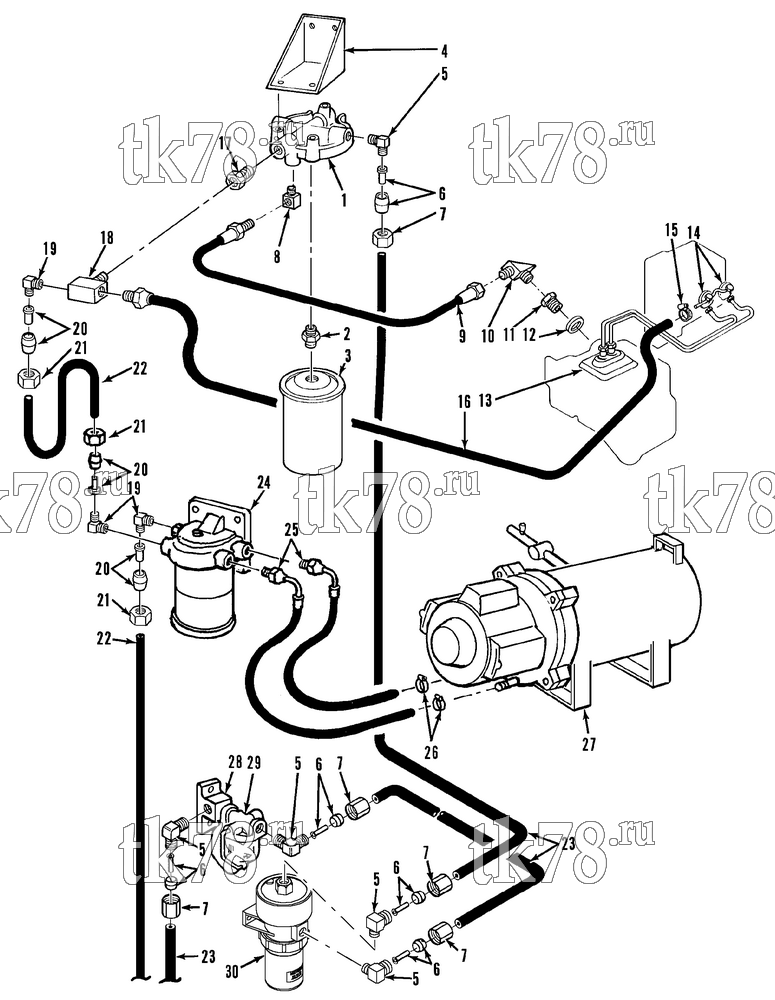

Установкa Thermo King HK & HK-II SERIES схема FUEL SYSTEM (HK, HK-II 60 & 100) – 81E5
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6529 | BRACKET - filter | 1 | |
| 55-2962 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 2 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 3 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 4 | 99-8196 | BRACKET - filter (HK) | 1 | |
| 91-3490 | BRACKET - filter (HK-II) | 1 | ||
| 99-8187 | BOLTSTRIP - bracket | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-4955 | NUT | 2 | ||
| 5 | 11-4380 | ELBOW - fuel inlet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 7 | 11-4941 | NUT (3/8) | 1 | |
| 8 | 55-4244 | ELBOW | 1 | |
| 9 | 11-5233 | HOSE - filter to injection pump | 1 | |
| 10 | 55-4314 | ELBOW - fuel inlet | 1 | |
| 11 | 11-5222 | ADAPTER - bushing | 1 | |
| 12 | 33-1531 | GASKET | 1 | |
| 13 | 11-6265 | PUMP - fuel injection (see 79A10) | 1 | |
| 14 | 11-6100 | NOZZLE - fuel injection valve (see 76B12) | 2 | |
|
10-11-6100 | Форсунка, Yanmar 366, 388 | 21 530 ₽ |
|
| 15 | 55-2069 | CLAMP | 1 | |
| 16 | 11-5270 | HOSE - fuel return | 1 | |
| 17 | 55-4799 | ADAPTER - fuel | 1 | |
| 18 | 55-665 | TEE | 1 | |
| 19 | 11-5320 | ELBOW - fuel return (1/4) | 2 | |
| 20 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 21 | 11-4841 | NUT (1/4) | 1 | |
| 22 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 23 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 24 | 11-4930 | FILTER - sedimenter (see 119C11) | 1 | |
| 55-3095 | SCREW - sedimenter | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 25 | 11-6472 | HOSE - fuel | 2 | |
| 55-4532 | ADAPTER - hose | 2 | ||
| 55-2533 | COUPLING | 2 | ||
| 55-2528 | GASKET | 4 | ||
| 26 | 55-2069 | CLAMP - hose | 1 | |
| 27 | 81-105 | BOILER (HK 60, see 81E11) | 1 | |
| 81-104 | BOILER (HK 100, see 84D2) | 1 | ||
| 28 | 55-4496 | ELBOW | 1 | |
| 55-4512 | NIPPLE | 1 | ||
| 29 | 11-6180 | PREFILTER | 1 | |
| 10-299 | KIT - bowl & filter (glass) | 1 | ||
| 11-4957 | BAIL - filter | 1 | ||
| 11-4958 | NUT - bail | 1 | ||
| 11-4956 | HEAD - filter | 1 | ||
| 33-2464 | GASKET | 1 | ||
| 11-4880 | ELEMENT - filter | 1 | ||
| 30 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 91-8860 | NAMEPLATE - Clean Fuel Pump | 1 |
