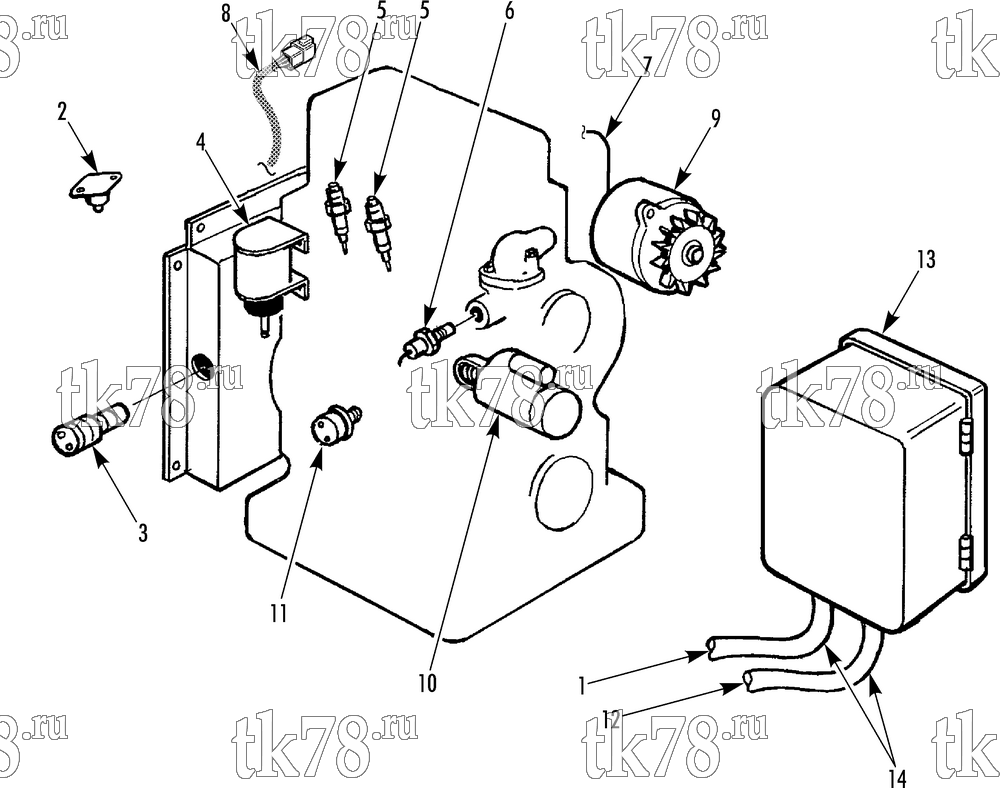

Установкa Thermo King HK & HK-II SERIES схема ELECTRIC COMPONENTS (HK & HK-II 30) – 79D9
Обновление от: 3/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5236 | SENSOR - thermostat | 2 | |
| 2 | 44-7430 | SWITCH - thermostat termination | 1 | |
| 84-420 | THERMOSTAT - cool down (termination, HK-II 30 CA) | 1 | ||
| 55-2991 | SCREW - switch | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 3 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 99-9771 | BRACKET - sensor | 1 | ||
| 4 | 44-6848 | SOLENOID - throttle (see 79D8) | 1 | |
| 5 | 41-6582 | GLOW PLUG (see 79D11) | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| 6 | 44-3018 | SWITCH - coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 7 | 44-7435 | HARNESS - alternator | 1 | |
| 8 | 41-780 | HARNESS - fuel solenoid interface (w/ TG V) | 1 | |
| 9 | 41-2195 | ALTERNATOR (37 amp, model EA, see 78A9, model 8MR) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 10 | 45-1335 | STARTER (see 79F5) | 1 | |
| US-45-1335 | Стартер, Yanmar 244 | 57 980 ₽ |
|
|
| 10-45-1335 | Стартер | 27 960 ₽ |
|
|
| 11 | 44-4774 | SWITCH - oil pressure (see 79A1) | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 12 | 44-7424 | HARNESS - main | 1 | |
| 41-375 | HARNESS - main (HK-II 30 Constant Air) | 1 | ||
| 13 | 90-184 | BOX - control (HK 30) | 1 | |
| 91-3633 | BOX - control (HK-II 30) | 1 | ||
| 91-5870 | BOX (HK-II w/TG V, see 120D10) | 1 | ||
| 14 | 99-9818 | HOSE - harness | 1 |
