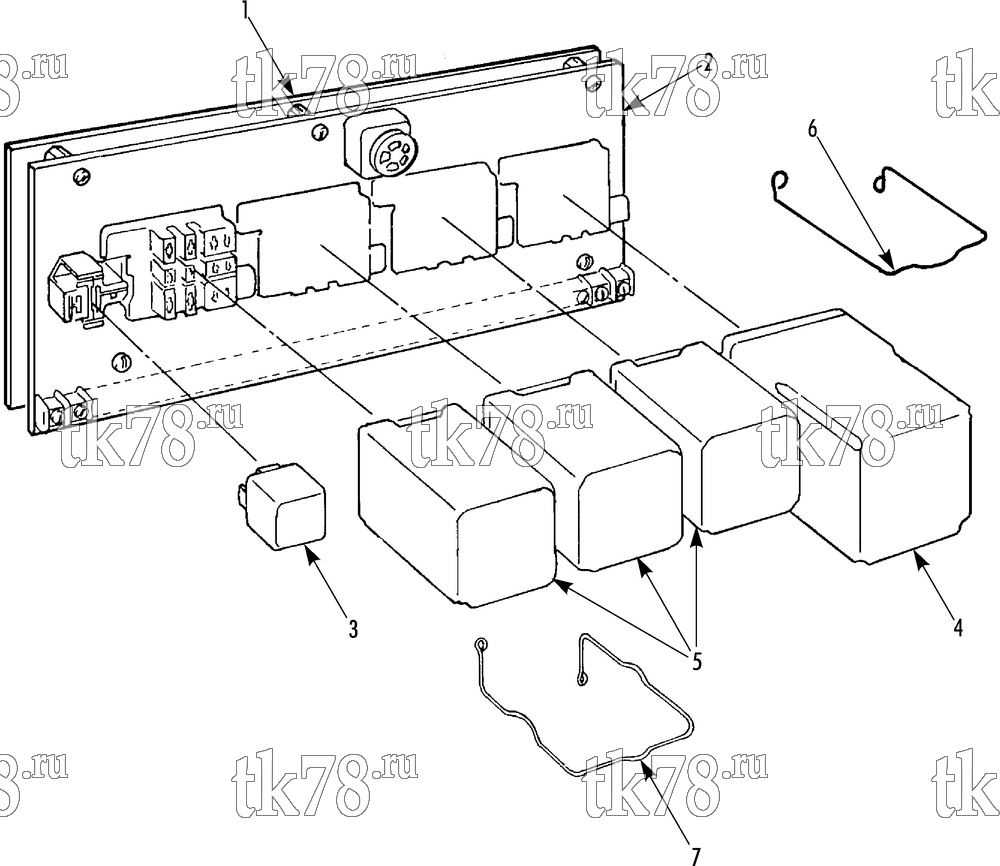

Установкa Thermo King HK & HK-II SERIES схема CYCLE SENTRY II BOARD – 79D12
Обновление от: 3/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7246 | BOARD - Cycle Sentry | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 2 | 55-5407 | SCREW - plate to board | 7 | |
| 3 | 44-7263 | RELAY - Battery Sentry (solid state) | 1 | |
|
10-44-7263 | Реле, Sentry | 7 100 ₽ |
|
| 4 | 44-7192 | SWITCH - Cycle Sentry module | 1 | |
|
10-44-7192 | Выключатель стартера | 19 780 ₽ |
|
| 5 | 44-3186 | RELAY - plug-in (run, start, pre-heat) | 3 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 6 | 99-8475 | HOLDDOWN - module | 1 | |
| 7 | 99-2027 | SPRING - holddown (relay) | 3 | |
| 55-2771 | CLAMP - speednut | 4 | ||
| 55-2270 | RIVET | 8 |
