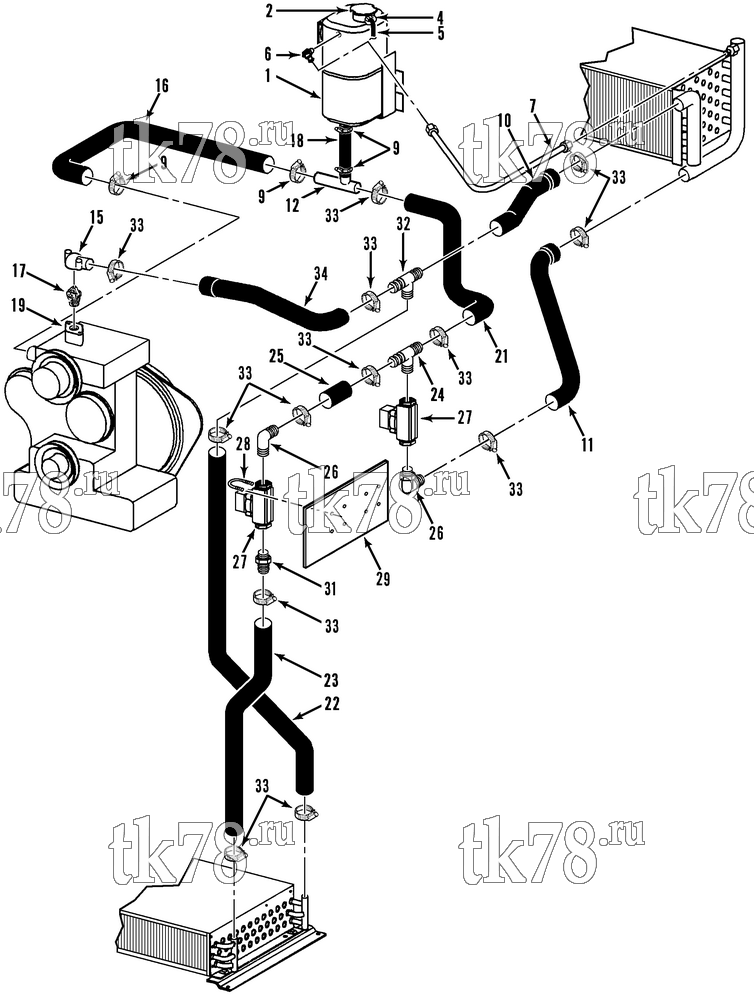

Установкa Thermo King HK & HK-II SERIES схема COOLING SYSTEM (HK-II 30 CONSTANT AIR) – 116E6
Обновление от: 3/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9622 | TANK - overflow | 1 | |
| 2 | 11-9242 | CAP - radiator | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 3 | 55-5921 | CLAMP - tank | 2 | |
| 4 | 55-2069 | CLAMP - hose | 1 | |
| 5 | 98-771 | HOSE - overflow (90 in) | A/R | |
| 33-1809 | GROMMET (1/2 id) | 1 | ||
| 6 | 55-308 | ELBOW | 1 | |
| 7 | 11-6631 | TUBE (HK 30) | 1 | |
| 11-7522 | TUBE (HK-II 30) | 1 | ||
| 8 | 12-757 | RADIATOR | 1 | |
| 9 | 55-558 | CLAMP - hose | 8 | |
| 10 | 11-7004 | HOSE - pump to tee | A/R | |
| 11-6628 | HOSE - pump to radiator (silicone) | 1 | ||
| 11 | 11-7004 | HOSE | A/R | |
| 12 | 11-6282 | TEE - coolant | 1 | |
| 13 | 55-4957 | DRAIN COCK | 1 | |
| 14 | 13-506 | PUMP - water (see 79A6) | 1 | |
| 13-2262 OEM | Водяной насос, Yanmar 244 / 249 / 366 / 374 | 29 330 ₽ |
|
|
|
10-13-506 | Водяной насос, Yanmar 244 / 249 / 366 / 374 | 19 240 ₽ |
|
|
PP-13-506 | Водяной насос, Yanmar 244 / 249 / 366 / 374 | 15 380 ₽ |
|
| 15 | 11-6091 | HOUSING - thermostat (see 79A6) | 1 | |
| 55-6029 | SCREW - housing | 1 | ||
| 55-5788 | SCREW - housing | 1 | ||
| 16 | 11-6629 | HOSE - tee to pump | 1 | |
| 11-6642 | HOSE - tee to pump (silicone) | 1 | ||
| 17 | 11-7975 | THERMOSTAT | 1 | |
| 11-7975 OEM | Термостат, Yanmar 249 / 366 / 374, MD-XXX/KD/MD-II / TS-200/300 | 4 800 ₽ |
|
|
| 18 | 11-6281 | HOSE - expansion tank | 1 | |
| 12-419 | HOSE (3/4 id x 25 ft, silicone) | 1 | ||
| 19 | 11-6644 | SPACER - thermostat | 1 | |
| 33-1056 | O-RING - spacer | 1 | ||
| 20 | 33-1831 | PAD (rubber) | 1 | |
| 21 | 11-7004 | HOSE (silicone) | A/R | |
| 22 | 11-7004 | HOSE (silicone) | A/R | |
| 23 | 11-7004 | HOSE | A/R | |
| 24 | 11-7991 | FITTING | 1 | |
| 25 | 11-7988 | HOSE | 2 | |
| 26 | 11-7990 | FITTING | 2 | |
| 27 | 41-7598 | VALVE - solenoid (12V, see 147A1) | 4 | |
| 28 | 55-4397 | U-BOLT | 4 | |
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 29 | 91-5468 | PANEL - valve | 1 | |
| 30 | 55-558 | CLAMP | 2 | |
| 31 | 11-7989 | FITTING | 1 | |
| 32 | 11-8017 | FITTING | 1 | |
| 33 | 55-7401 | CLAMP | 12 | |
| 34 | 11-7004 | HOSE - tee to radiator | A/R |
