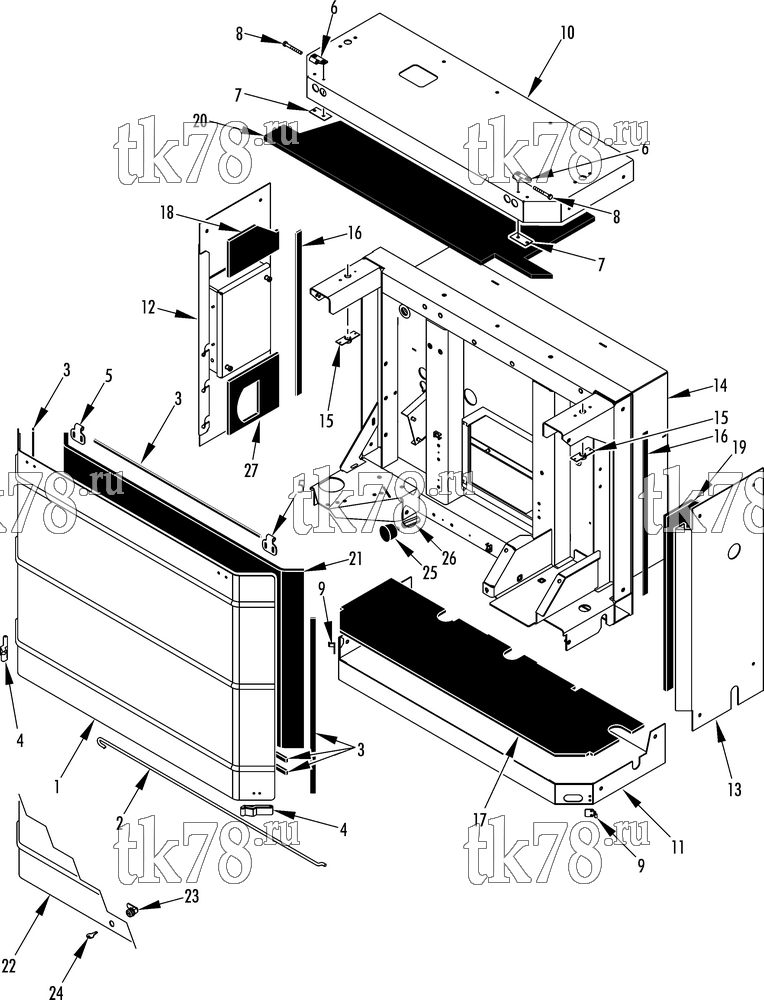

Установкa Thermo King HK-430 & HK-430 HO схема DOOR & FRAME GROUP – 256A6
Обновление от: 9/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7458 | DOOR - front | 1 | |
| 2 | 92-6196 | ROD - door support | 1 | |
| 3 | 99-7246 | STRIP - gasket | A/R | |
| 4 | 92-5646 | LATCH - door | 2 | |
| 51-2082 | SCREW - latch | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 5 | 92-5647 | HINGE - door | 2 | |
| 55-6536 | SCREW - hinge | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 6 | 92-5676 | HINGE - frame | 2 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 7 | 92-5648 | NUTSTRIP | 2 | |
| 8 | 51-1119 | SCREW - hinge pivot | 2 | |
| 55-7339 | NUT | 2 | ||
| 9 | 92-5645 | KEEPER - latch | 2 | |
| 51-2082 | SCREW - keeper | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 10 | 98-8802 | COVER - top | 1 | |
| 11 | 98-8803 | COVER - bottom | 1 | |
| 12 | 98-8801 | COVER - curbside | 1 | |
| 13 | 98-8804 | COVER - roadside | 1 | |
| 14 | 98-8805 | FRAME | 1 | |
| 55-8976 | INSERT - threaded (5/16-18) | 13 | ||
| 55-8711 | INSERT - threaded (1/4-20) | 7 | ||
| 15 | 91-1280 | NUTSTRIP | 2 | |
| 55-3010 | RIVET - nutstrip | 8 | ||
| 16 | 99-7336 | STRIP - gasket (side doors) | 2 | |
| 17 | 33-4267 | INSULATION - bottom | 1 | |
| 18 | 33-4839 | INSULATION - curbside (upper) | 1 | |
| 19 | 33-4264 | INSULATION - roadside | 1 | |
| 20 | 33-4837 | INSULATION - top | 1 | |
| 33-4838 | INSULATION - top (HK-430) | 1 | ||
| 21 | 33-4266 | INSULATION - door | 1 | |
| 22 | 98-7494 | DOOR - front (locking) | 1 | |
| 23 | 92-1164 | LOCK - door | 1 | |
| 24 | 91-537 | KEY | 1 | |
| 25 | 92-6969 | BUMPER - door | 1 | |
| 26 | 92-6970 | STANDOFF | 1 | |
| 55-2969 | SCREW - standoff | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-2114 | NUT | 1 | ||
| 27 | 33-4840 | INSULATION - curbside (lower) | 1 |
