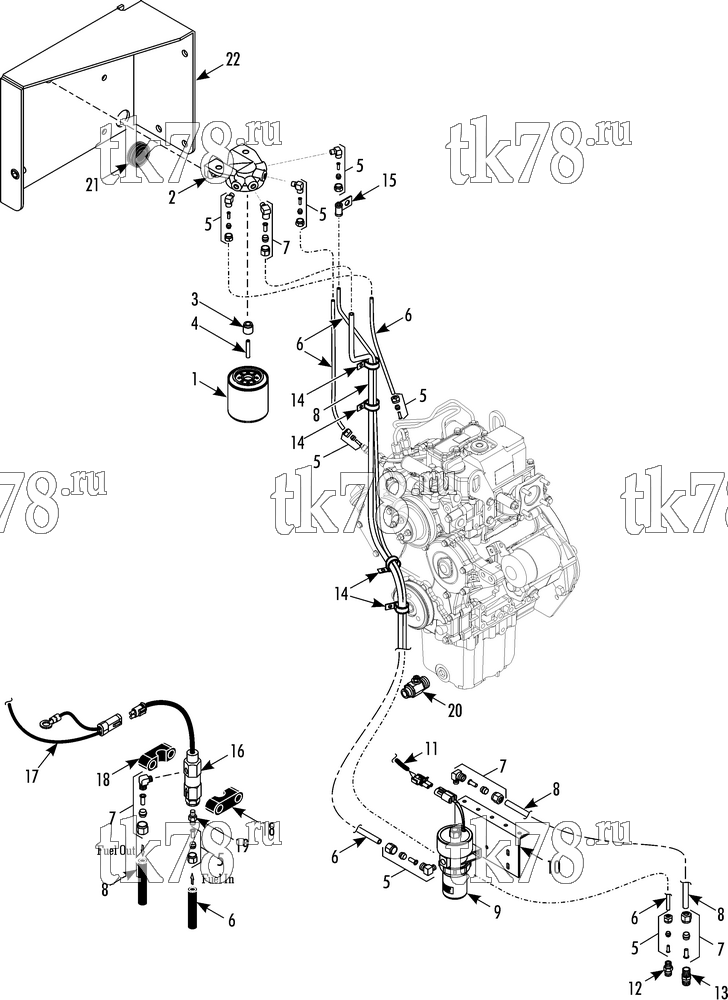

Установкa Thermo King HK-430 & HK-430 HO схема FUEL FILTER GROUP – 250F6
Обновление от: 5/4/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9342 | FILTER - fuel | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 740 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 690 ₽ |
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 2 | 11-9015 | HEAD - fuel filter | 1 | |
| 55-2969 | SCREW - filter head | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 3 | 11-9017 | SPUD - fuel filter | 1 | |
| 4 | 11-9016 | SHAFT - water bleed | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 5 | 11-5320 | ELBOW - 1/4 hose | 7 | |
| 10-243 | KIT - sleeve & eyelet (1/4) | 7 | ||
| 11-4841 | NUT - 1/4 hose | 7 | ||
| 6 | 11-4367 | HOSE - fuel (1/4 od x 35 ft) | A/R | |
| 11-9030 | HOSE - fuel (1/4 od x 8 ft) | 40 | ||
| 7 | 11-4380 | ELBOW - 3/8 hose | 3 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10-242 | KIT - sleeve & eyelet (3/8) | 3 | ||
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - 3/8 hose | 3 | ||
| 8 | 11-4372 | HOSE - fuel (3/8 od x 35 ft) | A/R | |
| 11-9031 | HOSE - fuel (3/8 od x 5 ft) | 40 | ||
| 9 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl | 1 | ||
| 10 | 92-5656 | BRACKET - fuel pump | 1 | |
| 11 | 41-857 | HARNESS - fuel pump | 1 | |
| 12 | 11-4370 | CONNECTOR - fuel tank (1/4 od) | 1 | |
| 13 | 11-8982 | CONNECTOR - fuel tank (3/8 od) | 1 | |
| 14 | 55-6147 | CLAMP - fuel line (.937 dia,) | 4 | |
| 15 | 55-2536 | CLAMP - fuel line (.25 dia,) | 1 | |
| 55-101 | SCREW - clamp | 5 | ||
| 55-411 | LOCKWASHER | 10 | ||
| 55-366 | FLATWASHER | 5 | ||
| 16 | 41-8319 | HEATER - fuel (optional) | 1 | |
| 17 | 42-171 | HARNESS - fuel heater (optional) | 1 | |
| 18 | 92-315 | CLAMP - fuel heater (optional) | 2 | |
| 55-6851 | SCREW - clamp | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 19 | 55-4515 | FITTING - hose (optional) | 1 | |
| 20 | 11-9338 | VALVE - oil drain | 1 | |
|
10-11-9338 | Клапан | 4 680 ₽ |
|
| 21 | 33-367 | GROMMET - fuel line | 1 | |
| 22 | 92-9236 | BRACKET - fuel filter (see 250F9/256A7) | 1 |
