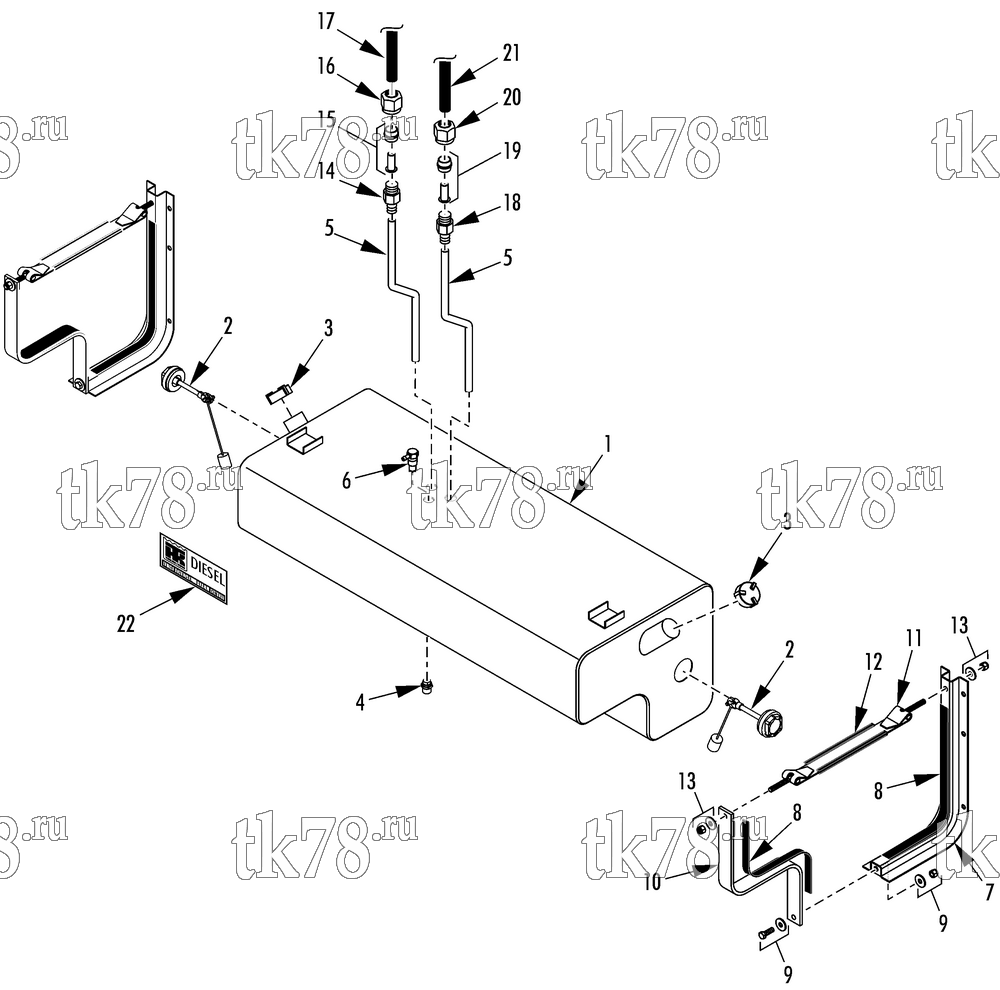

Установкa Thermo King HK-430 & HK-430 HO схема FUEL TANK (65 GALLON "L"")" – 240H8
Обновление от: 8/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-939 | TANK - fuel (65 gallon, aluminum "L"")" | 1 | |
| 2 | 13-1060 | GAUGE - fuel (mechanical) | 2 | |
| 11-5450 | DIAL - fuel gauge | 1 | ||
|
10-11-5450 | Датчик уровня топлива | 4 800 ₽ |
|
| 33-4818 | O-RING - fuel gauge | 1 | ||
| 11-6269 | ADAPTER - gauge | 1 | ||
| 3 | 11-7984 | CAP - fuel | 1 | |
| 4 | 51-1968 | PLUG - drain | 1 | |
| 5 | 11-7490 | TUBE - pickup | 2 | |
| 6 | 55-5617 | VENT | 1 | |
| 90-424 | KIT - tank installation | 1 | ||
| 7 | 90-388 | HANGER - fuel tank | 2 | |
| 8 | 33-4580 | STRIP - chafing (27 in lg) | 2 | |
| 9 | 55-2252 | SCREW (1/2-13 x 1.5) | 2 | |
| 55-5431 | FLATWASHER (1/2) | 4 | ||
| 55-3686 | NUT (1/2-13) | 2 | ||
| 10 | 13-1061 | BRACKET - strap | 2 | |
| 11 | 13-1062 | STRAP & TEE - assembly | 2 | |
| 12 | 33-4581 | STRIP - chafing | 2 | |
| 13 | 55-3686 | NUT (1/2-13) | 4 | |
| 55-5431 | FLATWASHER (1/2) | 4 | ||
| 14 | 11-4370 | CONNECTOR - hose fitting (1/4) | 1 | |
| 15 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 16 | 11-4841 | NUT (1/4) | 1 | |
| 17 | 11-4367 | HOSE (1/4 od x 35 ft lg) | 1 | |
| 18 | 11-8982 | FITTING (3/8) | 1 | |
| 19 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 20 | 11-4941 | NUT (3/8) | 1 | |
| 21 | 11-4372 | HOSE (3/8 od x 35 ft lg) | 1 | |
| 22 | 99-1596 | NAMEPLATE - Diesel Fuel Only | 1 |
