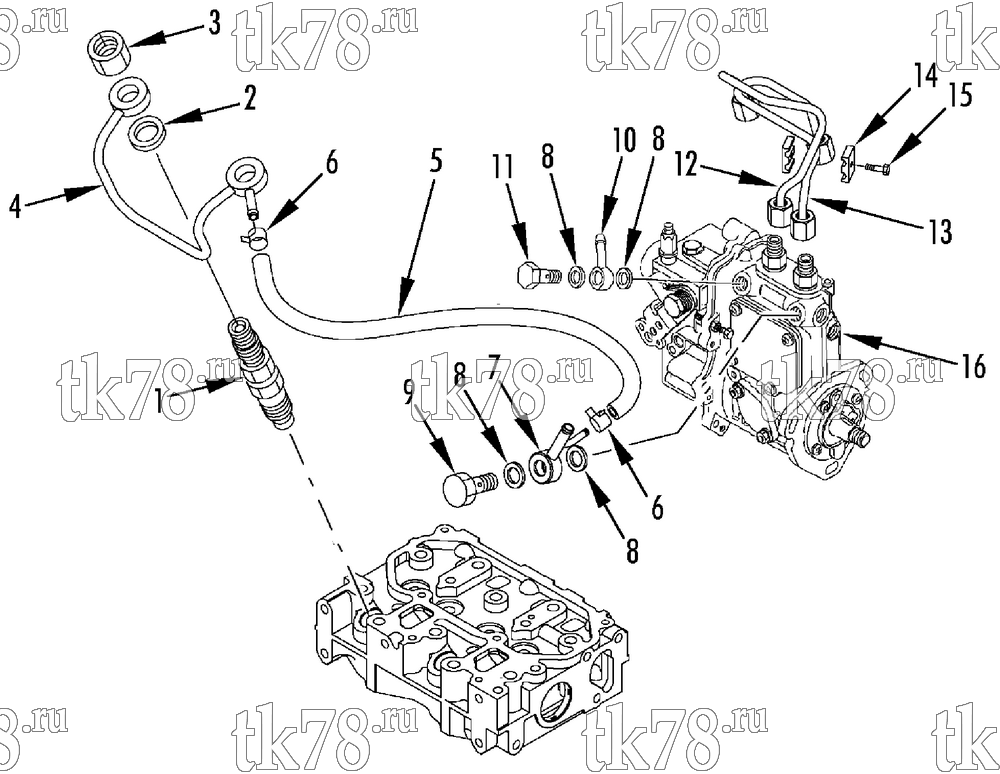

Установкa Thermo King HK-430 & HK-430 HO схема FUEL INJECTION VALVE (2TNV70) – 214B3
Обновление от: 7/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-598 | VALVE - injection | 2 | |
| 2 | 33-3834 | GASKET - return | 2 | |
| 3 | 11-6115 | NUT | 2 | |
| 4 | 13-645 | TUBE - fuel return | 1 | |
| 5 | 13-435 | HOSE - fuel return (includes two clamps) | 1 | |
| 6 | NSS | CLAMP | 2 | |
| 7 | 13-317 | JOINT - banjo | 1 | |
| 8 | 55-8620 | WASHER - seal | 4 | |
| 9 | 13-436 | KIT - check valve | 1 | |
| 10 | 13-783 | JOINT - banjo | 1 | |
| 11 | 13-436 | SCREW - banjo | 1 | |
| 12 | 13-644 | PIPE - fuel injection | 1 | |
| 13 | 13-643 | PIPE - fuel injection | 1 | |
| 14 | 11-8823 | CLAMP - injection pipe | 1 | |
| 15 | 55-8626 | SCREW - clamp | 2 | |
| 16 | 101-361 | PUMP - fuel injection (see 214B2) | 1 |
