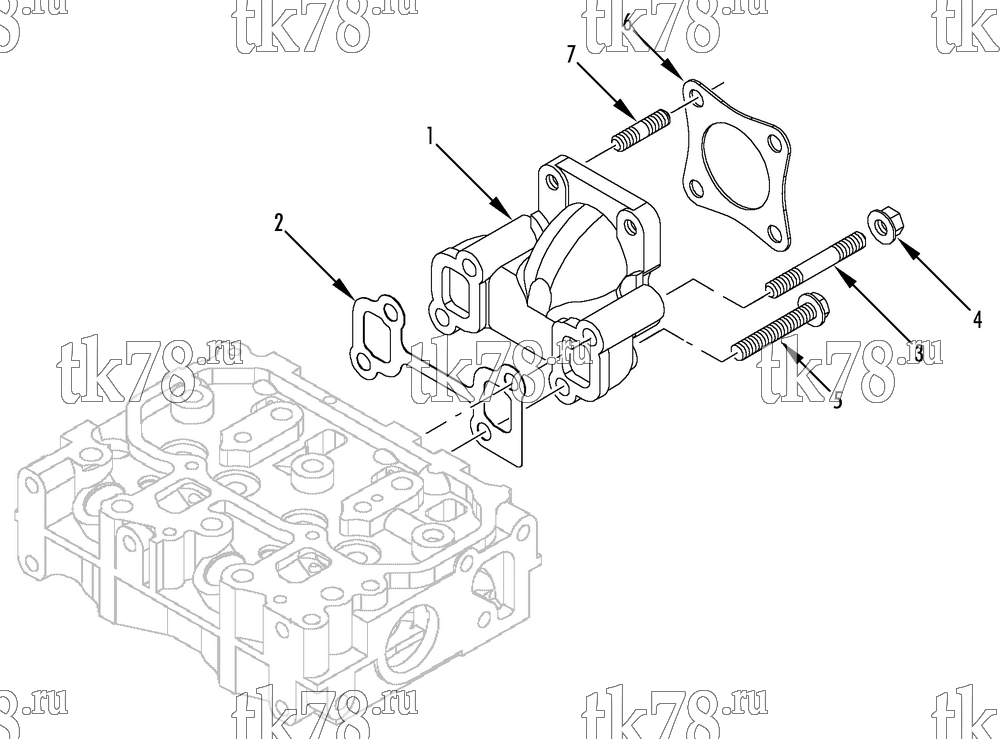

Установкa Thermo King HK-430 & HK-430 HO схема EXHAUST MANIFOLD (2TNV70) – 214A7
Обновление от: 4/4/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-467 | MANIFOLD - exhaust | 1 | |
| 2 | 33-4223 | GASKET - manifold | 2 | |
| 3 | 51-601 | STUD - manifold (M8 x 50) | 2 | |
| 4 | 51-594 | NUT - manifold | 2 | |
| 5 | 51-602 | SCREW - manifold | 2 | |
| 6 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 7 | 55-6184 | STUD - muffler | 4 | |
| 55-6183 | LOCKWASHER | 4 | ||
| 55-6186 | NUT | 4 | ||
| 30-281 | GASKET SET - engine overhaul (see 209A0) | 1 |
