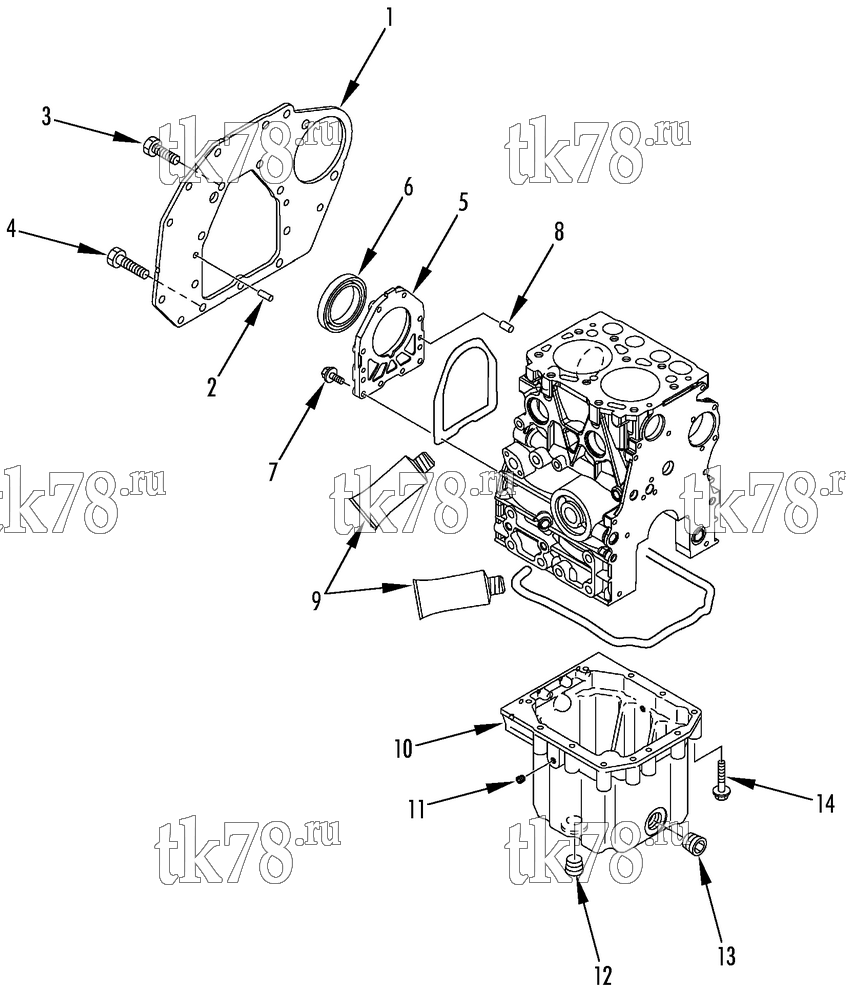

Установкa Thermo King HK-430 & HK-430 HO схема OIL SUMP & OUNTING FLANGE (2TNV70) – 214A6
Обновление от: 1/11/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9641 | FLANGE - mounting (not used in Heat King units) | 1 | |
| 2 | 55-5816 | PIN - dowel (8 x 16) | 2 | |
| 3 | 55-5848 | SCREW - flange (M10 x 20) | 7 | |
| 4 | 55-6537 | SCREW - flange (M10 x 25) | 3 | |
| 5 | 13-722 | HOUSING - oil seal (assembly) | 1 | |
| 6 | 33-4123 | SEAL - oil | 1 | |
|
10-33-4123 | Сальник коленвала задний, Yanmar 370 / 376 | 4 500 ₽ |
|
|
PP-33-4123 | Сальник коленвала задний, Yanmar 370 / 376 | 2 200 ₽ |
|
| 7 | 55-5849 | SCREW - case | 10 | |
| 8 | 55-5795 | PIN - dowel | 2 | |
| 9 | 33-4243 | GASKET - liquid | 1 | |
| 10 | 12-895 | SUMP - oil | 1 | |
| 11 | 51-1190 | PLUG (1/8 NPT) | 2 | |
| 12 | 51-1295 | PLUG - oil drain (1/4 NPT) | 2 | |
| 13 | 55-8437 | PLUG - oil drain (3/4 NPT) | 1 | |
| 14 | 55-5988 | SCREW - cover (M6 x 46) | 11 | |
| 30-281 | GASKET SET (see 209A0) | 1 |
