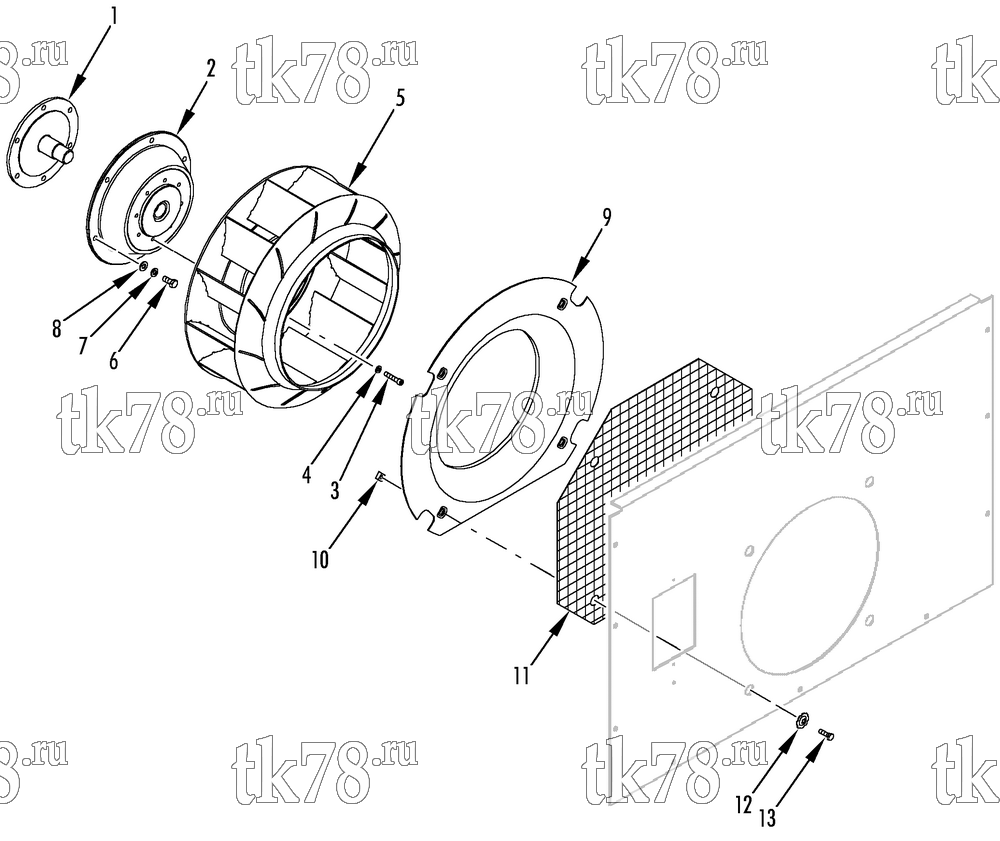

Установкa Thermo King HK-400 & HK-400 HO схема BLOWER, COUPLING & SHAFT – 213E8
Обновление от: 8/17/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2584 | SHAFT - coupling | 1 | |
| 2 | 78-840 | COUPLING - engine | 1 | |
| 3 | 55-6166 | SCREW - blower | 8 | |
| 4 | 55-366 | LOCKWASHER | 8 | |
| 5 | 78-1194 | BLOWER | 1 | |
| 6 | 55-5022 | SCREW - coupling | 6 | |
| 7 | 55-790 | LOCKWASHER | 6 | |
| 8 | 55-371 | FLATWASHER | 6 | |
| 9 | 98-7457 | ORIFICE | 1 | |
| 10 | 55-3059 | NUT - captive | 4 | |
| 11 | 92-6110 | SCREEN - fan | 1 | |
| 12 | 55-3045 | WASHER - dome | 4 | |
| 13 | 55-2957 | SCREW - grille | 4 |
