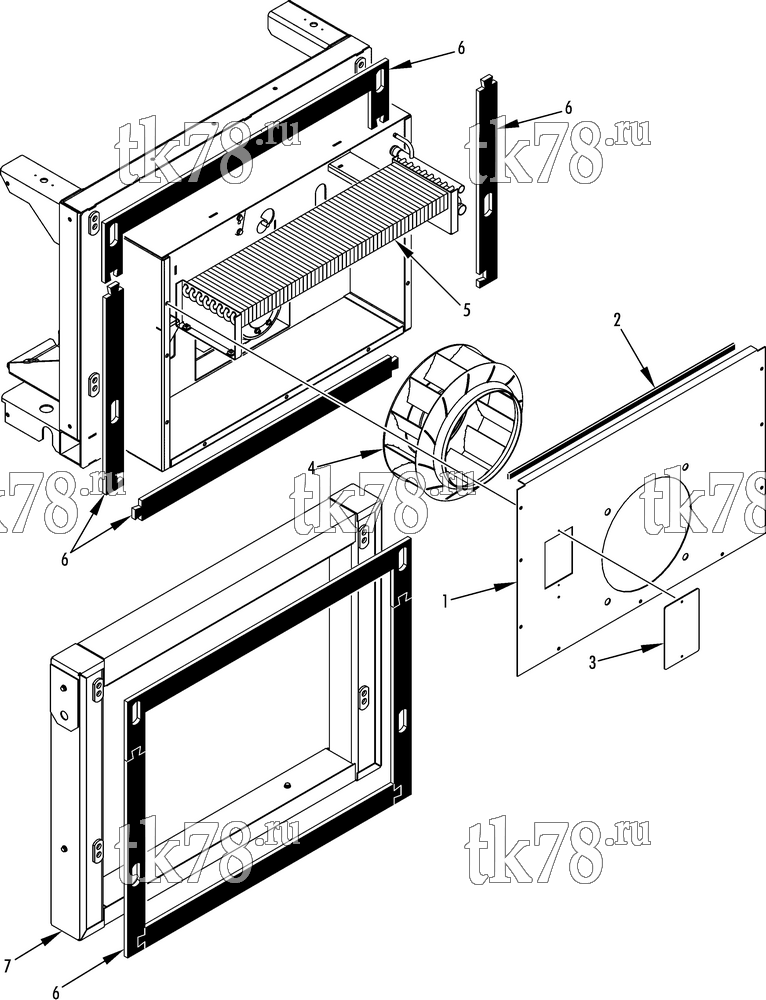

Установкa Thermo King HK-400 & HK-400 HO схема BLOWER GROUP – 213E7
Обновление от: 9/27/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7492 | COVER - rear | 1 | |
| 55-2957 | SCREW - cover | 13 | ||
| 55-3045 | LOCKWASHER - dome | 13 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 2 | 33-3506 | STRIP - seal (coil, trim as required) | 2 | |
| 3 | 92-5644 | COVER - access | 1 | |
| 4 | 78-1194 | BLOWER (see 213E8) | 1 | |
| 5 | 12-897 | COIL - radiator (see 213E3) | 1 | |
| 6 | 33-2957 | GASKET - sill | 1 | |
| 7 | 98-7493 | COLLAR - zero cube (optional) | 1 |
