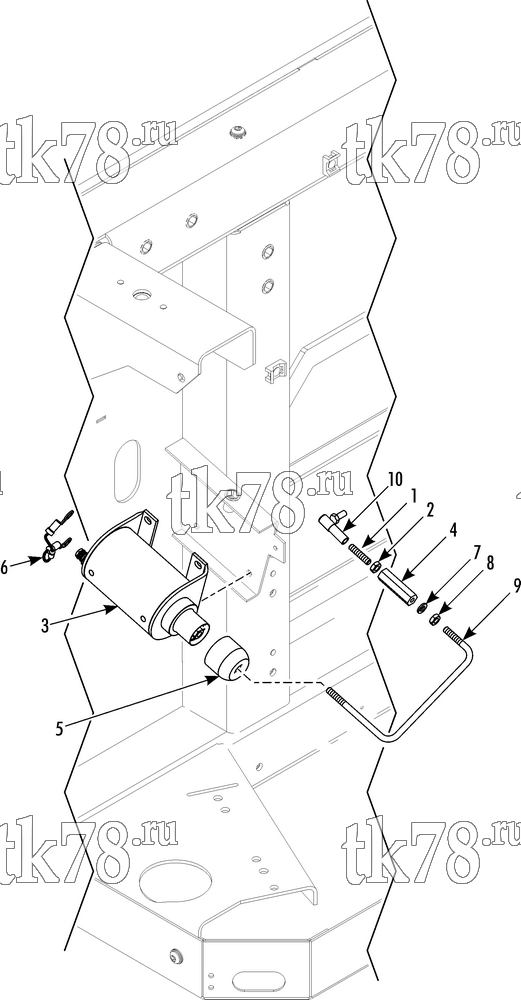

Установкa Thermo King HK-400 & HK-400 HO схема THROTTLE GROUP – 213E6
Обновление от: 9/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-822 | LINKAGE - throttle | 1 | |
| 2 | 55-2368 | NUT | 1 | |
| 3 | 41-7748 | SOLENOID - throttle | 1 | |
| 4 | 13-861 | ADJUSTER - throttle | 1 | |
| 5 | 91-3095 | COVER - solenoid | 1 | |
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 55-101 | SCREW - solenoid | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 6 | 44-2756 | DIODE | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 203-392 | SEALER - antiseize (1 lb can) | A/R | ||
| 7 | 55-1800 | LOCKWASHER | 1 | |
| 8 | 55-9567 | NUT (lh thread) | 1 | |
| 9 | 13-860 | LINK - throttle | 1 | |
| 10 | 13-743 | JOINT - throttle | 1 | |
| 55-5292 | NUT - joint | 1 |
