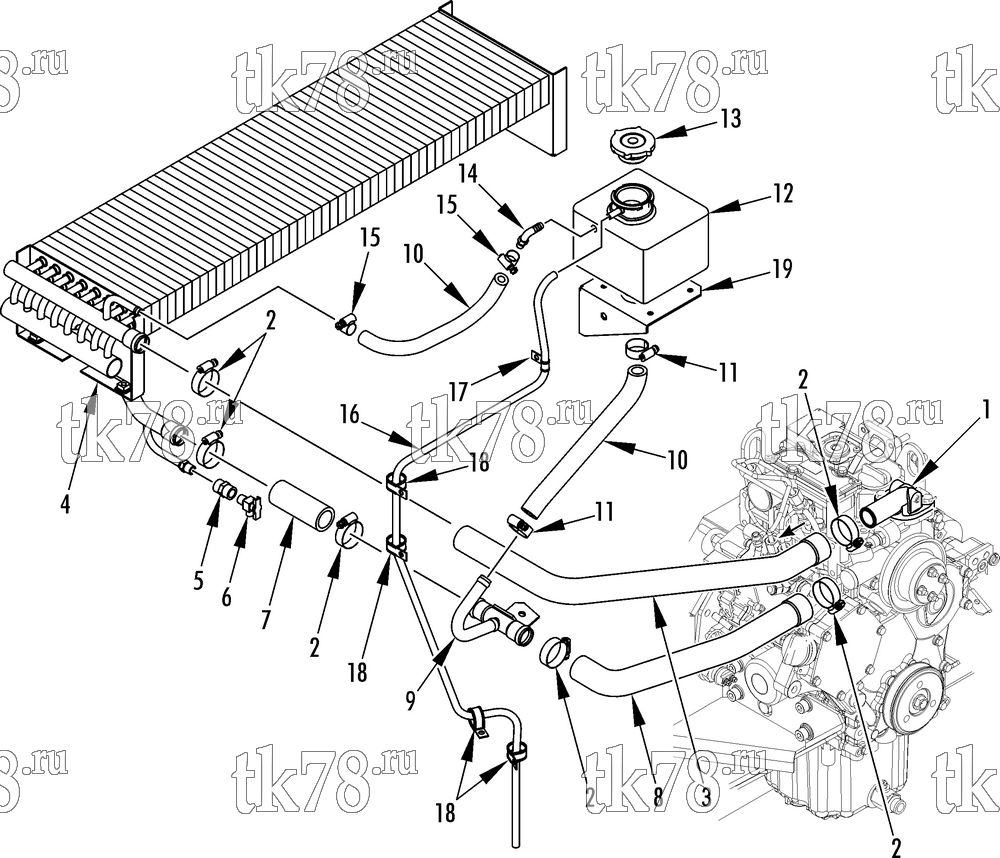

Установкa Thermo King HK-400 & HK-400 HO схема COOLING SYSTEM – 213E3
Обновление от: 9/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-418 | HOUSING - thermostat (see 214B1) | 1 | |
| 2 | 55-5400 | CLAMP - hose | 6 | |
| 3 | 13-744 | HOSE - engine to radiator | 1 | |
| 4 | 12-897 | COIL - radiator | 1 | |
| 55-2957 | SCREW - coil | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 5 | 55-8712 | COUPLING - drain cock | 1 | |
| 6 | 55-9011 | COCK - drain | 1 | |
| 7 | 13-745 | HOSE - radiator to tee | 1 | |
| 8 | 13-746 | HOSE - tee to engine | 1 | |
| 9 | 13-742 | TEE - tube (radiator to engine) | 1 | |
| 55-2969 | SCREW - tee | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 10 | 11-8480 | HOSE - tee to tank (cut to 9 inches) | A/R | |
| 11 | 55-5074 | CLAMP - hose | 2 | |
| 12 | 13-819 | TANK - expansion | 1 | |
| 55-1587 | SCREW - tank | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 13 | 11-9242 | CAP - radiator | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 14 | 55-5963 | FITTING - barb | 1 | |
| 15 | 55-2069 | CLAMP - hose | 2 | |
| 16 | 98-771 | HOSE - overflow | 1 | |
| 17 | 55-2239 | CLAMP - hose | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-8711 | INSERT - threaded | 1 | ||
| 18 | 55-6147 | CLAMP - hose | 4 | |
| 55-101 | SCREW - clamp | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 19 | 92-5635 | BRACKET - expansion tank | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 |
