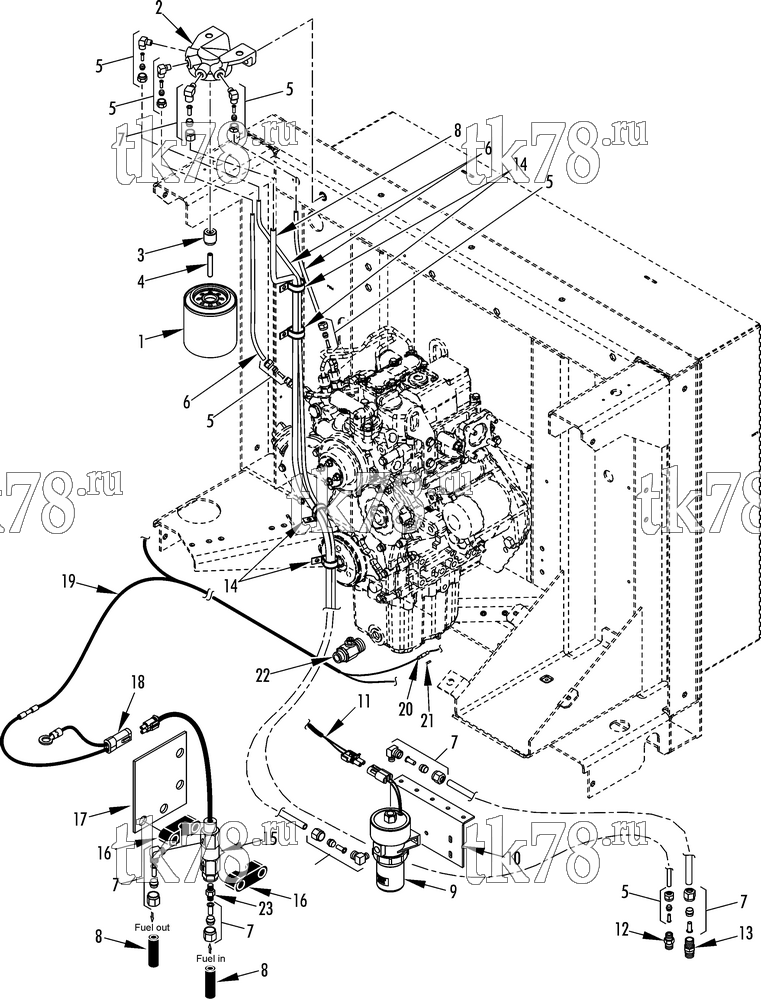

Установкa Thermo King HK-400 & HK-400 HO схема FUEL FILTER GROUP – 213E1
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9342 | FILTER - fuel | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 610 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 590 ₽ |
|
| PP-11-9342 | Фильтр топливный, SLX/SLXe | 350 ₽ |
|
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 2 | 11-9015 | HEAD - fuel filter | 1 | |
| 55-2969 | SCREW - filter head | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 3 | 11-9017 | SPUD - fuel filter | 1 | |
| 4 | 11-9016 | SHAFT - water bleed | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 5 | 11-5320 | ELBOW - 1/4 hose | 3 | |
| 10-243 | KIT - sleeve & eyelet (1/4) | 4 | ||
| 11-4841 | NUT - 1/4 hose | 4 | ||
| 6 | 11-4367 | HOSE - fuel (1/4 od) | A/R | |
| 7 | 11-4380 | ELBOW - 3/8 hose | 5 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10-242 | KIT - sleeve & eyelet (3/8) | 6 | ||
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - 3/8 hose | 6 | ||
| 8 | 11-4372 | HOSE - fuel (3/8 od) | A/R | |
| 9 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl | 1 | ||
| 10 | 92-5656 | BRACKET - fuel pump | 1 | |
| 11 | 41-857 | HARNESS - fuel pump | 1 | |
| 12 | 11-4370 | CONNECTOR - fuel tank (1/4 od) | 1 | |
| 13 | 11-8982 | CONNECTOR - fuel tank (3/8 od) | 1 | |
| 14 | 55-6147 | CLAMP - fuel lines | 6 | |
| 55-101 | SCREW - clamp | 4 | ||
| 55-411 | LOCKWASHER | 8 | ||
| 55-366 | FLATWASHER | 4 | ||
| 40-1016 | KIT - electric fuel heater (optional) | 1 | ||
| 15 | 41-8319 | HEATER - fuel (optional) | 1 | |
| 16 | 92-315 | CLAMP - fuel heater | 2 | |
| 17 | 92-7631 | PLATE - fuel heater | 1 | |
| 55-5677 | SCREW (1/4-20 x 2.5) | 2 | ||
| 55-101 | SCREW (1/4-20 x 1.0) | 2 | ||
| 55-411 | FLATWASHER (1/4) | 2 | ||
| 18 | 41-8323 | HARNESS - extension | 1 | |
| 55-2330 | BANDWRAP | 4 | ||
| 19 | 41-7237 | HARNESS - fuel heater | 1 | |
| 44-6145 | BREAKER - circuit (20 amp) | 1 | ||
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 20 | 41-1276 | HOLDER - fuse | 1 | |
| 21 | 44-2590 | FUSE (10 amp) | 1 | |
| 22 | 11-9338 | VALVE - oil drain | 1 | |
|
10-11-9338 | Клапан | 4 680 ₽ |
|
| 23 | 55-4515 | FITTING - hose | 1 |
