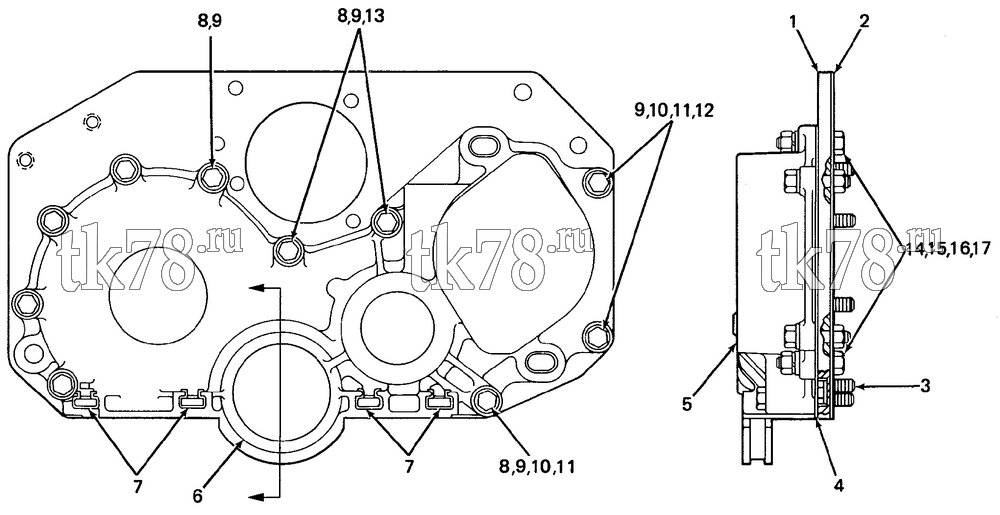

Установкa Thermo King GTC-2 схема FRONT HOUSING GROUP – 114B5
Обновление от: 6/23/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7129 | PLATE - front housing | 1 | |
| 2 | 33-2070 | GASKET - front plate | 1 | |
| 3 | 55-6657 | SCREW - front plate (cap) | 1 | |
| 4 | 33-2071 | GASKET - front cover | 1 | |
| 5 | 11-7859 | COVER - front | 1 | |
| 6 | 33-2072 | SEAL - oil | 1 | |
| 7 | 55-6641 | NUT - oil pan (tinnerman) | 4 | |
| 8 | 55-6658 | SCREW - front cover & plate (cap) | 8 | |
| 9 | 55-6637 | FLATWASHER - front cover & plate | 10 | |
| 10 | 55-6635 | LOCKWASHER - front cover & plate | 3 | |
| 11 | 55-6659 | NUT - front cover & plate | 3 | |
| 12 | 55-6660 | SCREW - front cover & plate | 2 | |
| 13 | 55-6661 | LOCKWASHER | 2 | |
| 14 | 55-6662 | SCREW - front cover & plate | 2 | |
| 15 | 55-6663 | FLATWASHER | 2 | |
| 16 | 55-6664 | LOCKWASHER | 2 | |
| 17 | 55-6665 | NUT | 2 |
