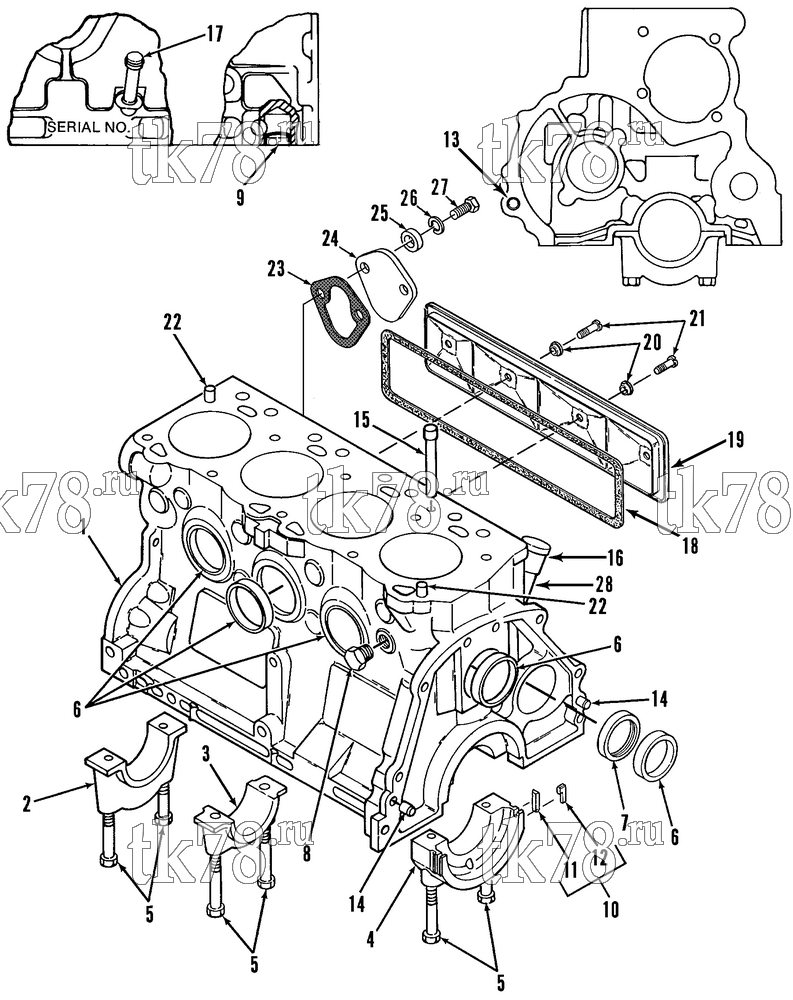

Установкa Thermo King GTC-2 схема CYLINDER BLOCK GROUP – 114A14
Обновление от: 3/14/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-288 | ENGINE - assembly (complete) | 1 | ||
| 1 | 12-635 | CYLINDER BLOCK | 1 | |
| 12-559 | CYLINDER BLOCK - subassembly | 1 | ||
| 2 | NSS | CAP - main bearing (front) | 1 | |
| 3 | NSS | CAP - main bearing (center) | 1 | |
| 4 | NSS | CAP - main bearing (rear) | 1 | |
| 5 | 55-6653 | BOLT - main bearing cap | 6 | |
| 6 | 11-7118 | PLUG - cup | 5 | |
| 7 | 11-7119 | BEARING - camshaft | 3 | |
| 8 | 55-6645 | PLUG - pipe, water drain | 1 | |
| 9 | 11-7120 | PLUG - cup (cylinder block rail, front) | 1 | |
| 10 | 11-7121 | SEAL SET - rear main bearing cap | 1 | |
| 11 | 11-7122 | SEAL - rear main bearing | 2 | |
| 12 | 11-7123 | SEAL - rear main bearing cap | 2 | |
| 13 | 55-6654 | PIN - dowel (front plate & front cover) | 1 | |
| 14 | 55-6655 | PIN - dowel (flywheel housing) | 2 | |
| 15 | 11-7124 | TUBE - distributor gear oiling | 1 | |
| 16 | 11-7125 | PLUG - cup (oil filler) | 1 | |
| 17 | 11-7126 | PLUG - cup (oil level indicator) | 1 | |
| 18 | 33-2068 | GASKET - push rod cover | 1 | |
| 19 | 11-7127 | COVER - push rod | 1 | |
| 20 | 33-2069 | SEAL - push rod cover bolt | 4 | |
| 21 | 55-6656 | BOLT - push rod cover | 4 | |
| 22 | 11-7128 | RING - dowel (cyl head to block) | 2 | |
| 23 | 33-2078 | GASKET - fuel pump hole cover | 1 | |
| 24 | 11-7172 | COVER - fuel pump hole | 1 | |
| 25 | 55-6687 | SPACER | 2 | |
| 26 | 55-6635 | LOCKWASHER | 2 | |
| 27 | 55-6640 | SCREW (hex) | 2 | |
| 28 | 11-7858 | TUBE - oil fill | 1 | |
| 203-407 | OIL - engine | A/R |
