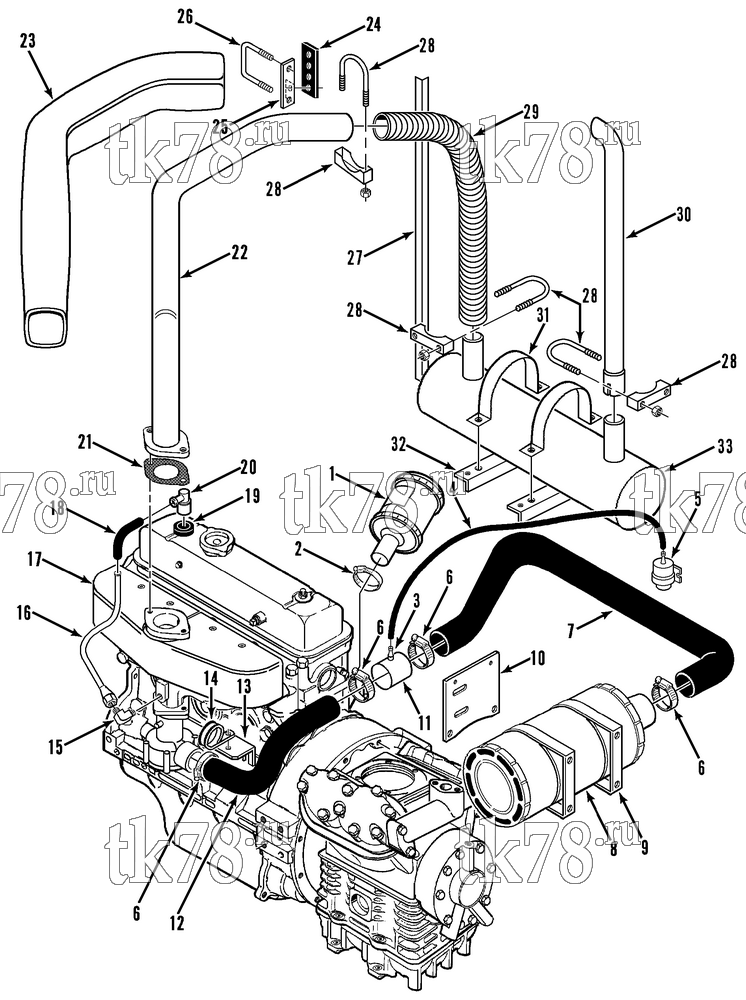

Установкa Thermo King GTC-2 схема ENGINE INTAKE & EXHAUST GROUP – 113B9
Обновление от: 10/31/94
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7816 | FILTER - pcv | 1 | |
| 2 | 55-4979 | CLAMP - filter | 1 | |
| 3 | 55-7645 | FITTING - hose (restriction indicator) | 1 | |
| 4 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 5 | 11-9262 | INDICATOR - air restrictor | 1 | |
| 6 | 55-1636 | CLAMP - hose | 4 | |
| 7 | 11-7909 | HOSE - air cleaner to coupler | 1 | |
| 8 | 11-7400 | FILTER - air cleaner | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 9 | 11-5562 | CLAMP - air cleaner | 2 | |
| 10 | 91-5062 | BRACKET - coupler | 1 | |
| 11 | 11-7920 | TUBE - air cleaner hose | 1 | |
| 12 | 11-7908 | HOSE - tube to engine | 1 | |
| 13 | 91-5046 | BRACKET - air cleaner hose | 1 | |
| 14 | 55-6038 | CLAMP - hose | 1 | |
| 15 | 55-7591 | ELBOW - hose | 1 | |
| 16 | 11-7849 | TUBE - breather | 1 | |
| 17 | 91-5211 | BLANKET - exhaust manifold | 1 | |
| 18 | 11-7851 | HOSE - pcv valve to tube | 1 | |
| 19 | 33-2449 | O-RING - pcv valve | 1 | |
| 20 | 11-7850 | VALVE - pcv | 1 | |
| 21 | 33-2058 | GASKET - exhaust manifold | 1 | |
| 22 | 11-7906 | TUBE - exhaust | 1 | |
| 23 | 91-5210 | BLANKET - exhaust tube | 1 | |
| 24 | 91-5208 | HANGER - saddle | 1 | |
| 25 | 91-5199 | ANGLE - hanger | 1 | |
| 26 | 91-5209 | CLAMP - U | 1 | |
| 55-289 | NUT - u-bolt | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 27 | 91-5198 | ANGLE - exhaust stabilizer | 1 | |
| 28 | 99-1514 | CLAMP - U | 3 | |
| 29 | 12-313 | HOSE - exhaust (25 ft, cut to 49.5 in) | A/R | |
| 30 | 11-7907 | TUBE - exhaust outlet | 1 | |
| 31 | 91-5059 | CLAMP - muffler | 2 | |
| 32 | 91-5060 | ANGLE - muffler | 2 | |
| 33 | 12-638 | MUFFLER | 1 |
