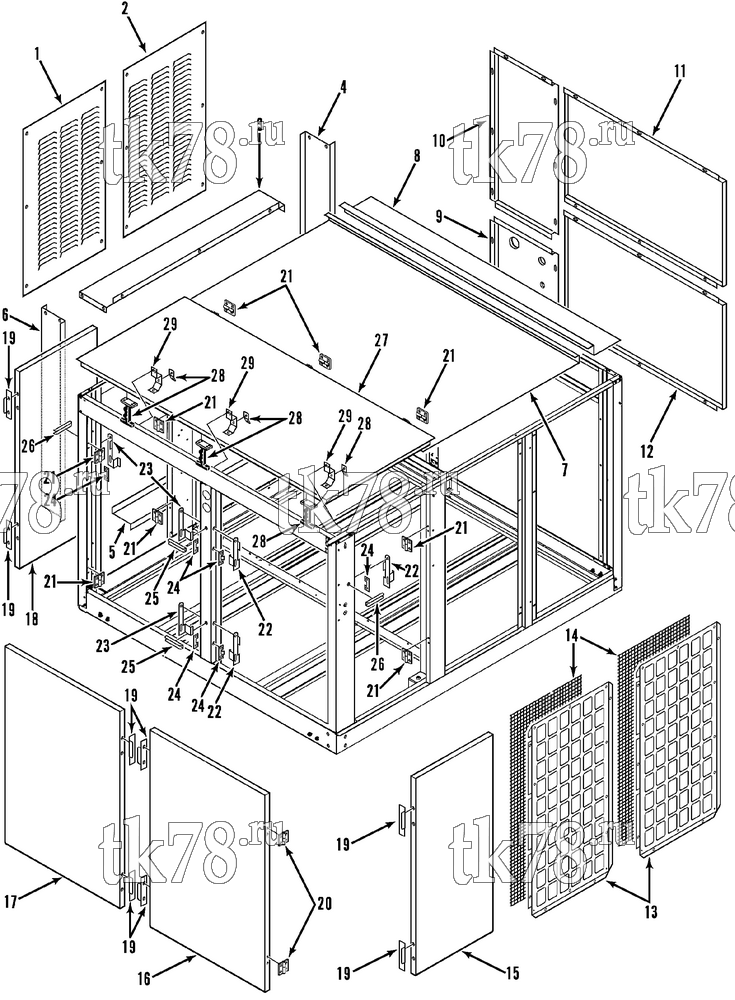

Установкa Thermo King GTC-2 схема PANELS & DOORS – 113B6
Обновление от: 7/6/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4458 | PANEL - discharge | 1 | |
| 2 | 98-4459 | PANEL - discharge | 1 | |
| 3 | 98-4434 | PANEL - fan shroud (upper) | 1 | |
| 4 | 98-4433 | PANEL - fan shroud (outboard) | 1 | |
| 5 | 98-4435 | PANEL - fan shroud (lower) | 1 | |
| 6 | 98-4432 | PANEL - fan shroud (inboard) | 1 | |
| 55-6526 | INSERT - shroud panels | 28 | ||
| 55-1587 | SCREW - shroud panels | 28 | ||
| 55-1800 | LOCKWASHER | 28 | ||
| 55-2086 | FLATWASHER | 28 | ||
| 7 | 98-4452 | PANEL - condenser (top inboard) | 1 | |
| 55-1587 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 8 | 98-4453 | PANEL - condenser (top outboard) | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 9 | 98-4455 | PANEL - rear (fan side, lower) | 1 | |
| 55-7613 | PLUG - button | 1 | ||
| 55-1587 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 10 | 98-4454 | PANEL - rear (fan side, upper) | 1 | |
| 55-1587 | SCREW - panel | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 11 | 98-4450 | PANEL - rear (coil side, upper) | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 12 | 98-4451 | PANEL - rear (coil side, lower) | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 13 | 98-4456 | GRILLE - condenser (inlet) | 2 | |
| 14 | 98-4457 | SCREEN (poly) | 2 | |
| 55-3588 | RIVET - screen | 24 | ||
| 55-5676 | WASHER - special | 24 | ||
| 55-1587 | SCREW - panel | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 15 | 98-4474 | DOOR - control box (incl 19, 20) | 1 | |
| 16 | 98-4446 | DOOR - engine (right, incl 19, 20) | 1 | |
| 17 | 98-4447 | DOOR - engine (left, incl 19, 20) | 1 | |
| 18 | 98-4448 | DOOR - engine (pulley side, incl 19, 20) | 1 | |
| 19 | 91-5069 | ANGLE - door latch | 8 | |
| 55-4806 | SCREW - angle | 16 | ||
| 55-2001 | FLATWASHER | 16 | ||
| 55-396 | LOCKWASHER | 16 | ||
| 55-7610 | INSERT - threaded | 16 | ||
| 20 | 91-5067 | HINGE (w/o pin, left hand) | 6 | |
| 91-5068 | HINGE (w/o pin, right hand) | 5 | ||
| 55-3098 | SCREW - hinge | 22 | ||
| 55-2993 | LOCKWASHER | 22 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 55-6863 | INSERT - threaded | 22 | ||
| 21 | 91-5026 | HINGE (w/ pin, left hand) | 6 | |
| 91-5027 | HINGE (w/ pin, right hand) | 5 | ||
| 55-1587 | SCREW - hinge | 22 | ||
| 55-2993 | LOCKWASHER | 22 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 55-6863 | INSERT - threaded | 22 | ||
| 22 | 91-5071 | LATCH - door | 4 | |
| 23 | 91-5072 | LATCH - door | 4 | |
| 24 | 91-5073 | LATCH - door | 8 | |
| 55-7611 | WASHER - shoulder | 8 | ||
| 55-3098 | SCREW - truss head | 8 | ||
| 25 | 91-5074 | CHANNEL - latch stop | 2 | |
| 26 | 91-5076 | CHANNEL - latch stop | 4 | |
| 27 | 98-4449 | HOOP - engine (incl 20) | 1 | |
| 28 | 91-5070 | LATCH - flex | 3 | |
| 55-2647 | RIVET - latch | 12 | ||
| 29 | 91-5028 | BRACKET - head latch | 3 | |
| 55-2995 | SCREW - bracket | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-6721 | INSERT - threaded | 12 |
