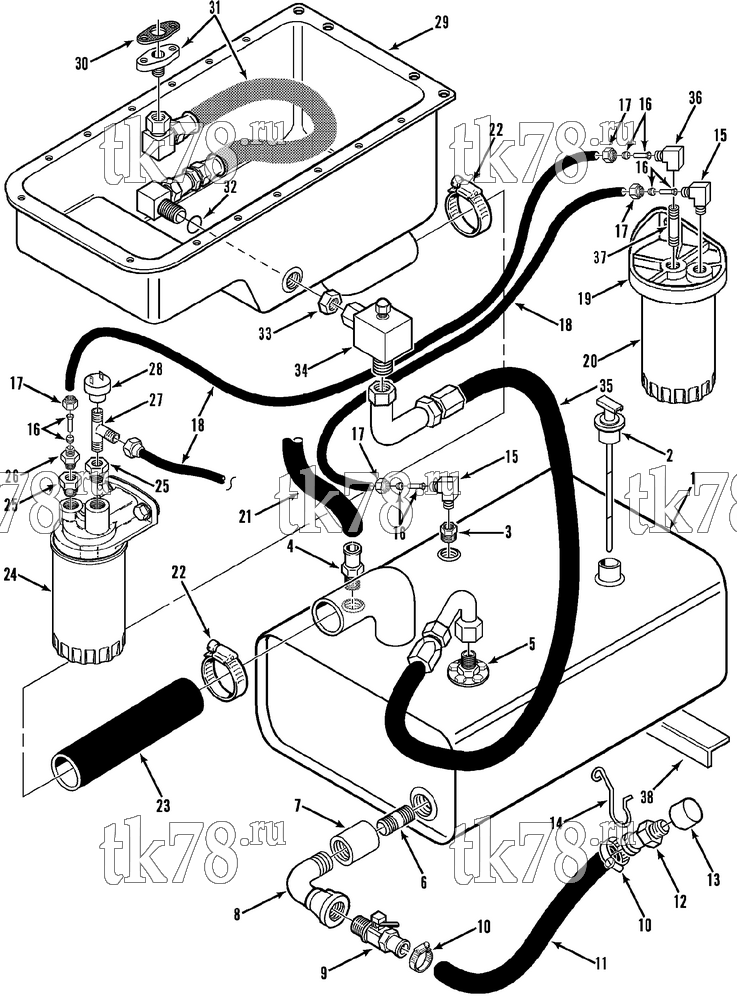

Установкa Thermo King GTC-2 схема OIL TANK, BASE & FILTERS GROUP – 113B10
Обновление от: 8/30/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-637 | TANK - oil | 1 | |
| 2 | 11-7904 | DIPSTICK - oil tank | 1 | |
| 3 | 55-2539 | BUSHING | 1 | |
| 4 | 55-7588 | FITTING - hose | 1 | |
| 5 | 11-7903 | TUBE - oil pickup | 1 | |
| 6 | 55-3336 | NIPPLE | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 7 | 55-7650 | COUPLING | 1 | |
| 8 | 55-1609 | ELBOW - street | 1 | |
| 9 | 11-7236 | VALVE - oil drain | 1 | |
| 10 | 55-1521 | CLAMP - hose | 1 | |
| 11 | 11-7902 | HOSE - oil drain | 1 | |
| 12 | 55-6485 | FITTING - hose | 1 | |
| 13 | 55-6609 | CAP - pipe | 1 | |
| 14 | 11-5999 | CLIP - drain hose | 1 | |
| 15 | 11-4380 | ELBOW (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 16 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 17 | 11-4941 | NUT (3/8) | 4 | |
| 18 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 19 | 11-6338 | SUPPORT - bypass oil filter | 1 | |
| 55-6037 | ADAPTER - filter | 1 | ||
| 20 | 11-9101 | FILTER - oil bypass | 1 | |
| 21 | 11-7923 | HOSE - pcv valve to tank | 1 | |
| 22 | 55-7609 | CLAMP - hose | 1 | |
| 23 | 11-7924 | HOSE - oil sump to oil tank | 1 | |
| 24 | 11-7079 | FILTER - oil (see 91C13) | 1 | |
| 25 | 55-2539 | BUSHING | 2 | |
| 26 | 55-4515 | FITTING - hose (3/8) | 1 | |
| 27 | 11-5321 | TEE | 1 | |
| 28 | 44-4774 | SWITCH - low oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 203-400 | SEALER - thread | A/R | ||
| 29 | 12-634 | SUMP - oil (see 91C11) | 1 | |
| 30 | 33-2059 | GASKET - oil pump | 1 | |
| 31 | 11-7838 | HOSE - oil sump | 1 | |
| 32 | 33-2450 | O-RING - hose assembly | 1 | |
| 33 | 55-7592 | NUT & LOCKWASHER | 1 | |
| 34 | 11-7925 | TEE - bleeder, oil sump | 1 | |
| 35 | 11-7905 | HOSE - remote tank to sump | 1 | |
| 36 | 11-5607 | ELBOW | 1 | |
| 37 | 11-926 | NIPPLE | 1 | |
| 38 | 91-5058 | ANGLE - oil tank | 2 | |
| 55-141 | SCREW - angle | 6 | ||
| 55-371 | FLATWASHER | 6 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 55-6713 | INSERT - threaded | 6 |
