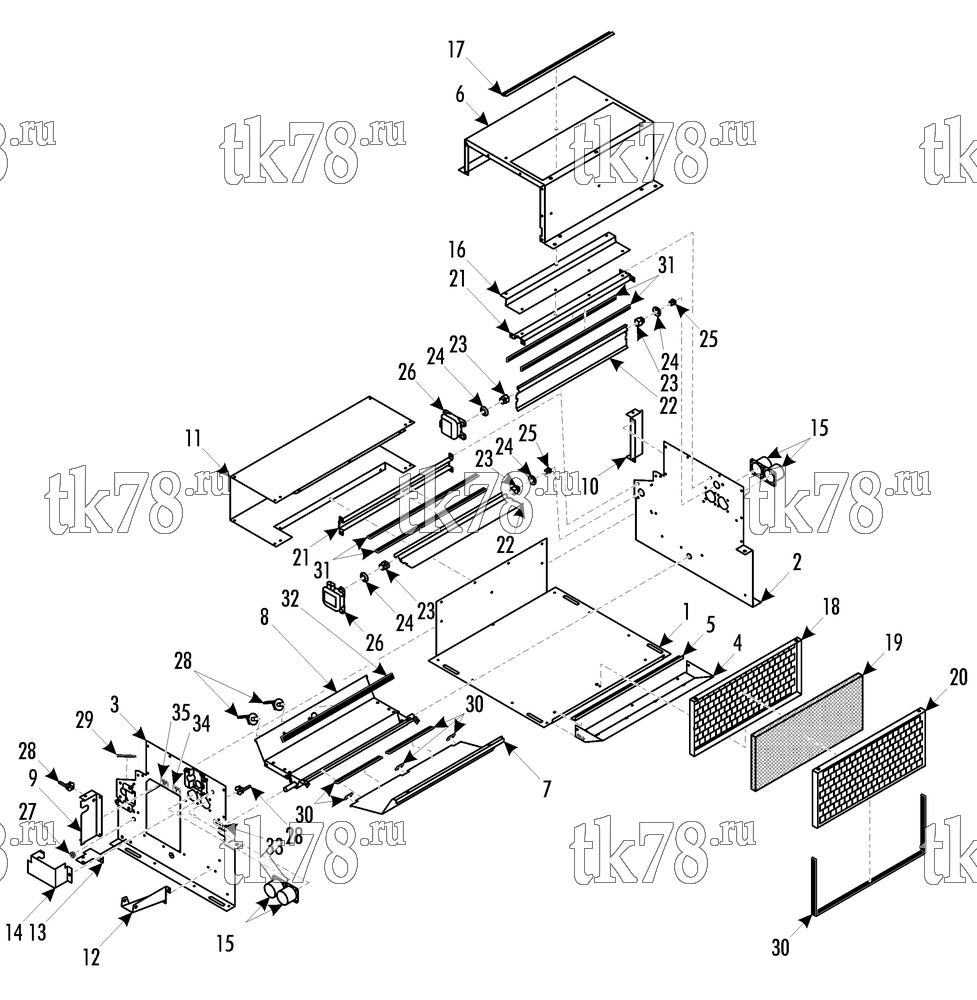

Установкa Thermo King Front Box MILLEN 600455 схема FRAME – 257D8
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3491 | WALL - bottom | 1 | |
| 2 | 92-9886 | WALL - side | 1 | |
| 3 | 92-9887 | WALL - side weldment | 1 | |
| 4 | 92-3499 | SHIELD - bottom | 1 | |
| 5 | 92-3497 | SUPPORT - filter | 1 | |
| 6 | 92-3490 | COVER | 1 | |
| 51-256 | RIVET - wall | A/R | ||
| 7 | 92-3496 | COVER - service | 1 | |
| 55-7340 | SCREW - cover | 2 | ||
| 51-130 | LOCKWASHER | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 8 | 92-9888 | PAN - drain | 1 | |
| 9 | 92-3493 | WALL - return air | 1 | |
| 10 | 92-3494 | WALL - return air | 1 | |
| 11 | 92-3492 | BODY - return air | 1 | |
| 12 | 92-3498 | SUPPORT - valve | 1 | |
| 51-256 | RIVET - support | A/R | ||
| 13 | 92-9889 | BRACKET | 1 | |
| 55-7862 | SCREW - bracket | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 14 | 92-3500 | COVER - motor | 1 | |
| 55-7340 | SCREW - cover | 2 | ||
| 51-130 | LOCKWASHER | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 15 | 92-3504 | OUTLET - air (44.5 od) | 4 | |
| 51-256 | RIVET - connector | A/R | ||
| 16 | 92-3495 | WALL - connection | 1 | |
| 17 | 92-3503 | PROFILE | 1 | |
| 51-256 | RIVET - profile | A/R | ||
| 18 | 92-3502 | COVER - filter | 1 | |
| 19 | 11-9927 | FILTER - air | 1 | |
| 20 | 92-3501 | COVER - filter | 1 | |
| 55-7340 | SCREW - cover | 2 | ||
| 51-130 | LOCKWASHER | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 21 | 92-2536 | HOOD - stop | 2 | |
| 55-7340 | SCREW - hood | 8 | ||
| 51-130 | LOCKWASHER | 8 | ||
| 55-8375 | NUT - captive | 8 | ||
| 22 | 92-9890 | FLAP | 2 | |
| 23 | 77-2746 | ADAPTER | 4 | |
| 24 | 92-5226 | BEARING | 4 | |
| 25 | 51-261 | PLUG | 2 | |
| 26 | 41-3255 | SERVOMOTOR | 2 | |
| 55-9349 | SCREW - servomotor | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 27 | 33-1013 | GROMMET (0.281 id) | 1 | |
| 28 | 51-1631 | STRAP - cable | 4 | |
| 29 | 92-3279 | RUBBER - profile | A/R | |
| 30 | 33-3864 | STRIP - polyester | A/R | |
| 31 | 33-4537 | STRIP - sealing | A/R | |
| 32 | 99-2495 | STRIP - neoprene | A/R | |
| 33 | 91-7543 | NAMEPLATE - 24VDC | 1 | |
| 34 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 35 | 91-7550 | NAMEPLATE - liquid out | 1 |
