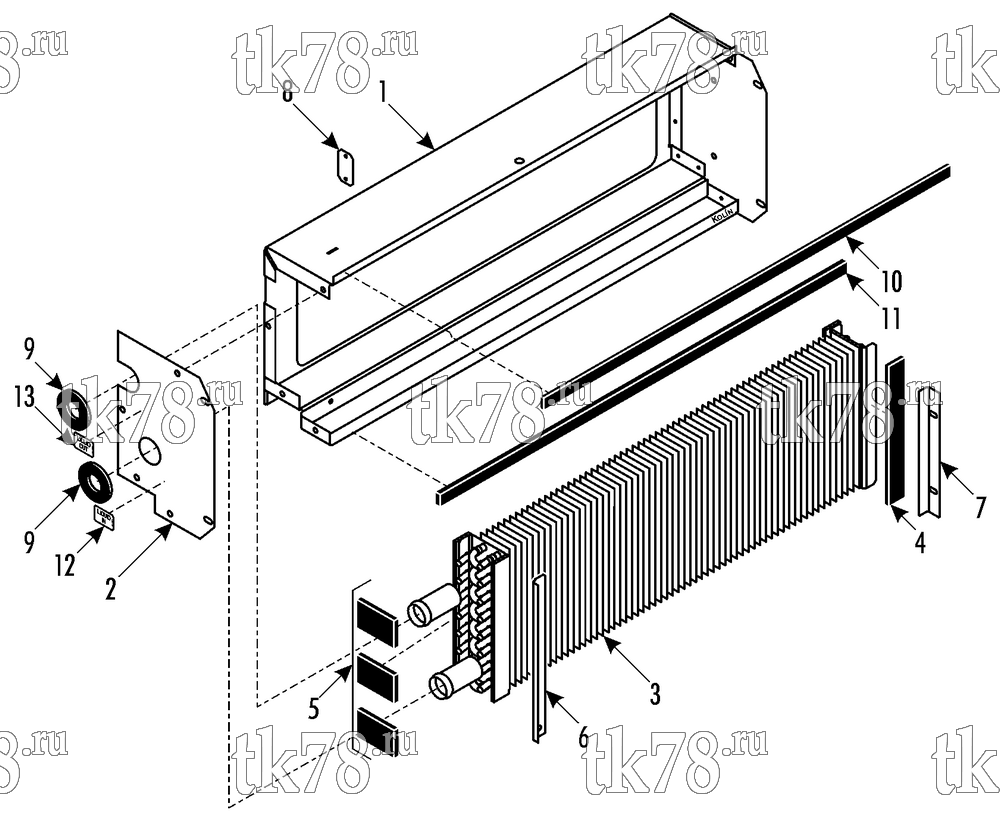

Установкa Thermo King Front Box EUROS схема HEATER MODULE – 210E5
Обновление от: 2/1/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7440 | BASE - weldment | 1 | |
| 55-7340 | SCREW - base | 3 | ||
| 55-7171 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 2 | 92-5590 | PLATE | 1 | |
| 55-7169 | SCREW - base & plate | 9 | ||
| 55-7171 | LOCKWASHER | 9 | ||
| 55-7089 | FLATWASHER | 9 | ||
| 51-1454 | NUT - self-clinching | 9 | ||
| 3 | 67-2198 | HEATER | 1 | |
| 4 | 92-3402 | STRIP - polyester | A/R | |
| 5 | 92-3175 | STRIP - polyester | A/R | |
| 6 | 92-5591 | PLATE | 1 | |
| 51-1270 | STUD - plate, self-clinching | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 7 | 92-5592 | PLATE | 1 | |
| 55-7169 | SCREW - plate | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 8 | 92-5593 | PLUG | 1 | |
| 55-1714 | RIVET - plug | 2 | ||
| 9 | 33-4260 | INSULATION | 2 | |
| 10 | 33-3864 | STRIP - polyester | A/R | |
| 11 | 33-3931 | STRIP - polyester | A/R | |
| 12 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 13 | 91-7550 | NAMEPLATE - Liquid Out | 1 |
