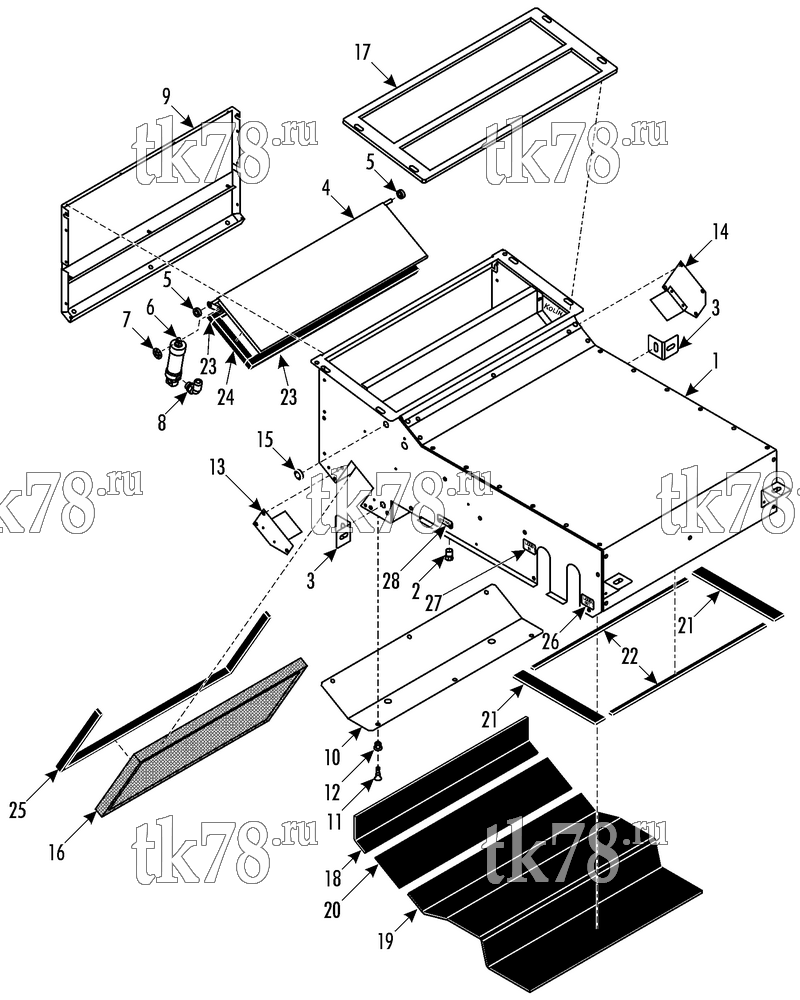

Установкa Thermo King Front Box BLIZZARD схема BASE GROUP – 210F7
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7447 | BASE - weld | 1 | |
| 51-1270 | STUD - self-clinching | 7 | ||
| 2 | 51-290 | NUT - captive | 2 | |
| 3 | 92-5606 | BRACKET | 2 | |
| 55-7691 | SCREW - bracket | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 51-118 | NUT - captive | 2 | ||
| 4 | 92-5607 | FLAP - weld | 1 | |
| 5 | 51-1485 | FLATWASHER (nylon) | 2 | |
| 6 | 92-5305 | CYLINDER | 1 | |
| 55-8316 | SCREW - cylinder | 1 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-7354 | NUT | 1 | ||
| 51-1348 | RING - plastic | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7042 | NUT - hexstop | 1 | ||
| 7 | 51-1350 | WASHER - push-on | 1 | |
| 8 | 61-3423 | FITTING - hose | 1 | |
| 9 | 92-5608 | PLATE - air inlet | 1 | |
| 55-3010 | RIVET - plate | 14 | ||
| 10 | 92-5609 | COVER - plate | 1 | |
| 11 | 51-667 | FASTENER - plastic | 6 | |
| 12 | 51-668 | RECEPTACLE - plastic | 6 | |
| 13 | 92-5610 | PLATE - rear, left | 1 | |
| 14 | 92-5611 | PLATE - rear, right | 1 | |
| 55-7011 | NUT - plate | 7 | ||
| 55-7089 | FLATWASHER | 7 | ||
| 15 | 33-687 | GROMMET (0.125 id) | 1 | |
| 16 | 92-5612 | FILTER | 1 | |
| 17 | 92-5613 | PACKING | 1 | |
| 18 | 92-5614 | INSULATION | 1 | |
| 19 | 92-5615 | INSULATION | 1 | |
| 20 | 92-5629 | INSULATION | 1 | |
| 21 | 33-4261 | STRIP - neoprene | A/R | |
| 22 | 92-3794 | STRIP - neoprene | A/R | |
| 23 | 92-5630 | INSULATION | 2 | |
| 24 | 92-5631 | INSULATION | 2 | |
| 25 | 33-2668 | STRIP - neoprene | A/R | |
| 26 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 27 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 28 | 91-7543 | NAMEPLATE - 24 VDC | 1 |
