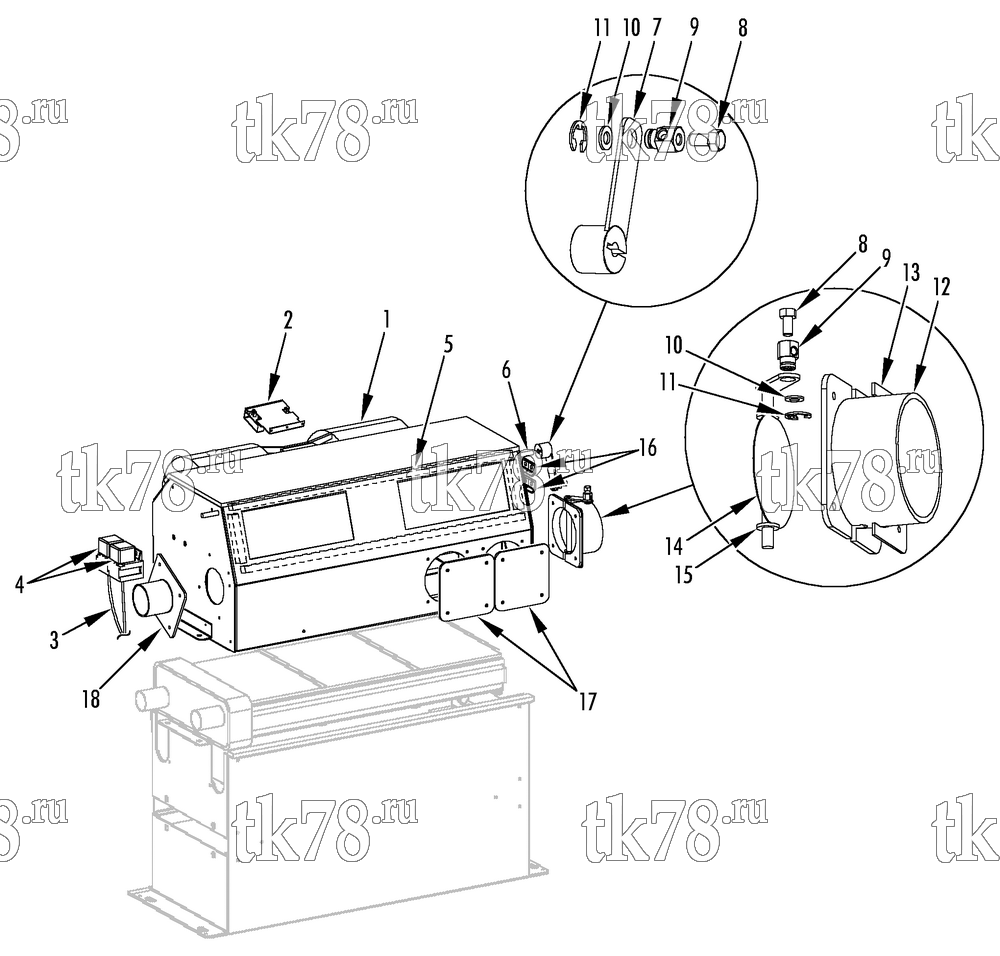

Установкa Thermo King FK Type KAUS L6 24V схема BLOWER & DUCTS – 214G7
Обновление от: 6/2/06
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 41-5476 | BLOWER (24V) | 1 |
| 2 | 41-7350 | CONTROLLER - speed | 1 |
| 92-3053 | BRACKET - resistor | 1 | |
| 41-6230 | RESISTOR | 1 | |
| 3 | 41-7351 | HARNESS | 1 |
| 4 | 41-7352 | RELAY (24V) | 2 |
| 5 | 33-3795 | GASKET - blower | A/R |
| 6 | 92-5776 | FLAP - vane | 1 |
| 51-1348 | SPACER - flap | 2 | |
| 51-1553 | WASHER | 2 | |
| 7 | 92-3052 | LEVER - flap | 1 |
| 8 | 55-7826 | SCREW | 2 |
| 9 | 51-1550 | CLAMP | 2 |
| 10 | 51-1551 | WASHER | 2 |
| 11 | 51-1552 | CLIP - E | 2 |
| 12 | 92-3048 | NOZZLE (70 mm) | 1 |
| 13 | 92-3049 | PLATE - nozzle | 1 |
| 14 | 92-3050 | FLAP - nozzle | 1 |
| 15 | 51-1553 | WASHER | 1 |
| 16 | 92-3051 | CLAMP - cable | 4 |
| 17 | 92-5282 | COVER | 2 |
| 18 | 92-4136 | NOZZLE (44.5 mm) | 1 |
