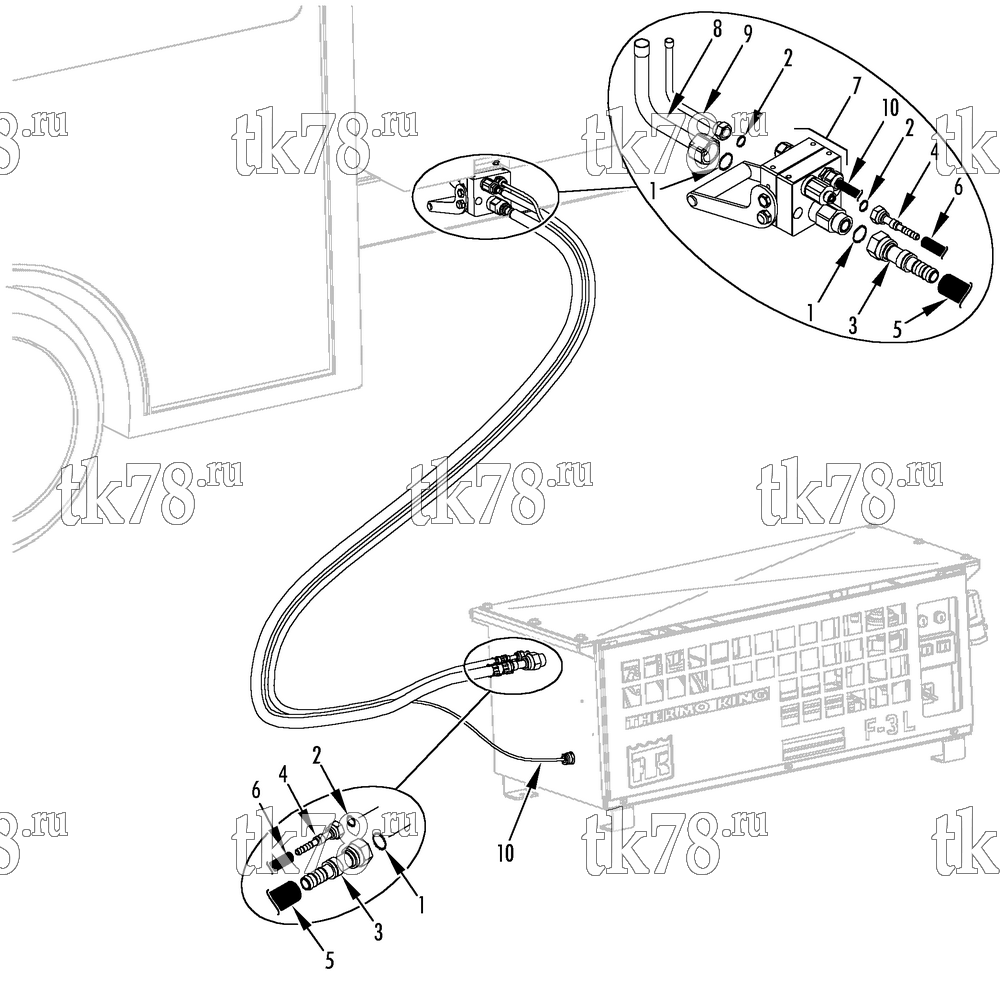

Установкa Thermo King F-2L to F-5L & Cool Station Eutectic схема HOSES AND FITTINGS (F-3L) – 201C10
Обновление от: 5/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1222 | O-RING - suction (3/4 id, #12) | 3 | |
| 2 | 33-1015 | O-RING - liquid (3/8 id, #6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 3 | 51-1165 | FITTING - suction (straight, #12) | 2 | |
| 4 | 51-2482 | FITTING - liquid (straight, #6) | 2 | |
| 5 | 67-1711 | HOSE - suction (#12) | A/R | |
| 6 | 67-1708 | HOSE - liquid (#6) | A/R | |
| 7 | NSS | COULPER - multi (see 201C7) | 1 | |
| 8 | 61-3067 | TUBE - angle (suction) | 1 | |
| 51-808 | NUT - adapter (#12) | 1 | ||
| 9 | 61-3068 | TUBE - angle (liquid) | 1 | |
| 55-9009 | NUT - adapter (#6) | 1 | ||
| 10 | 41-6554 | CABLE - extender (unit to box) | 1 | |
| 41-543 | TERMINAL | 3 |
