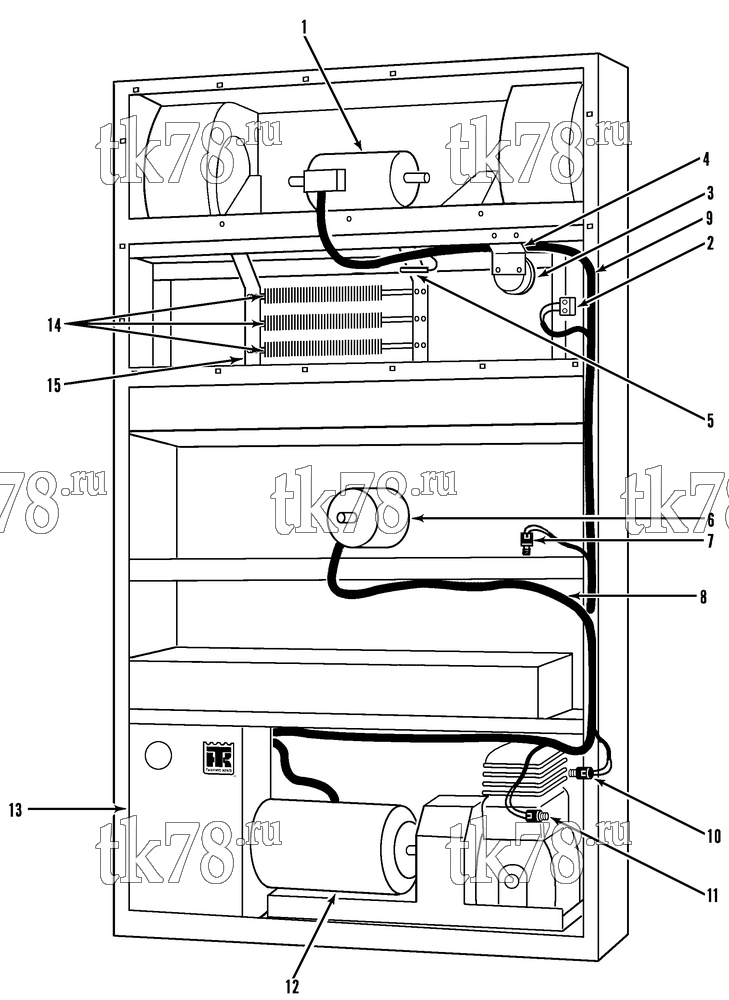

Установкa Thermo King EV1, EV2 & EV3 схема ELECTRICAL GROUP – 88G8
Обновление от: 12/11/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-450 | MOTOR - evaporator (EV1) | 1 | |
| 104-535 | MOTOR - evaporator (EV2 & EV3) | 1 | ||
| 55-2969 | SCREW - motor | 4 | ||
| 55-4727 | WASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 2 | 44-3961 | THERMOSTAT - return air | 1 | |
| Not | 41-1682 | THERMOSTAT - defrost (evaporator) | 1 | |
| 99-9090 | BRACKET - thermostat | 1 | ||
| 55-3029 | SCREW - thermostat | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 3 | 66-2020 | SWITCH - air pressure differential | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 55-3561 | SCREW - switch | 2 | ||
| 33-452 | GROMMET (7/8 id) | 2 | ||
| 33-740 | GROMMET (7/16 id) | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 99-1275 | PROBE - air switch | 1 | ||
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3027 | SCREW - probe | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 99-9094 | BRACKET - probe | 1 | ||
| 55-1329 | SCREW | 2 | ||
| 4 | 99-9093 | BRACKET - switch | 1 | |
| 55-5639 | SCREW - bracket | 2 | ||
| 5 | 44-3627 | SWITCH - high temperature cutout (EV1 & EV3) | 1 | |
| 55-3029 | SCREW - thermostat | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 6 | 104-448 | MOTOR - condenser (EV1) | 1 | |
| 104-533 | MOTOR - condenser (EV2 & EV3) | 1 | ||
| 7 | 44-5840 | SWITCH - 2 speed condenser fan | 1 | |
| 8 | 44-6962 | HARNESS - fan (condenser, EV1) | 1 | |
| 44-9791 | HARNESS - fan (condenser, EV2 & EV3) | 1 | ||
| 9 | 44-6963 | HARNESS - evaporator fan (EV1) | 1 | |
| 44-9792 | HARNESS - evaporator fan (EV2) | 1 | ||
| 44-9808 | HARNESS - evaporator fan (EV3) | 1 | ||
| 10 | 44-5833 | SWITCH - hpco | 1 | |
| 11 | 41-675 | SWITCH - lpco | 1 | |
| 12 | 104-449 | MOTOR - compressor (EV1) | 1 | |
| 104-534 | MOTOR - compressor (EV2) | 1 | ||
| 104-536 | MOTOR - compressor (EV3) | 1 | ||
| 13 | NSS | BOX - control (EV1, see 88G9) | 1 | |
| NSS | BOX - control (EV2, see 88G6) | 1 | ||
| NSS | BOX - control (EV3, see 88G7) | 1 | ||
| 14 | 45-1226 | HEATER (1000W, 240V, EV1 & EV3) | 3 | |
| 44-4010 | JUMPER (EV1 & EV3) | 4 | ||
| 44-6964 | HARNESS - heater (EV1 & EV3) | 4 | ||
| 55-2977 | SCREW - heater to angle | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 6 | ||
| 99-9092 | ANGLE - heater (EV1 & EV3) | 6 | ||
| 55-2977 | SCREW - angle to bracket | 12 | ||
| 55-2086 | FLATWASHER | 24 | ||
| 55-4953 | NUT | 12 | ||
| 15 | 99-9091 | BRACKET - heater (EV1 & EV3) | 2 | |
| 55-2977 | SCREW - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 6 |
