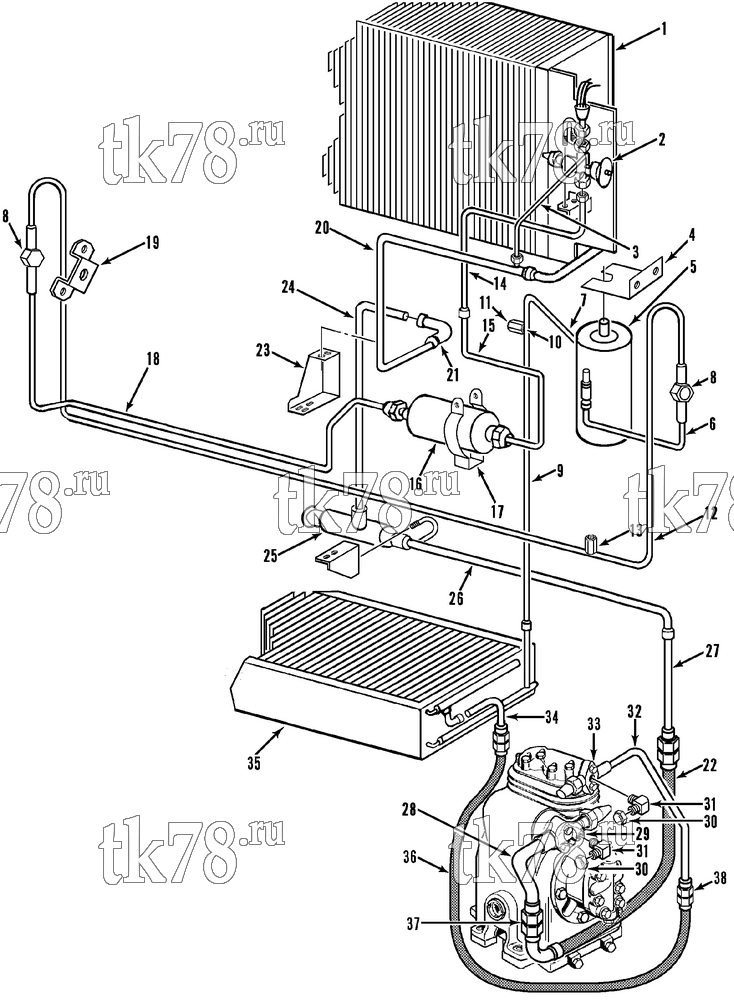

Установкa Thermo King EV1, EV2 & EV3 схема REFRIGERATION GROUP (EV2 & EV3) – 88G5
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-789 | COIL - evaporator | 1 | |
| 2 | 66-3374 | VALVE - expansion | 1 | |
| 66-5943 | ELEMENT | 1 | ||
| 55-3547 | U-BOLT - valve | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 99-9071 | BRACKET - expansion valve | 1 | ||
| 3 | 66-6285 | TUBE - equalizer | 1 | |
| 55-303 | NUT | 2 | ||
| 4 | 99-9076 | BRACKET - receiver tank | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 5 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 6 | 66-6284 | TUBE | 1 | |
| 7 | 66-4490 | TUBE - receiver inlet | 1 | |
| 8 | 66-1188 | INDICATOR - liquid | 2 | |
| 9 | 66-4493 | TUBE - receiver to tank | 1 | |
| 91-3613 | BRACKET - liquid line | 1 | ||
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 55-549 | CLAMP (0.5 in dia) | 1 | ||
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 10 | 55-3295 | FITTING - saddle | 1 | |
| 11 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 12 | 66-4495 | TUBE - sight glass to sight glass | 1 | |
| 55-549 | CLAMP (0.5 in dia) | 4 | ||
| 55-2991 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 13 | 66-3571 | FITTING - saddle | 1 | |
| 14 | 66-4498 | TUBE - from expansion valve | 1 | |
| 55-302 | NUT | 1 | ||
| 15 | 66-4497 | TUBE - from dehydrator | 1 | |
| 55-302 | NUT | 1 | ||
| 16 | 66-4857 | DEHYDRATOR | 1 | |
| 17 | 55-2365 | HANGER - dehydrator | 2 | |
| 55-2977 | SCREW - dehydrator | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-3675 | SCREW - hanger | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 66-4496 | TUBE - dehydrator to sight glass | 1 | |
| 55-302 | NUT | 1 | ||
| 55-549 | CLAMP (0.5 in dia) | 2 | ||
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 19 | 99-9077 | BRACKET - sight glass | 2 | |
| 33-1217 | GROMMET | 2 | ||
| 55-2991 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 20 | 66-4499 | TUBE - suction | 1 | |
| 66-874 | FITTING | 1 | ||
| 21 | 55-5085 | ELBOW | 1 | |
| 22 | 66-6536 | HOSE - suction | 1 | |
| 33-594 | O-RING (7/8 id) | 2 | ||
| 23 | 99-9079 | BRACKET - solenoid valve | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 24 | 66-6733 | TUBE | 1 | |
| 25 | 66-3860 | VALVE - pressure regulator | 1 | |
| 55-3009 | U-BOLT - valve | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 99-9078 | BRACKET - cpr valve | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 26 | 66-4500 | TUBE | 1 | |
| 27 | 66-6538 | TUBE - suction | 1 | |
| 28 | 66-6542 | TUBE - suction (service valve) | 1 | |
| 29 | 66-1916 | VALVE - service (suction) | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 33-2542 | GASKET | 1 | ||
| 55-201 | SCREW - valve | 2 | ||
| 55-895 | FLATWASHER | 2 | ||
| 30 | 55-1983 | CAP | 2 | |
| 33-768 | GASKET | 2 | ||
| 31 | 55-308 | ELBOW | 1 | |
| 32 | 66-6540 | TUBE - discharge (service valve) | 1 | |
| 33 | 66-3942 | VALVE - service (discharge) | 1 | |
| 33-2542 | GASKET | 1 | ||
| 55-3674 | SCREW - valve | 2 | ||
| 55-896 | FLATWASHER | 2 | ||
| 34 | 66-6539 | TUBE - condenser | 1 | |
| 35 | 67-788 | COIL - condenser | 1 | |
| 55-1587 | SCREW - condenser | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 36 | 66-6537 | HOSE - condenser to discharge valve | 1 | |
| 37 | 55-3808 | ADAPTER - tube | 1 | |
| 38 | 55-3211 | ADAPTER - tube | 1 | |
| 33-2019 | O-RING (3/8) | 2 | ||
|
10-33-2019K | Набор уплотнителей болтов головки компрессора (24шт) | 2 280 ₽ |
|
|
10-33-2019 | Уплотнитель болта головки компрессора | 510 ₽ |
|
