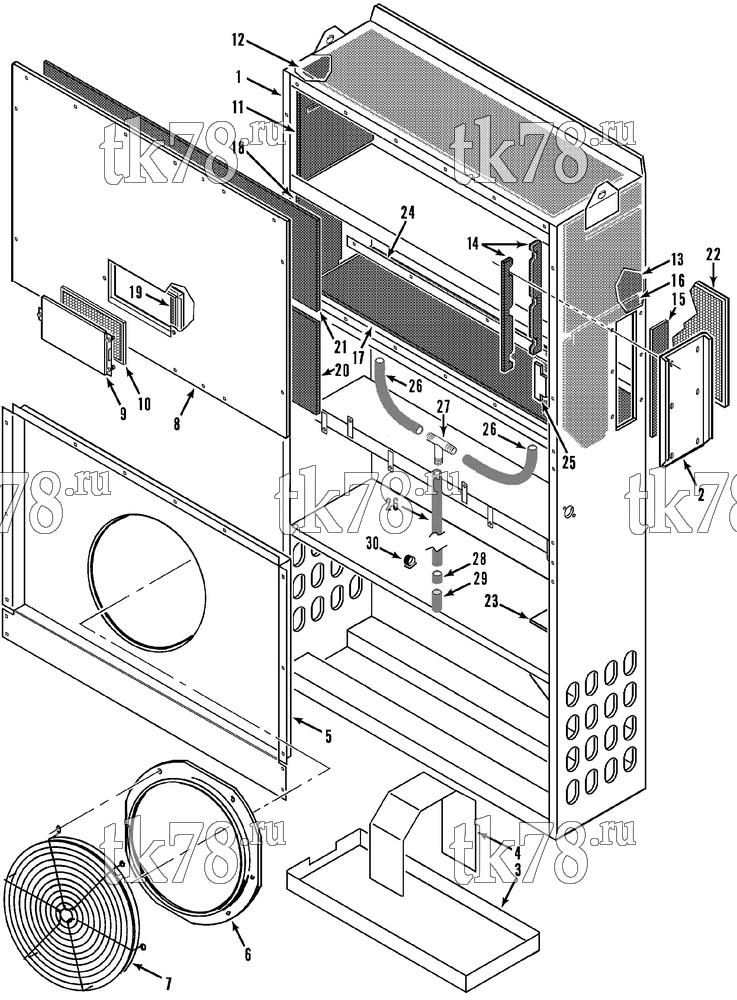

Установкa Thermo King EV1, EV2 & EV3 схема STRUCTURAL GROUP – 88G11
Обновление от: 5/15/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3014 | FRAME (EV1) | 1 | |
| 98-4279 | FRAME (EV2) | 1 | ||
| 98-4284 | FRAME (EV3) | 1 | ||
| 2 | 99-9082 | COVER - access (filter) | 2 | |
| 55-4976 | SCREW - cover | 12 | ||
| 3 | 91-4369 | TRAY - motor & compressor (EV2) | 1 | |
| 91-5135 | TRAY - motor & compressor (EV3) | 1 | ||
| 55-7492 | SPACER - motor | 2 | ||
| 55-7493 | MOUNT - vibration | 8 | ||
| 55-7494 | SPACER - clamping tray | 4 | ||
| 55-7495 | WASHER - special | 8 | ||
| 55-5208 | SCREW | 4 | ||
| 55-5050 | NUT | 4 | ||
| 55-5121 | INSERT - threaded | 4 | ||
| 4 | 99-9070 | SHIELD - coupling | 1 | |
| 55-1587 | SCREW - shield | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 5 | 98-3018 | PANEL - orifice | 1 | |
| 55-2977 | SCREW - panel | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 6 | 98-2357 | ORIFICE | 1 | |
| 7 | 98-2694 | GUARD - fan | 1 | |
| 55-2977 | SCREW - guard & orifice | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-3045 | LOCKWASHER - dome | 6 | ||
| 55-3059 | NUT | 6 | ||
| 8 | 98-3017 | COVER - evaporator (incl 9 & 10, EV1 & EV3) | 1 | |
| 98-4280 | COVER - evaporator (EV2) | 1 | ||
| 55-2977 | SCREW - cover | 21 | ||
| 55-2086 | FLATWASHER | 21 | ||
| 55-1800 | LOCKWASHER | 21 | ||
| 9 | 91-3816 | DOOR - fresh air (EV1 & EV3) | 1 | |
| 55-5396 | SCREW - door (EV1 & EV3) | 3 | ||
| 10 | 91-3817 | FILTER - air (fresh, EV1 & EV3) | 1 | |
| 11 | 91-3699 | INSULATION - frame (upper, left) | 1 | |
| 12 | 91-3700 | INSULATION - frame (top) | 1 | |
| 13 | 91-3701 | INSULATION - frame (upper, right) | 1 | |
| 14 | 91-3702 | INSULATION - filter access | 4 | |
| 15 | 91-3703 | INSULATION - filter access | 2 | |
| 16 | 91-3704 | INSULATION - frame (lower, right) | 1 | |
| 17 | 91-3705 | INSULATION - evaporator coil (floor) | 1 | |
| 18 | 91-3706 | INSULATION - frame (lower, left) | 1 | |
| 19 | 91-3707 | INSULATION - filter bracket (EV1 & EV3) | 1 | |
| 20 | 91-3708 | INSULATION - evaporator door (lower) | 1 | |
| 21 | 91-3709 | INSULATION - evaporator door (upper) | 1 | |
| 22 | 99-9080 | FILTER - air | 1 | |
| 23 | 91-4370 | PLATE - air block (condenser) | 1 | |
| 55-1587 | SCREW - plate | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 33-452 | GROMMET | 4 | ||
| 24 | 99-9072 | PLATE - cover (evaporator) | 1 | |
| 25 | 99-9073 | PLATE - cover (evaporator ext, EV1 & EV2) | 1 | |
| 26 | 11-3305 | SLEEVING - drain hose | A/R | |
| 27 | 55-6349. | TEE | 1 | |
| 55-6726 | CLAMP - hose | 5 | ||
| 28 | 66-4489 | TUBE - drain | 1 | |
| 29 | 66-1273 | VALVE - check | 1 | |
| 30 | 91-2633 | CLIP - hose | 1 |
