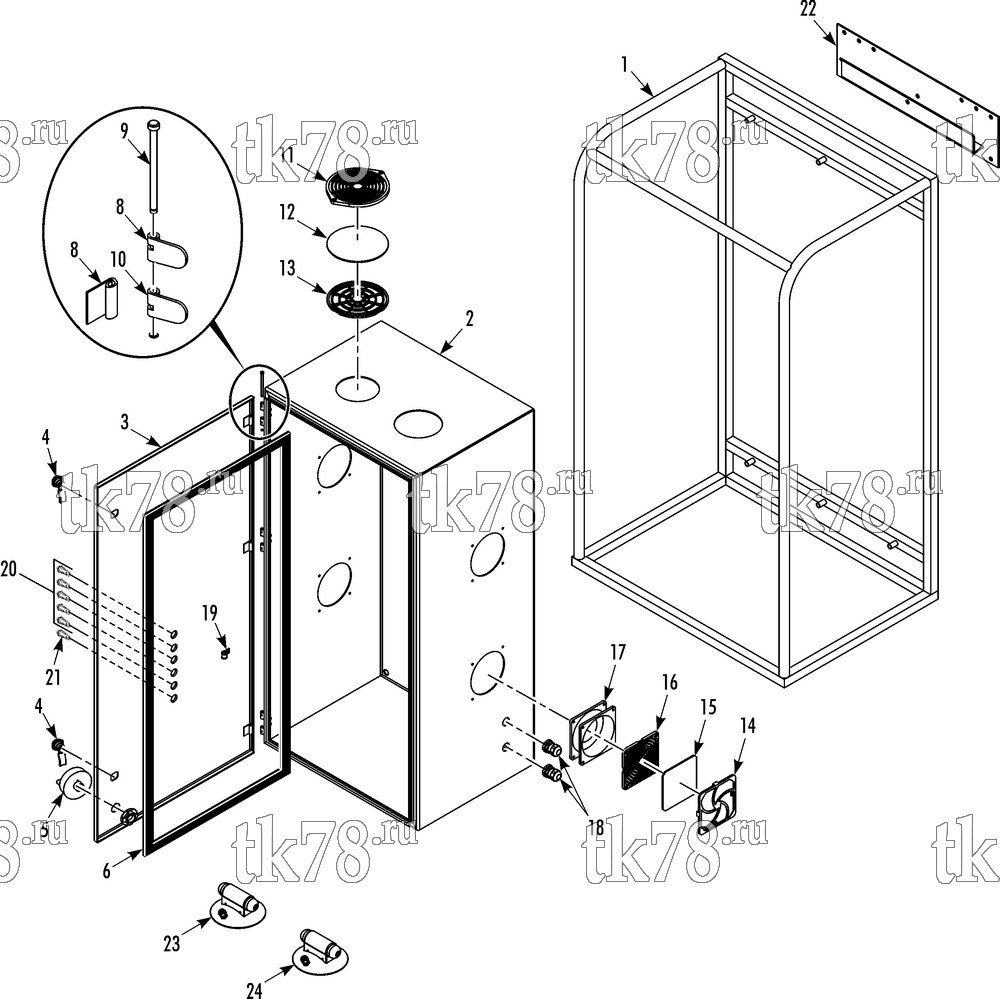

Установкa Thermo King EMS-3300 схема STRUCTURAL COMPONENTS – 235D2
Обновление от: 12/14/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 651-226 | FRAME | 1 | |
| 2 | 651-227 | ENCLOSURE | 1 | |
| 3 | 651-312 | DOOR | 1 | |
| 651-241 | HARNESS - door | 1 | ||
| 4 | 92-4638 | LATCH - pawl action | 2 | |
| 5 | 651-164 | HANDLE - door interlock | 1 | |
| 6 | 651-253 | GASKET | 1 | |
| 7 | 651-252 | HINGE - door | 3 | |
| 8 | 651-105 | HINGE - enclosure | 3 | |
| 55-3696 | SCREW - hinge | 6 | ||
| 9 | 651-166 | PIN - hinge | 3 | |
| 10 | 651-165 | CLIP - pin | 3 | |
| 11 | 651-149 | GUARD - filter (turbine) | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 12 | 651-151 | FILTER (turbine) | 4 | |
| 13 | 651-150 | RETAINER - filter (turbine) | 4 | |
| 14 | 651-250 | RETAINER - filter (fan) | 4 | |
| 51-1839 | SCREW | 16 | ||
| 55-3013 | FLATWASHER | 16 | ||
| 55-5754 | NUT | 16 | ||
| 15 | 651-249 | FILTER (fan) | 4 | |
| 16 | 651-248 | GUARD - filter (fan) | 4 | |
| 17 | 651-247 | FAN | 4 | |
| 651-256 | HARNESS - fan | 4 | ||
| 18 | 55-5900 | CONNECTOR - liquid tite | 2 | |
| 19 | 55-3487 | CLAMP (.437 dia) | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER | 1 | ||
| 55-1801 | NUT | 2 | ||
| 20 | 651-163 | LED - green | 5 | |
| 21 | 651-162 | LED - red | 1 | |
| 22 | 651-175 | BRACKET | 1 | |
| 651-286 | PIN - clevis | 1 | ||
| 651-287 | PIN - cotter | 1 | ||
| 23 | 651-261 | SENSOR - ozone (regular atmosphere) | 1 | |
| 651-258 | SENSOR - head | 1 | ||
| 651-260 | BASE - sensor | 1 | ||
| 24 | 651-262 | SENSOR - ozone (controlled atmosphere) | 1 | |
| 651-259 | SENSOR - head | 1 | ||
| 651-260 | BASE - sensor | 1 | ||
| 651-257 | CABLE (500 ft) | A/R |
