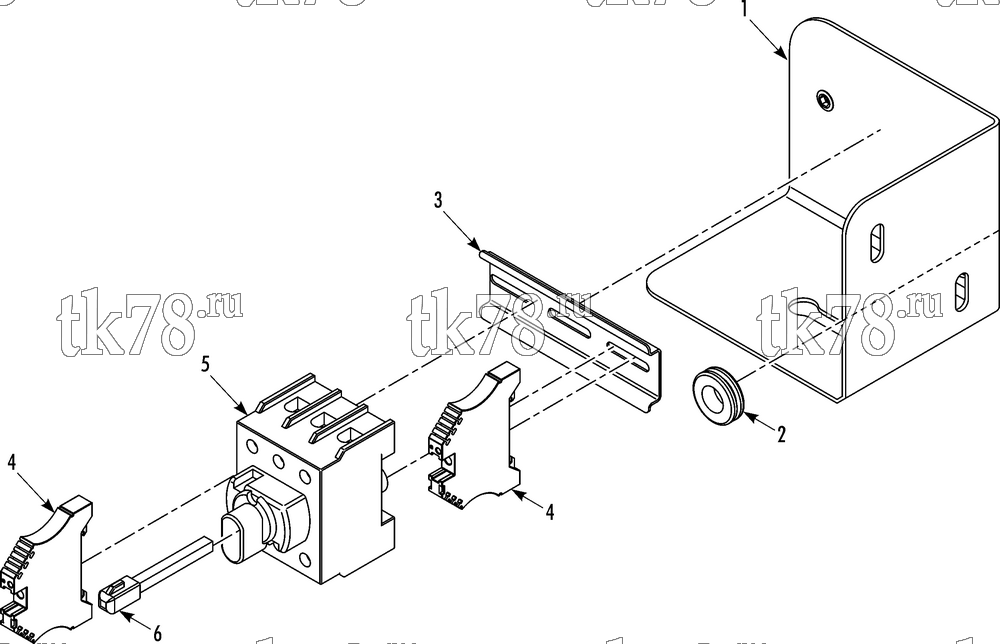

Установкa Thermo King EMS-3100A, 3100B & 3100C схема DISCONNECT SWITCH – 235B5
Обновление от: 12/7/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 651-170 | BRACKET - switch | 1 | |
| 55-9754 | INSERT | 2 | ||
| 2 | 33-1215 | GROMMET | 1 | |
| 3 | 651-171 | RAIL - din | 1 | |
| 55-2989 | SCREW | 2 | ||
| 51-1399 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 4 | 651-178 | CLAMP - end | 2 | |
| 5 | 651-172 | SWITCH - motor | 1 | |
| 6 | 651-276 | HANDLE - door | 1 |
