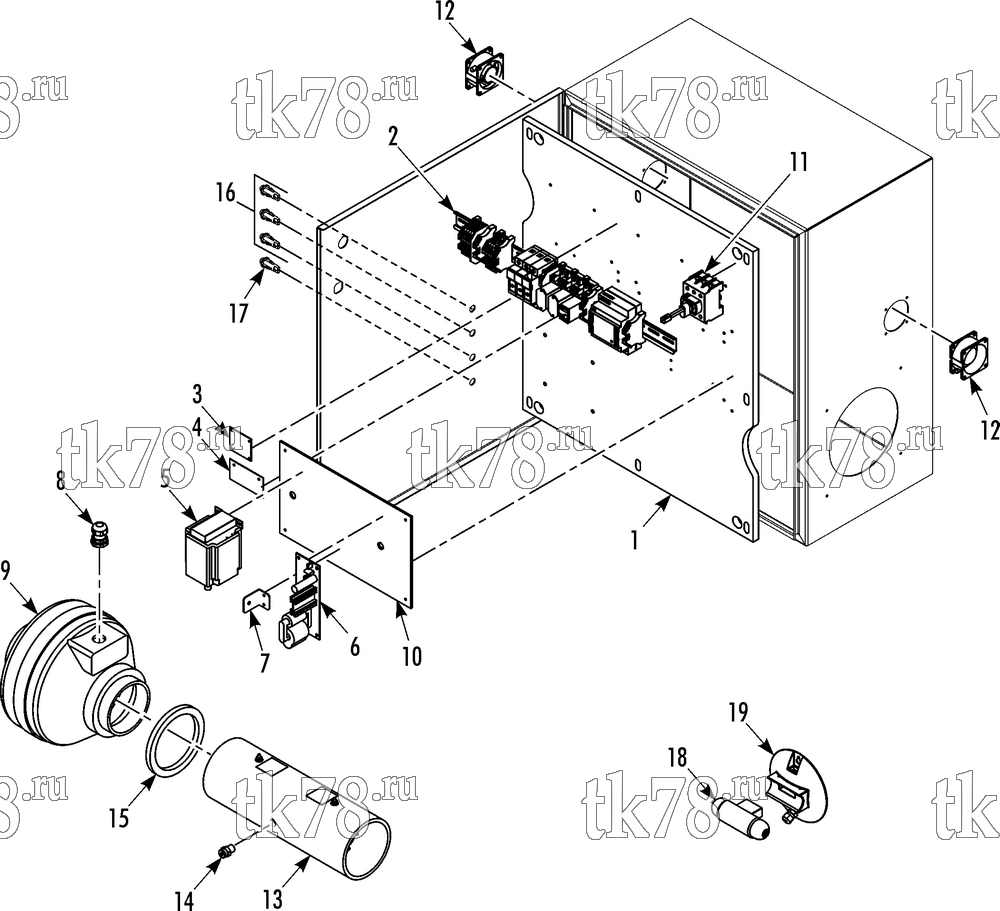

Установкa Thermo King EMS-3100A, 3100B & 3100C схема ELECTRICAL COMPONENTS (701503) – 235B3
Обновление от: 12/18/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 651-107 | SUBPANEL | 1 | |
| 2 | 651-116 | RAIL - din (see grid 235B3) | 1 | |
| 55-2201 | SCREW | 4 | ||
| 51-1399 | LOCKWASHER | 4 | ||
| 55-2989 | FLATWASHER | 4 | ||
| 3 | 651-133 | BOARD - RDOC | 1 | |
| 651-143 | SCREW | 4 | ||
| 651-136 | SPACER - nylon | 4 | ||
| 651-140 | WASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 4 | 651-134 | BOARD - CPA | 1 | |
| 651-143 | SCREW | 2 | ||
| 651-136 | SPACER - nylon | 2 | ||
| 651-140 | WASHER | 2 | ||
| 55-2361 | NUT | 2 | ||
| 5 | 651-112 | TRANSFORMER - cup (assembly, EMS-3100B) | 1 | |
| 651-113 | TRANSFORMER - cup | 1 | ||
| 651-298 | BOOT | 1 | ||
| 44-9589 | RECEPTACLE (2-pin see 112D9) | 1 | ||
| 651-295 | TERMINAL - ring | 1 | ||
| 44-7245 | TERMINAL - ring | 1 | ||
| 41-4409 | TERMINAL - ring | 1 | ||
| 651-296 | SCREW (1/4 dia) | 1 | ||
| 651-303 | STANDOFF | 1 | ||
| 55-2086 | FLATWASHER (.125 id) | 1 | ||
| 55-4396 | SCREW (# 6 ) | 2 | ||
| 651-198 | STANDOFF | 2 | ||
| 55-3013 | FLATWASHER (# 6) | 2 | ||
| 6 | 651-108 | POWER - supply (assembly, EMS-3100B) | 1 | |
| 651-110 | POWER - supply | 1 | ||
| 651-109 | BOOT | 1 | ||
| 651-111 | HARNESS (ET-100) | 1 | ||
| 44-9589 | RECEPTACLE (2-pin see 112D9) | 1 | ||
| 41-4850 | TERMINAL | 2 | ||
| 41-4409 | TERMINAL - ring | 1 | ||
| 44-7245 | TERMINAL - ring | 1 | ||
| 55-5083 | SCREW | 4 | ||
| 651-137 | SPACER - nylon | 4 | ||
| 51-1399 | LOCKWASHER | 4 | ||
| 55-5754 | NUT | 4 | ||
| 7 | 651-135 | BRACKET - ground | 1 | |
| 55-4693 | SCREW - bracket | 2 | ||
| 55-3000 | SCREW | 1 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 8 | 55-5111 | CONNECTOR - liquid tite | 1 | |
| 9 | 651-114 | TURBINE | 1 | |
| 651-242 | HARNESS - turbine | 1 | ||
| 44-9589 | RECEPTACLE (2-pin see 112D9) | 1 | ||
| 55-2332 | BANDWRAP | A/R | ||
| 10 | 651-115 | COVER (power supply) | 1 | |
| 651-141 | SCREW | 4 | ||
| 651-139 | SPACER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 51-1399 | LOCKWASHER | 4 | ||
| 11 | NSS | SWITCH - disconnect (see grid 235B5) | 1 | |
| 55-2086 | FLATWASHER | 3 | ||
| 51-1184 | LOCKWASHER | 3 | ||
| 55-1801 | NUT | 3 | ||
| 12 | 651-155 | FAN - assembly | 2 | |
| 651-156 | FAN | 1 | ||
| 41-1507 | CONNECTOR - in line (2 term) | 1 | ||
| 13 | 651-101 | REACTOR | 1 | |
| 14 | 651-174 | SENSOR - light (RDOC) | 1 | |
| 15 | 651-157 | GASKET - turbine | 1 | |
| 16 | 651-163 | LED - green | 3 | |
| 17 | 651-162 | LED - red | 1 | |
| 651-169 | HARNESS - door | 1 | ||
| 18 | 651-261 | SENSOR (regular atmosphere) | 1 | |
| 651-262 | SENSOR (controlled atmosphere) | 1 | ||
| 19 | 651-260 | BASE - sensor | 2 | |
| 651-305 | CABLE - sensor (250 ft) | A/R |
