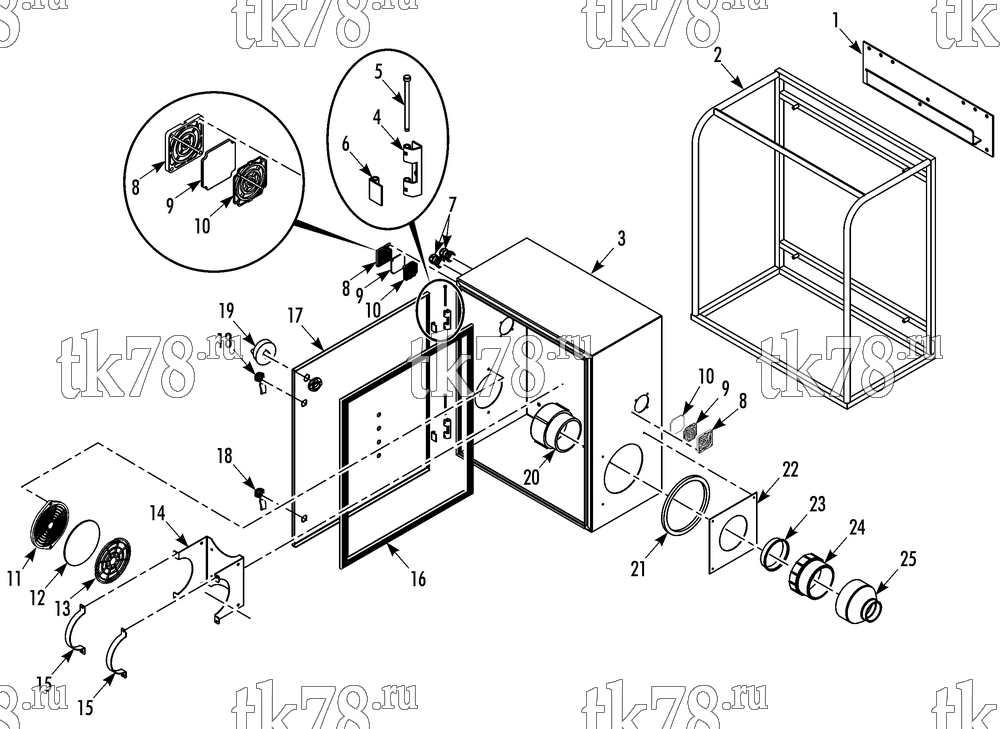

Установкa Thermo King EMS-3100A, 3100B & 3100C схема ENCLOSURE – 235B2
Обновление от: 12/14/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 651-304 | BRACKET - hanger | 1 | |
| 651-286 | PIN - clevis | 1 | ||
| 651-287 | PIN - cotter | 1 | ||
| 2 | 651-106 | FRAME | 1 | |
| 55-2641 | FLATWASHER | 4 | ||
| 51-1370 | LOCKWASHER | 4 | ||
| 55-2498 | NUT | 4 | ||
| 3 | 651-104 | ENCLOSURE | 1 | |
| 4 | 651-105 | HINGE | 2 | |
| 305-1555 | SCREW - hinge | 4 | ||
| 5 | 651-166 | PIN - hinge | 2 | |
| 6 | 651-165 | CLIP - pin | 2 | |
| 7 | 55-5900 | CONNECTOR - liquid tite | 2 | |
| 8 | 651-154 | RETAINER | 2 | |
| 651-251 | SCREW | 8 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 8 | ||
| 9 | 651-153 | FILTER | 2 | |
| 10 | 651-152 | GUARD | 2 | |
| 11 | 651-150 | RETAINER | 1 | |
| 55-3564 | SCREW | 2 | ||
| 12 | 651-151 | FILTER | 1 | |
| 13 | 651-149 | GUARD | 1 | |
| 14 | 651-130 | BRACKET - turbine | 1 | |
| 651-236 | FLATWASHER | 4 | ||
| 651-145 | NUT | 4 | ||
| 15 | 651-131 | CLAMP - turbine | 2 | |
| 651-132 | GASKET - turbine bracket | 2 | ||
| 55-2989 | SCREW | 4 | ||
| 51-1399 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 16 | 651-161 | GASKET - door | 1 | |
| 17 | 651-160 | DOOR | 1 | |
| 651-252 | HINGE | 2 | ||
| 55-2239 | CLAMP (.375 dia) | 1 | ||
| 55-2086 | FLATWASHER - clamp | 1 | ||
| 51-1184 | LOCKWASHER - clamp | 1 | ||
| 55-1801 | NUT - clamp | 1 | ||
| 18 | 92-4638 | LATCH - pawl action | 2 | |
| 19 | 651-164 | HANDLE - door | 1 | |
| 20 | 651-167 | ADAPTER - male | 1 | |
| 21 | 651-158 | GASKET | 1 | |
| 22 | 651-159 | COVER | 1 | |
| 55-3511 | SCREW | 4 | ||
| 51-1399 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 23 | 651-168 | CAP - end | 1 | |
| 24 | 651-302 | COUPLER | 1 | |
| 25 | 651-301 | REDUCER | 1 |
