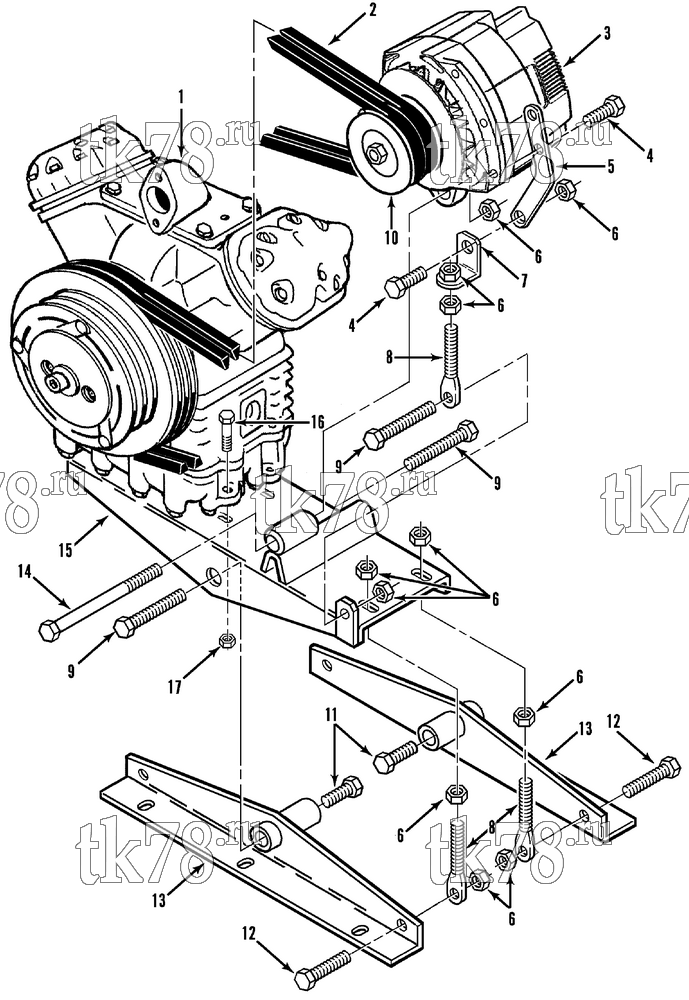

Установкa Thermo King E4-M1, M2 & M3 схема COMPRESSOR/ALTERNATOR MOUNTING GROUP (M2) – 116B4
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 2 | 78-339 | BELT - compressor to alternator (until 4/94) | 2 | |
| 10-78-339 | Ремень генератора, SB-II/III 50 | 3 540 ₽ |
|
|
| PP-78-339 | Ремень генератора, SB-II/III 50 | 1 530 ₽ |
|
|
| 78-941 | BELT - compressor to alternator (after 4/94) | 1 | ||
| 3 | 41-3021 | ALTERNATOR (24V, 125 amp, see 67D13) | 1 | |
| US-41-3021 | Генератор 150 А | 141 810 ₽ |
|
|
| 10-41-3021 | Генератор 24В, 150А | 92 860 ₽ |
|
|
| 4 | 55-3486 | SCREW - alternator | 3 | |
| 55-2159 | LOCKWASHER | 3 | ||
| 55-2173 | FLATWASHER | 3 | ||
| 5 | 91-1031 | BRACKET - alternator adjusting | 1 | |
| 6 | 55-2166 | NUT - eyebolt (alternator bracket) | 1 | |
| 7 | 91-1032 | BRACKET - alternator adjusting | 1 | |
| 8 | 92-6932 | BOLT - eye | 3 | |
| 9 | 91-1033 | SPACER | 3 | |
| 10 | 55-2976 | SCREW - eye bolt & base | 3 | |
| 55-2173 | FLATWASHER | 3 | ||
| 55-2159 | LOCKWASHER | 3 | ||
| 11 | 55-6750 | SCREW - backup | 2 | |
| 10-55-6750 | Пробка | 1 660 ₽ |
|
|
| 12 | 55-2747 | SCREW - base & eye bolt | 2 | |
| 55-2173 | FLATWASHER | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 13 | 91-1030 | BASE | 2 | |
| 14 | 55-5702 | SCREW - alternator | 1 | |
| 15 | 98-3536 | PLATE - compressor/alternator | 1 | |
| 16 | 55-3423 | SCREW - compressor | 4 | |
| 55-399 | WASHER - special | 4 | ||
| 17 | 55-3122 | NUT - compressor | 4 | |
| 55-2200 | LOCKWASHER | 4 | ||
| 55-2221 | FLATWASHER | 4 | ||
| 18 | 77-1612 | PULLEY - alternator (4.10 od, 2A groove until 4/94) | 1 | |
| 77-1240 | PULLEY - alternator (3.25 od, 2A groove, after 4/94) | 1 |
