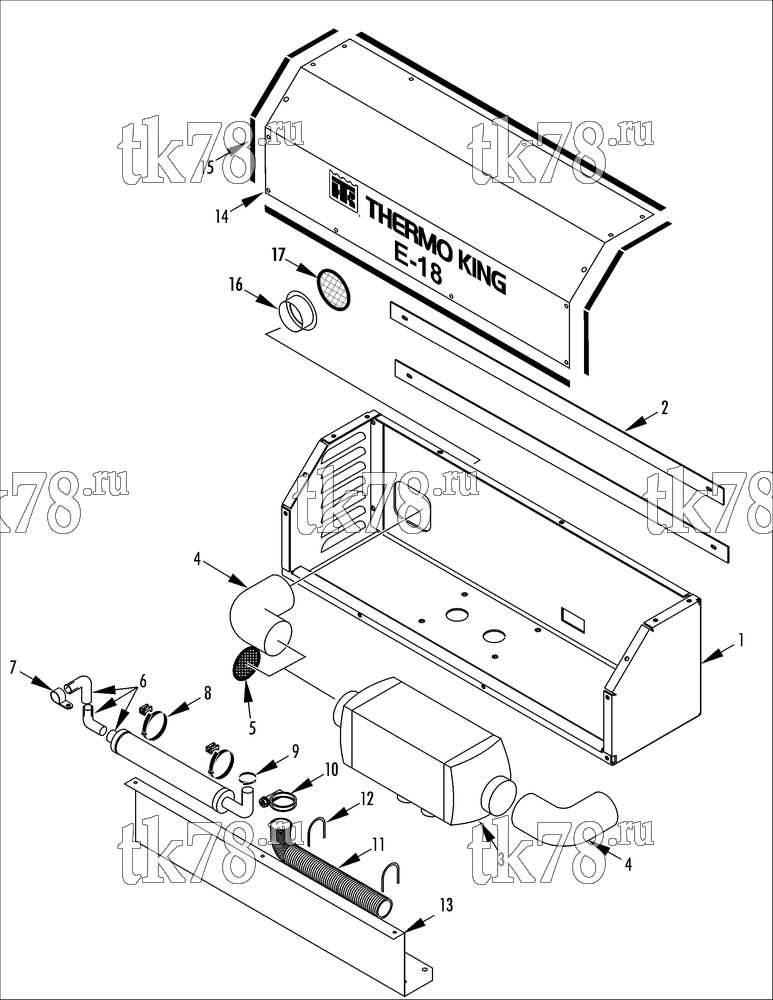

Установкa Thermo King E-Series Cargo Heater схема E-18 CARGO HEATER – 226D5
Обновление от: 1/8/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 80-213 | KIT - E-18 Cargo Heater | 1 | ||
| 1 | 98-7946 | FRAME - heater | 1 | |
| 2 | 92-6620 | PLATE - heater mount | 2 | |
| 55-3413 | SCREW - unit mounting | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-4967 | NUT | 4 | ||
| 3 | 80-213 | HEATER (Espar D5) | 1 | |
| 4 | 81-419 | ELBOW | A/R | |
| 85-254 | CLAMP - elbow | 2 | ||
| 5 | 41-8096 | GRILLE | 1 | |
| 6 | 92-6764 | SILENCER - intake | 1 | |
| 7 | 55-7504 | CLAMP - silencer | 1 | |
| 55-667 | SCREW - clamp | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 55-5292 | NUT | 1 | ||
| 8 | 99-6093 | MOUNT - bandwrap | 2 | |
| 55-2331 | BANDWRAP | 2 | ||
| 9 | 51-1237 | CLAMP - intake hose | 1 | |
| 10 | 51-1734 | CLAMP - exhaust hose | 1 | |
| 11 | 92-6765 | HOSE - exhaust | 1 | |
| 12 | 99-500 | U-BOLT | 2 | |
| 55-5292 | NUT | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 13 | 92-6619 | SHIELD - heat | 1 | |
| 14 | 92-6618 | COVER - heater (nameplates, see 222G1) | 1 | |
| 15 | 92-6604 | STRIP - neoprene | A/R | |
| 55-2977 | SCREW - cover | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-1800 | LOCKWASHER | 20 | ||
| 16 | 81-516 | FLANGE - outlet & inlet | 2 | |
| 17 | 89-521 | SCREEN - flange | 2 |
