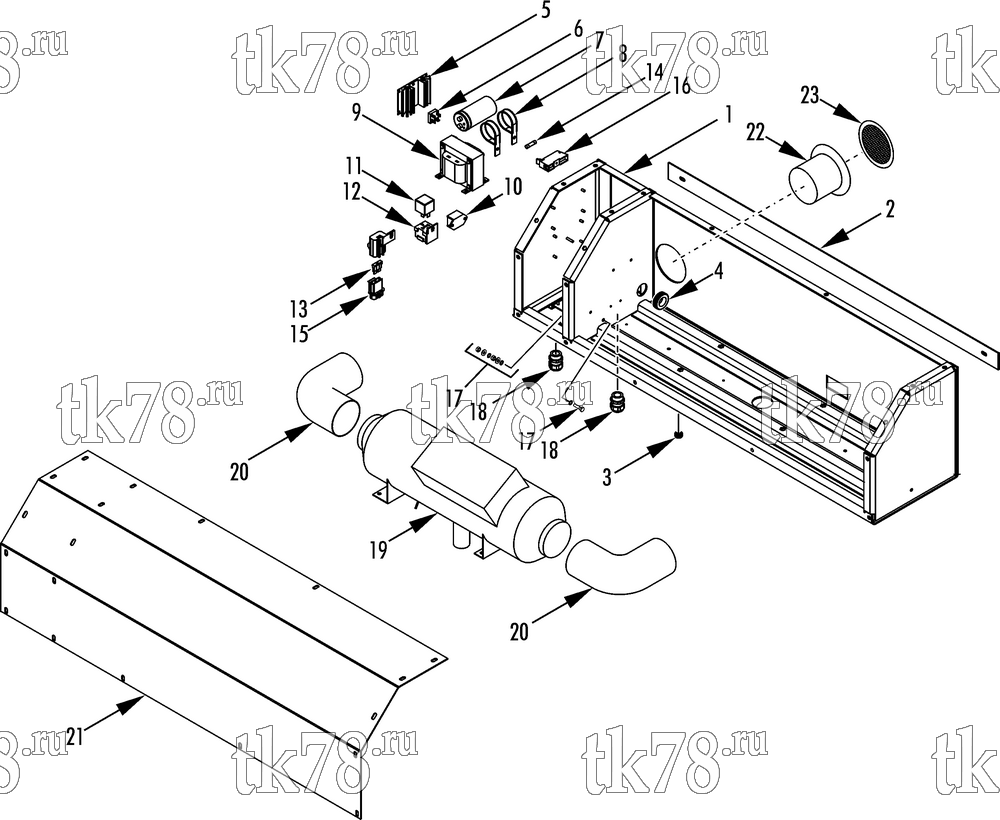

Установкa Thermo King E-Series Cargo Heater схема E-28 CARGO HEATER – 221H4
Обновление от: 1/21/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 80-210 | E-28 CARGO HEATER | 1 | ||
| 1 | 98-7780 | FRAME - heater | 1 | |
| 2 | 92-6231 | PLATE - heater mount | 2 | |
| 55-3413 | SCREW - unit mounting | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-4967 | NUT | 4 | ||
| 3 | 33-1692 | GROMMET - fuel line | 1 | |
| 4 | 33-316 | GROMMET - harness | 1 | |
| 5 | 92-6232 | HEAT SINK | 1 | |
| 55-431 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2752 | NUT | 4 | ||
| 6 | 41-363 | RECTIFIER | 1 | |
| 203-454 | MASTIC - heat transfer | A/R | ||
| 55-431 | FLATWASHER | 9 | ||
| 55-1511 | LOCKWASHER | 9 | ||
| 55-2752 | NUT | 9 | ||
| 7 | 41-1873 | CAPACITOR (33,000 MFD) | 1 | |
| 41-8769 | CAPACITOR (100,000 MFD) | 1 | ||
| 8 | 55-6808 | CLAMP - capacitor | 2 | |
| 55-2366 | SCREW - clamp | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-3519 | NUT | 2 | ||
| 9 | 41-8322 | TRANSFORMER | 1 | |
| 55-431 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2752 | NUT | 4 | ||
| 10 | 44-8680 | FILTER - power | 1 | |
| 55-2366 | SCREW - filter | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-3519 | NUT | 2 | ||
| 11 | 41-895 | RELAY | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 12 | 44-5537 | SOCKET - relay | 1 | |
| 55-3230 | SCREW - socket | 1 | ||
| 55-5761 | LOCKWASHER | 3 | ||
| 55-295 | NUT | 3 | ||
| 13 | 41-1771 | FUSE - 12VDC (30 AMP) | 1 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 14 | 41-8554 | FUSE - standby (10 AMP) | 1 | |
| 15 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1769 | COVER - fuse | 1 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 55-5903 | SCREW - holder | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 16 | 40-1004 | HOLDER - fuse | 1 | |
| 17 | 55-2977 | SCREW - ground | 1 | |
| 55-2086 | FLATWASHER | 21 | ||
| 55-1800 | LOCKWASHER | 19 | ||
| 55-1801 | NUT | 2 | ||
| 18 | 55-5257 | CONNECTOR - harness grip | 2 | |
| 19 | 84-889 | HEATER KIT - ESPAR D8LC | 1 | |
| 20 | 81-419 | ELBOW | A/R | |
| 85-254 | CLAMP - elbow | 2 | ||
| 21 | 92-6233 | COVER - heater | 1 | |
| 99-8986 | STRIP - neoprene | A/R | ||
| 55-2977 | SCREW - cover | 20 | ||
| 55-2086 | FLATWASHER | 21 | ||
| 55-1800 | LOCKWASHER | 19 | ||
| 22 | 81-516 | FLANGE - outlet & inlet | 2 | |
| 23 | 89-521 | SCREEN - flange | 2 |
