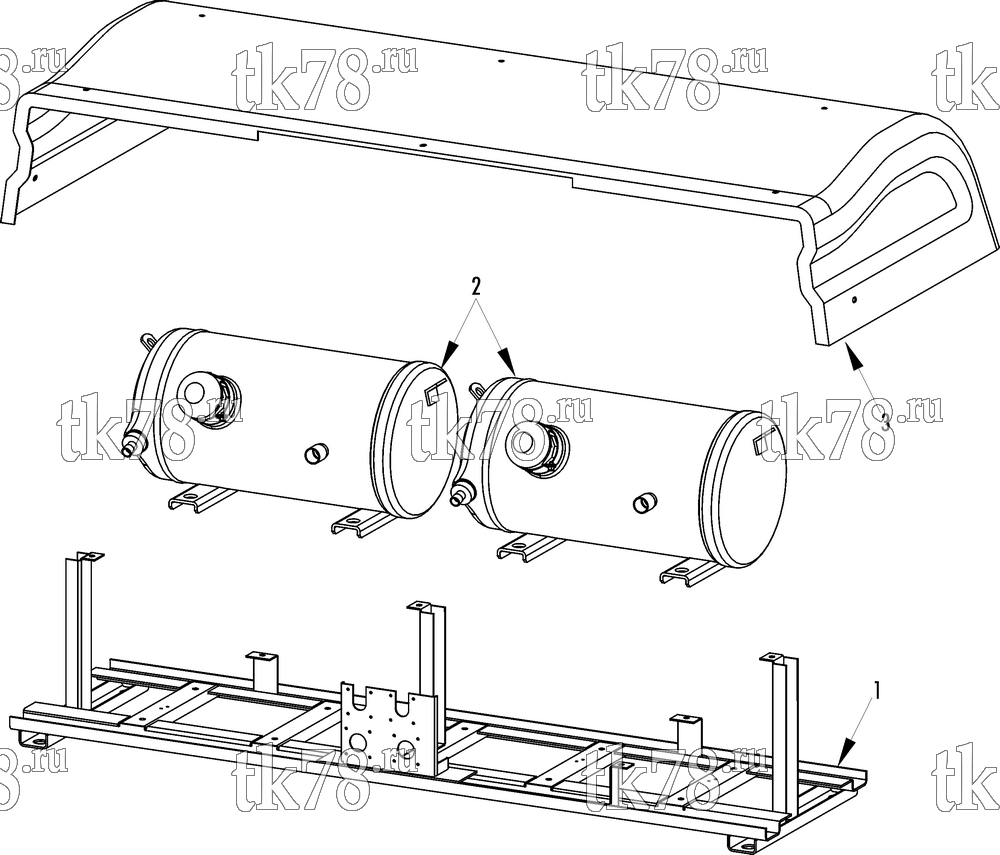

Установкa Thermo King E-Citi RT схема COMPRESSOR GROUP – 231G1
Обновление от: 2/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8105 | FRAME | 1 | |
| 2 | 102-941 | COMPRESSOR - scroll (230V, see 231F0) | 2 | |
| 102-942 | COMPRESSOR - scroll (380V, see 231F0) | 2 | ||
| 55-7362 | SCREW - compressor | 8 | ||
| 92-5838 | SPACER | 8 | ||
| 55-4931 | WASHER - special | 8 | ||
| 55-7348 | NUT | 8 | ||
| 3 | 98-8489 | COVER - rear | 1 | |
| 55-8993 | SCREW - cover | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 |
