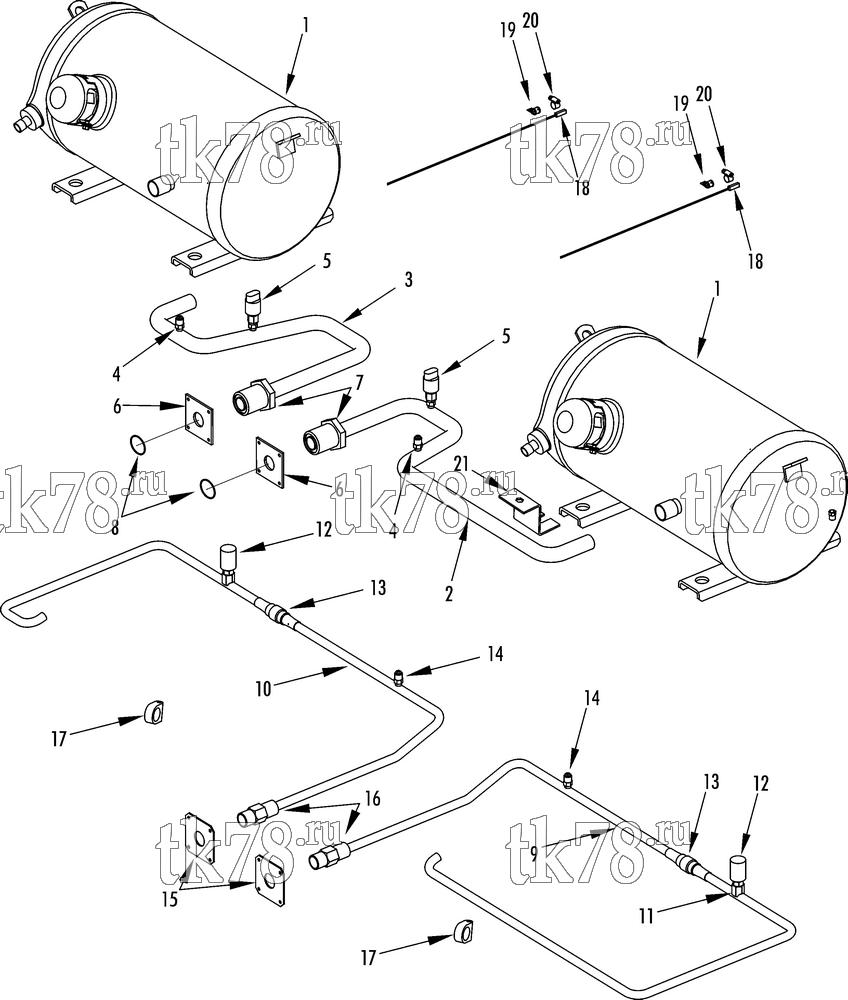

Установкa Thermo King E-Citi RT схема POWER PACK REFRIGERATION – 231F0
Обновление от: 2/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-941 | COMPRESSOR - scroll (230V) | 2 | |
| 102-942 | COMPRESSOR - scroll (380V) | 2 | ||
| 2 | 61-4455 | TUBE - suction (inc items 4, 5, 6 & 7) | 1 | |
| 3 | 61-4456 | TUBE - suction (inc items 4, 5, 6 & 7) | 1 | |
| 4 | 61-2059 | VALVE | 2 | |
| 5 | 44-9976 | SWITCH - lpco | 1 | |
| 44-9977 | SWITCH - only | |||
| 6 | 61-4457 | PLATE - holder | 1 | |
| 7 | 66-6840 | ADAPTER - bulkhead (#16) | 1 | |
| 55-5047 | RIVET - plate | 16 | ||
| 8 | 33-3166 | O-RING | 2 | |
| 9 | 61-4458 | TUBE - discharge (inc items 11 - 16) | 1 | |
| 10 | 61-4459 | TUBE - discharge (inc items 11 - 16) | 1 | |
| 11 | 66-3571 | FITTING - saddle | 1 | |
| 12 | 41-4486 | SWITCH - hpco | 1 | |
| 13 | 66-5722 | VALVE - check | 1 | |
| 41-4809 | SWITCH - only | 1 | ||
| 14 | 61-2059 | VALVE - service | 1 | |
| 15 | 92-7254 | HOLDER - fitting | 1 | |
| 16 | 61-3473 | ADAPTER - bulkhead | 1 | |
| 55-5047 | RIVET - holder | 8 | ||
| 17 | 55-7013 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 18 | 41-8407 | SWITCH - switch (120C) | 2 | |
| 19 | 55-3065 | CLAMP - switch | 5 | |
| 20 | 55-2069 | CLAMP - switch | 2 | |
| 55-6994 | SCREW - clamp | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-7170 | LOCKWASHER | 5 | ||
| 21 | 92-8305 | SUPPORT - tube | 1 |
