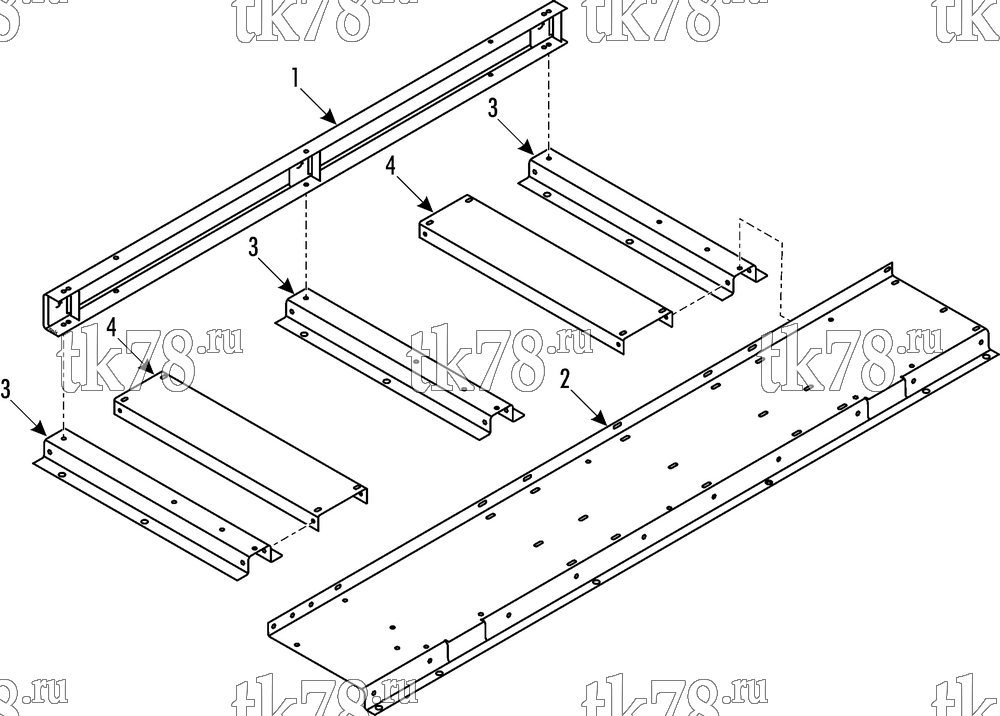

Установкa Thermo King Double Deck Hybrid Northern SPECS R134A LOW RA схема FRAME - BASE (LOW CHANNEL) – 229C2
Обновление от: 7/30/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8068 | CHANNEL - weldment | 1 | |
| 2 | 98-7172 | PLATE - base | 1 | |
| 3 | 98-7173 | SUPPORT - base | 3 | |
| 55-2683 | SCREW - support | 7 | ||
| 55-4931 | FLATWASHER | 14 | ||
| 55-4955 | NUT | 7 | ||
| 55-2683 | SCREW - support to plate | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-4931 | FLATWASHER | 2 | ||
| 55-8978 | NUT - captive | 2 | ||
| 4 | 98-7174 | GUIDE - channel | 2 | |
| 55-2957 | SCREW - guide | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8979 | NUT - captive | 8 |
