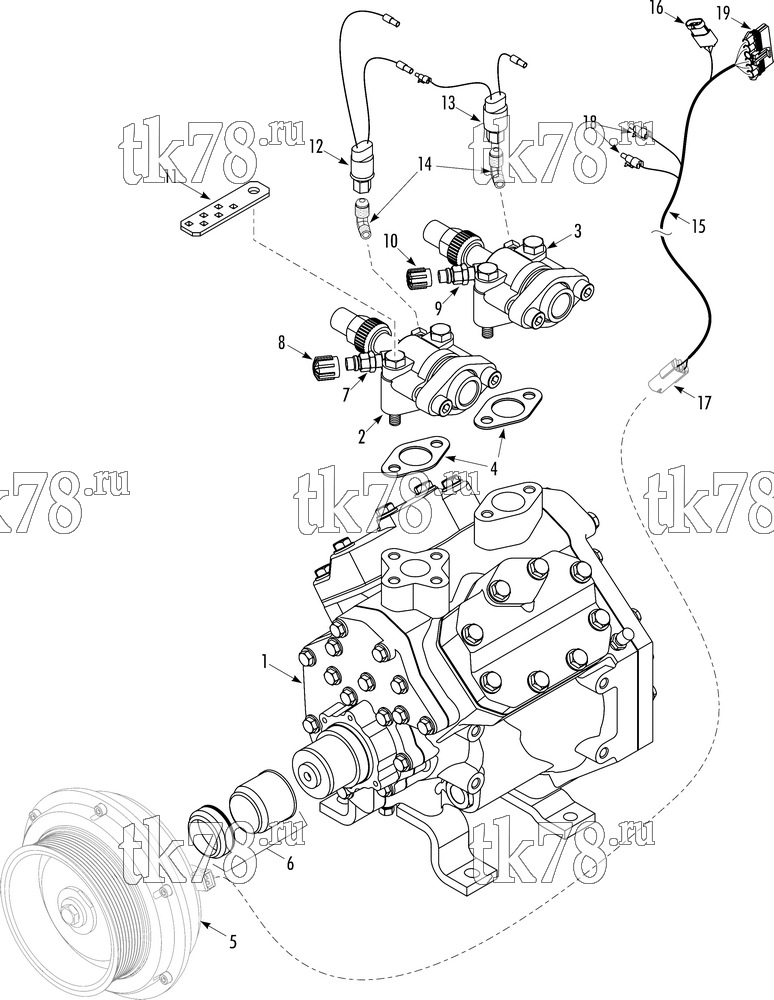

Установкa Thermo King D5-M7 схема COMPRESSOR GROUP BITZER (701717) – 236G4
Обновление от: 5/23/13
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 102-958 | COMPRESSOR - Bitzer (F400Y) | 1 |
| 2 | 22-1367 | VALVE - discharge | 1 |
| 3 | 22-1366 | VALVE - suction | 1 |
| 4 | 33-5133 | GASKET - valves | 2 |
| 5 | 107-375 | CLUTCH - assembly (poly-V, 9 Groove, 24v) | 1 |
| 42-1177 | COIL - clutch (24V) | 1 | |
| 6 | 22-1354 | KIT - shaft seal | 1 |
| 7 | 66-8086 | FITTING - discharge | 1 |
| 8 | 66-7182 | CAP - fitting, discharge | 1 |
| 9 | 66-7180 | FITTING - suction | 1 |
| 10 | 66-7183 | CAP - fitting, suction | 1 |
| 11 | 92-7769 | BRACKET - harness | 1 |
| 12 | 41-7955 | SWITCH - hpco (complete) | 1 |
| 41-7944 | SWITCH - hpco (switch only) | 1 | |
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 2 | |
| 13 | 41-4147 | SWITCH - lpco (complete) | 1 |
| 41-4530 | SWITCH - lpco (switch only) | 1 | |
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 1 | |
| 14 | 11-5513 | VALVE - assembly (90 deg) | 2 |
| 11-7777 | VALVE | 1 | |
| 55-8431 | ELBOW | 1 | |
| 15 | 41-7630 | HARNESS - compressor | 1 |
| 16 | 44-9569 | CONNECTOR - shroud (3-pin, see 115D14) | 1 |
| 17 | 44-5835 | CONNECTOR - shroud (2-pin, see 115D14) | 1 |
| 18 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 2 |
| 19 | 41-1789 | CONNECTOR - tower (6-pin) | 1 |
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 41-4206 | BUSBAR | 2 | |
| 44-5763 | DIODE | 1 | |
| 41-1787 | COVER - connector | 1 |
