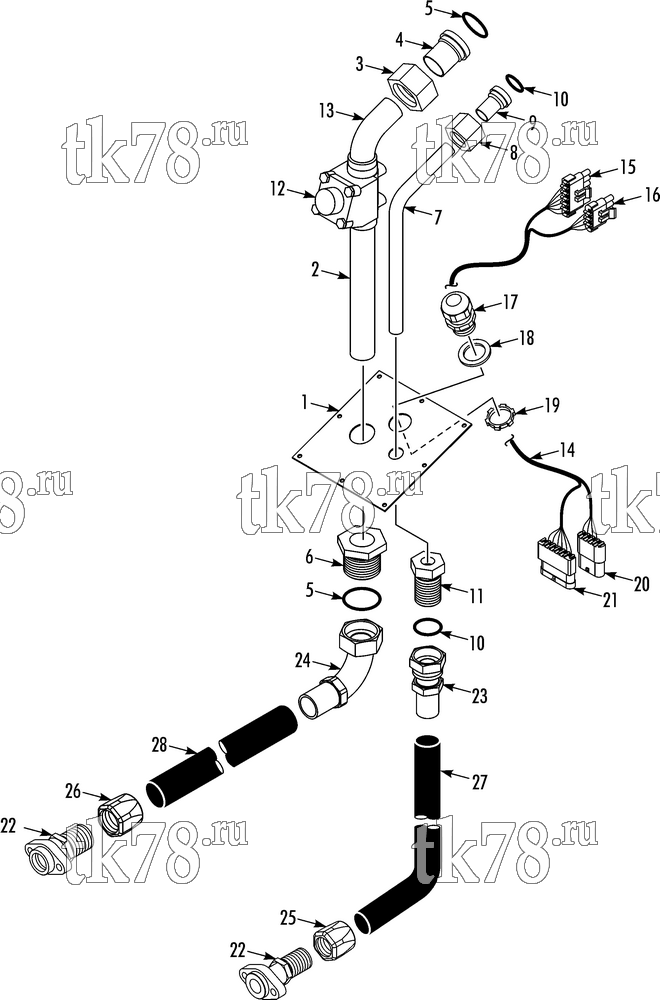

Установкa Thermo King D5-M7 схема ROOF MOUNT HOSE KIT (701722) – 236G3
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6054 | PLATE | 1 | |
| 2 | 61-4755 | TUBE - discharge (bottom) | 1 | |
| 3 | 55-5935 | NUT - shoulder | 1 | |
| 4 | 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 5 | 33-1777 | GASKET - o-ring (1-3/16 id) | 2 | |
| 6 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 7 | 61-5207 | TUBE - liquid | 1 | |
| 8 | 55-7054 | NUT - shoulder | 1 | |
| 9 | 55-7052 | SLEEVE - adapter (#12) | 1 | |
| 10 | 33-2193 | GASKET - o-ring (11/16 id) | 2 | |
| 11 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 12 | 66-5307 | VALVE - check (see 106C14) | 1 | |
| 13 | 61-4756 | TUBE - discharge (top) | 1 | |
| 14 | 45-2184 | HARNESS - cond to evap (for connectors see 115D14) | 1 | |
| 15 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 16 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 17 | 41-6950 | CONNECTOR - liq tite | 1 | |
| 18 | 41-5359 | WASHER - sealing | 1 | |
| 19 | 55-2635 | NUT - lock | 1 | |
| 20 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 21 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 22 | 51-1905 | FITTING - hose (2 bolt flange, straight #20) | 1 | |
| 51-1906 | FITTING - hose (2 bolt flange, straight #24) | 1 | ||
| 23 | 51-1907 | FITTING - hose (straight #20) | 1 | |
| 24 | 51-1908 | FITTING - hose (90 degree, #24) | 1 | |
| 25 | 51-1909 | FITTING - socket (#20) | 1 | |
| 26 | 51-1910 | FITTING - socket (#24) | 1 | |
| 27 | 61-4757 | HOSE - refrigerant (#20, 96 in) | 1 | |
| 28 | 61-4758 | HOSE - refrigerant (#24, 96 in) | 1 |
