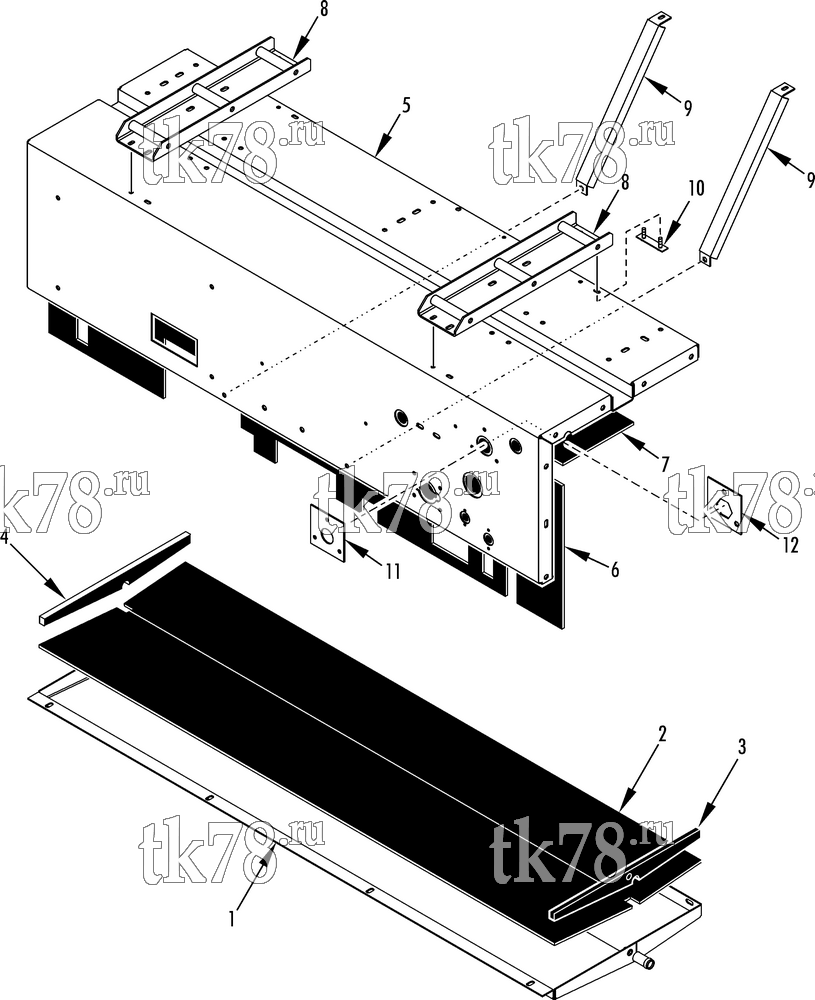

Установкa Thermo King D5-M7 схема EVAPORATOR STRUCTURAL COMPONENTS – 236G2
Обновление от: 8/24/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7655 | PAN - drain | 1 | |
| 55-2957 | SCREW - drain pan | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 2 | ||
| 2 | 92-6003 | INSULATION - drain pan | 1 | |
| 3 | 92-6004 | INSULATION - drain pan, side | 1 | |
| 4 | 92-6005 | INSULATION - drain pan, side | 1 | |
| 5 | 98-8291 | PANEL - top, evap | 1 | |
| 55-2957 | SCREW - top panel | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-8711 | INSERT | 18 | ||
| 6 | 92-6006 | INSULATION - panel, side | 1 | |
| 7 | 92-7945 | INSULATION - panel, top | 1 | |
| 8 | 92-6007 | SUPPORT - top panel | 2 | |
| 92-4646 | BOLTSTRIP - support | 8 | ||
| 55-4414 | WASHER - spl (0.281 id) | 16 | ||
| 55-4953 | NUT | 16 | ||
| 9 | 92-6008 | BRACKET - support, top panel | 2 | |
| 55-2957 | SCREW - bracket | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 10 | 92-4646 | BOLTSTRIP - support | 8 | |
| 55-4414 | WASHER - spl (0.281 id) | 16 | ||
| 55-4953 | NUT | 16 | ||
| 11 | 92-7946 | PLATE - liquid line support | 1 | |
| 55-2957 | SCREW | 2 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 18 | ||
| 12 | 92-7947 | PLATE - liquid line hex | 1 |
