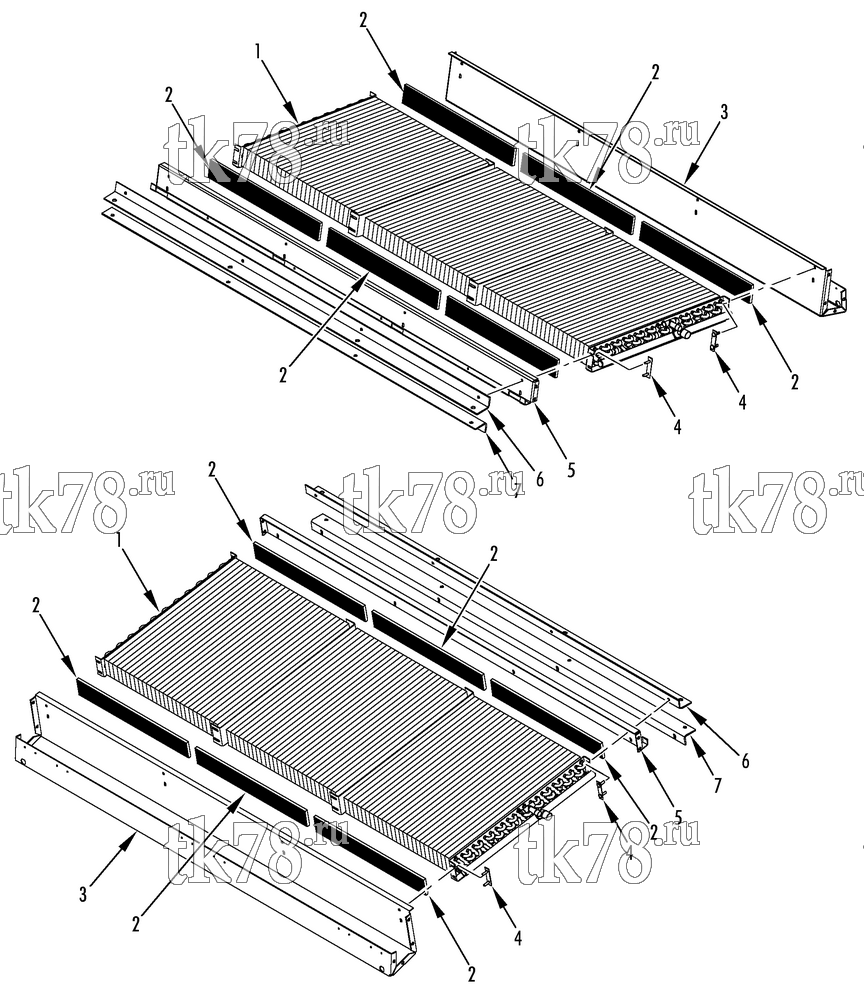

Установкa Thermo King D5-M7 схема CONDENSER MOUNTING COMPONENTS – 217E1
Обновление от: 10/9/06
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 67-2116 | COIL - condenser | 2 |
| 2 | 33-4348 | INSULATION - coil | 12 |
| 3 | 98-7680 | CHANNEL - support, condenser | 2 |
| 4 | 92-4646 | PLATE - boltstrip | 16 |
| 55-2086 | FLATWASHER | 32 | |
| 55-4953 | NUT | 32 | |
| 5 | 98-7119 | PLATE - support, coil | 2 |
| 55-8711 | INSERT | 24 | |
| 6 | 98-7120 | ANGLE - support, top | 2 |
| 7 | 98-7121 | ANGLE - support, bottom | 2 |
| 55-8979 | INSERT | 8 |
