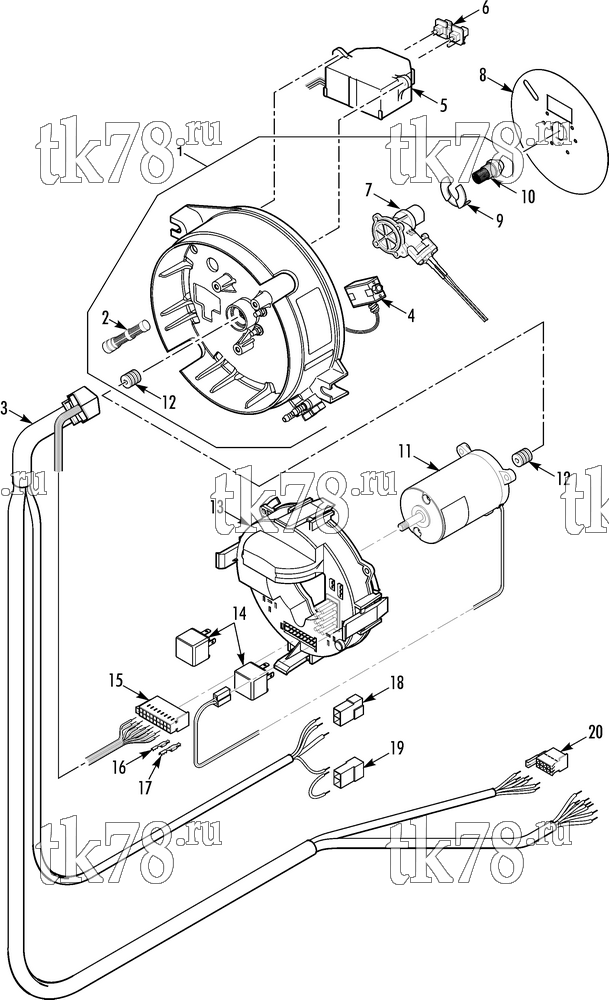

Установкa Thermo King D5-M5 схема HEATER ELECTRICAL COMPONENTS – 238F6
Обновление от: 8/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9060 | PUMP - 24V (complete with nozzle pre-heater, fuel nozzle, fuel filter and coupling) | 1 | |
| 2 | 13-1039 | STRAINER - fuel | 1 | |
| 3 | 41-9061 | HARNESS - cable | 1 | |
| 4 | 41-9062 | VALVE - solenoid | 1 | |
| 5 | 41-9063 | GENERATOR - ignition spark (24V, with check gauge) | 1 | |
| 6 | 41-9064 | ELECTRODE - ignition (with check gauge) | 1 | |
| 7 | 41-9065 | NOZZLE - pre-heater 24V (made of plastic, includes item 8) | 1 | |
| 8 | 41-9066 | PLATE - baffle | 1 | |
| 9 | 92-7948 | SPRING - retaining | 1 | |
| 10 | 41-9067 | NOZZLE - fuel atomizer | 1 | |
| 11 | 41-9068 | MOTOR - electric (24V, incl. coupling) | 1 | |
| 12 | 92-7949 | COUPLING | 1 | |
| 13 | 41-9069 | CONTROL UNIT | 1 | |
| 14 | 41-9070 | RELAY | 2 | |
| 15 | 41-9071 | SOCKET | 1 | |
| 16 | 41-9072 | TERMINAL (pack of 20) | 1 | |
| 17 | 41-9073 | TERMINAL (pack of 20) | 1 | |
| 18 | 41-9074 | SOCKET | 1 | |
| 19 | 41-9075 | SOCKET | 1 | |
| 20 | 41-9076 | SOCKET | 1 |
