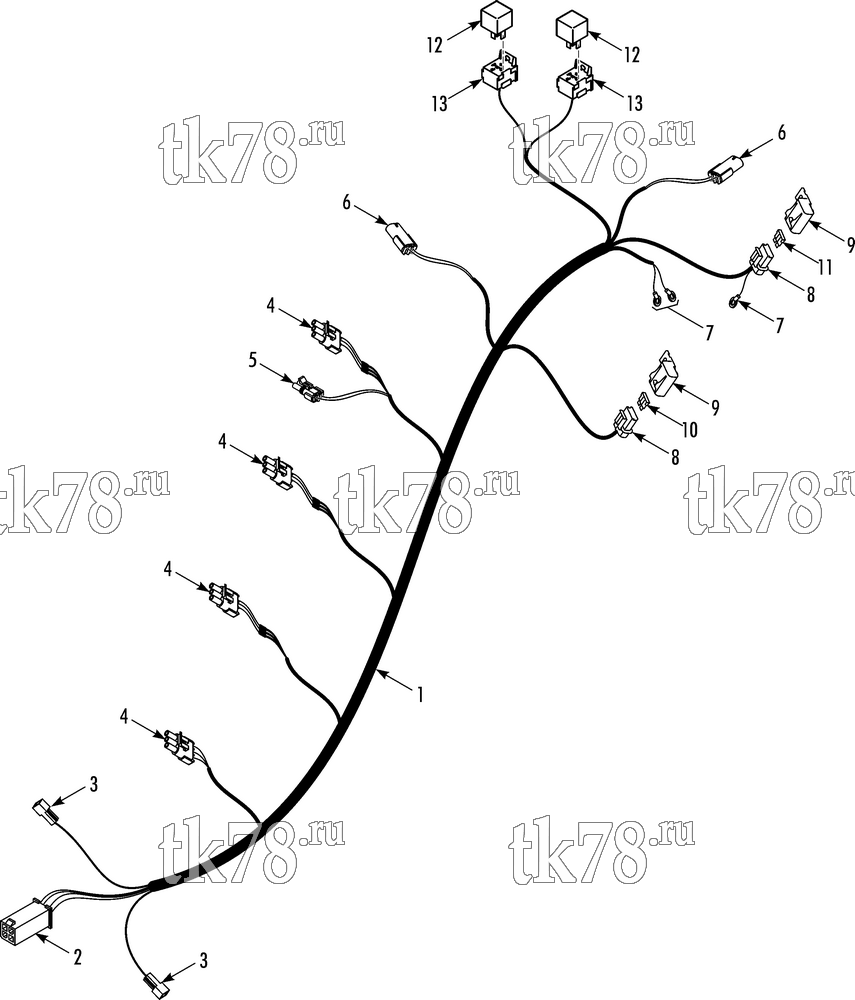

Установкa Thermo King D5-M5 схема HARNESS HEATER – 238F4
Обновление от: 8/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9048 | HARNESS - heater | 1 | |
| 2 | 41-8221 | PLUG - in line (4-pin) | 1 | |
| 41-1807 | TERMINAL - socket (18-24 ga) | 4 | ||
| 3 | 44-6264 | CONNECTOR - male (1-pin) | 2 | |
| 41-9049 | TERMINAL - fingrip (12 ga) | 2 | ||
| 4 | 44-6959 | CONNECTOR - tower (3-pin) | 4 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 3 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 3 | ||
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 6 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 7 | 41-8842 | TERMINAL - ring (16-22 ga, 3/8 red) | 3 | |
| 8 | 41-1770 | HOLDER - fuse | 2 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-9050 | TERMINAL - fuse | 2 | ||
| 9 | 41-1769 | COVER - fuse | 2 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 10 | 41-1932 | FUSE (1 amp) | 1 | |
| 11 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 12 | 41-896 | RELAY | 2 | |
| 13 | 44-5537 | SOCKET - relay | 2 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 4 | ||
| 55-2991 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 41-7681 | HEATSHRINK (1-1/2 in) | A/R | ||
| 55-2332 | BANDWRAP (.75 dia) | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R |
